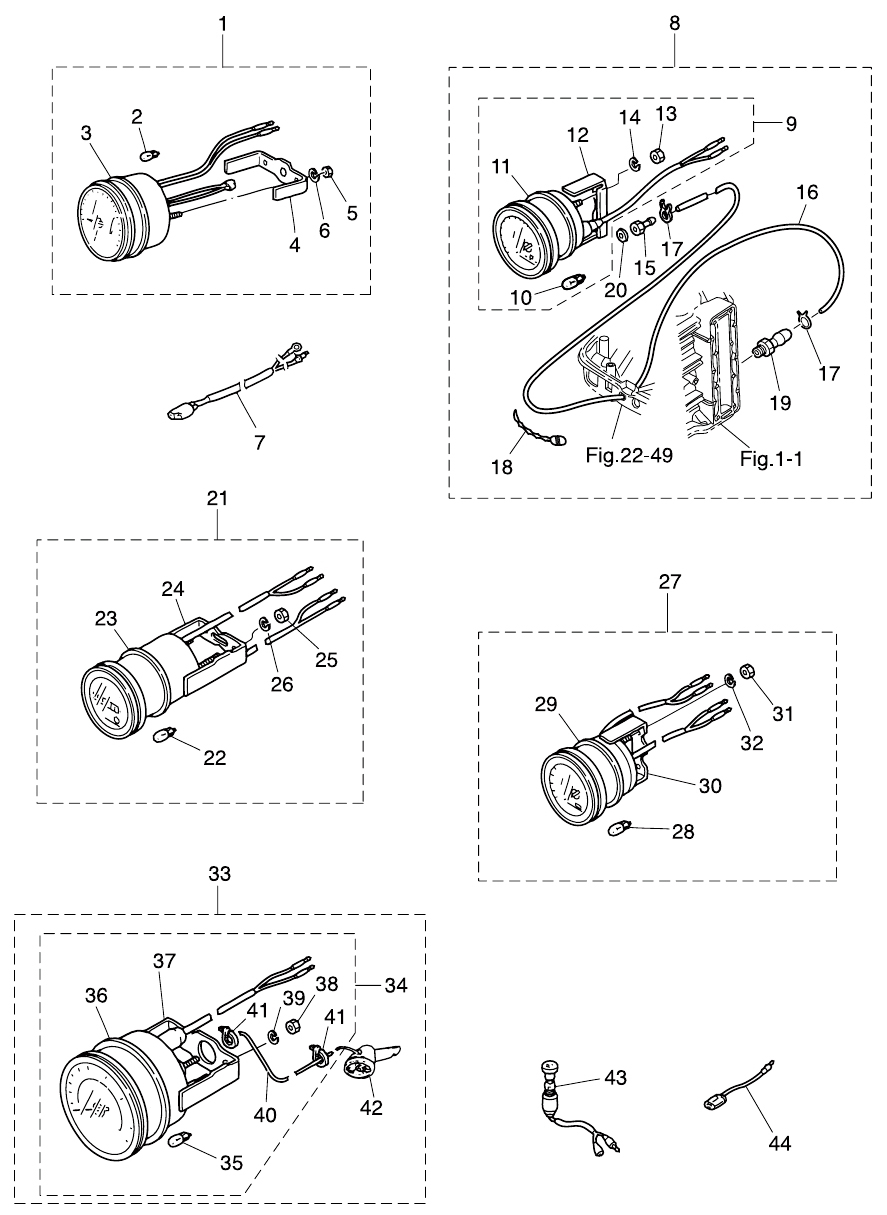

29. OPTIONAL PARTS (1)

Click Here for Microfiche Usage Tip
(1) TACHOMETER (BLACK)(1) TACHOMETER (WHITE)(1) TACHOMETER ASSY(2) METER BULB 12V-1.8W(3) METER DAMPER(4) FITTING PLATE(5) NUT(6) SPRING WASHER(7) TACHOMETER LEAD WIRE L=2000(8) WATER PRESSURE METER (BLACK)(8) WATER PRESSURE METER (WHITE)(8) WATER PRESSURE METER KIT(9) WATER PRESSURE METER ASSY(10) METER BULB 12V-1.7W(11) METER DAMPER(12) FITTING PLATE(13) NUT(14) SPRING WASHER(15) WATER PRESSURE METER NIPPLE(16) HOSE(17) CLIP o10(17) CLIP o10(18) LEAD WIRE BAND 100(19) NIPPLE 8-6.8(20) GASKET 2-8-1(21) HOUR METER (BLACK)(21) HOUR METER (WHITE)(21) HOUR METER ASSY(22) METER BULB 12V-1.7W(23) METER DAMPER(24) FITTING PLATE(25) NUT(26) SPRING WASHER(27) VOLTMETER (BLACK)(27) VOLTMETER (WHITE)(27) VOLTMETER ASSY(28) METER BULB 12V-1.7W(29) METER DAMPER(30) FITTING PLATE(31) NUT(32) SPRING WASHER(33) SPEEDOMETER (BLACK)(33) SPEEDOMETER (WHITE)(33) SPEEDOMETER KIT (50MPH)(33) SPEEDOMETER KIT (75MPH)(34) SPEEDOMETER ASSY (50MPH)(34) SPEEDOMETER ASSY (75MPH)(35) METER BULB 12V-1.8W(36) METER DAMPER(37) FITTING PLATE(38) NUT(39) SPRING WASHER(40) SPEEDOMETER TUBE L=6000(41) SPEEDOMETER BAND(41) SPEEDOMETER BAND(42) SPEEDOMETER SENSOR(43) METER LAMP SWITCH(44) ASSIST CORD (BLU) L=200(44) ASSIST CORD (BLK) L=200(44) ASSIST CORD (RED) L=200



Parts List
2013 :: 50 HP :: TLDI Tohatsu MD50B2 :: OPTIONAL PARTS (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(1) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(1) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 FOR JAPAN EF TYPE $0.00 1 Sold Out View More Details
(2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3B7-72530-2 $0.00 1 Sold Out View More Details
(3) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3B7-72530-2 $3.27 1
(4) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3B7-72530-2 $25.33 1
(5) NUT 9301030500M 930103-0500 FOR 3B7-72530-2 $0.86 2
(6) SPRING WASHER 9413030500M 941303-0500 FOR 3B7-72530-2 $0.90 2
(7) TACHOMETER LEAD WIRE 3T5725390M 3T5-72539-0 FOR EF TYPE $44.28 1
(8) WATER PRESSURE METER KIT 3GF725980M 3GF725980M $103.50 1
(8) WATER PRESSURE METER KIT 3GL725980M 3GL725980M $103.50 1
(8) WATER PRESSURE METER KIT 3E3725270M 3E3-72527-0 $0.00 1 Sold Out View More Details
(9) WATER PRESSURE METER 3E0725980M 3E0-72598-0 FOR 3E3-72527-0 $0.00 1 Sold Out View More Details
(10) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E3-72527-0 $0.00 1 Sold Out View More Details
(11) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E3-72527-0 $2.68 1
(12) FITTING PLATE 3B7726630M 3B7-72663-0 FOR 3E3-72527-0 $19.58 1 Sold Out View More Details
(13) NUT 9302030500M 930203-0500 FOR 3E3-72527-0 $0.60 2
(14) SPRING WASHER 9413030500M 941303-0500 FOR 3E3-72527-0 $0.90 2
(15) WATER PRESSURE METER NIPPLE 3B7726410M 3B7-72641-0 FOR 3E3-72527-0 $0.00 1 Sold Out View More Details
(16) HOSE 98AB506000M 98AB-506000 FOR 3E3-72527-0 / 98AB-501000 X6 $11.41 1
(17) CLIP ø10 338022150M 338-02215-0 FOR 3E3-72527-0 $1.41 2
(18) LEAD WIRE BAND 336760910M 336-76091-0 FOR 3E3-72527-0 $1.01 2
(19) NIPPLE M8-6.8 309011360M 309-01136-0 FOR 3E3-72527-0 $6.90 1
(20) GASKET 2-8-1 121331590M 121-33159-0 FOR 3E3-72527-0 $0.97 1
(21) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(21) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(21) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(22) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72524-0 $0.00 1 Sold Out View More Details
(23) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72524-0 $2.68 1
(24) FITTING PLATE 3B7726640M 3B7-72664-0 FOR 3E0-72524-0 $19.58 1 Sold Out View More Details
(25) NUT 9302030400M 930203-0400 FOR 3E0-72524-0 $0.00 2 Sold Out View More Details
(26) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72524-0 $0.90 2
(27) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(27) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(27) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(28) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72529-0 $0.00 1 Sold Out View More Details
(29) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72529-0 $2.68 1
(30) FITTING PLATE 3B7726620M 3B7-72662-0 FOR 3E0-72529-0 $19.58 1 Sold Out View More Details
(31) NUT 9302030400M 930203-0400 FOR 3E0-72529-0 $0.00 2 Sold Out View More Details
(32) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72529-0 $0.90 2
(33) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(33) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(33) SPEEDOMETER 50MPH KIT 3E0725220M 3E0-72522-0 $0.00 1 Sold Out View More Details
(33) SPEEDOMETER 75MPH KIT 3E0726440M 3E0-72644-0 $0.00 1 Sold Out View More Details
(34) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 FOR 3E0-72522-0 & 3E0-72644-0 $0.00 1 Sold Out View More Details
(34) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 FOR 3E0-72522-0 & 3E0-72644-0 $0.00 1 Sold Out View More Details
(35) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3E0-72522-0 & 3E0-72644-0 $0.00 1 Sold Out View More Details
(36) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3E0-72522-0 & 3E0-72644-0 $3.27 1
(37) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3E0-72522-0 & 3E0-72644-0 $25.33 1
(38) NUT 9302030500M 930203-0500 FOR 3E0-72522-0 & 3E0-72644-0 $0.60 2
(39) SPRING WASHER 9413030500M 941303-0500 FOR 3E0-72522-0 & 3E0-72644-0 $0.90 2
(40) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 FOR 3E0-72522-0 & 3E0-72644-0 $27.66 1 Sold Out View More Details
(41) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 FOR 3E0-72522-0 & 3E0-72644-0 $2.07 2 Sold Out View More Details
(42) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 FOR 3E0-72522-0 & 3E0-72644-0 $52.86 1 Sold Out View More Details
(43) METER LAMP SWITCH 353725211M 353-72521-1 FOR EP TYPE $19.47 1
(44) ASSIST CORD (BLUE) 353725470M 353-72547-0 FOR EP TYPE $5.92 1
(44) ASSIST CORD (BLACK) 353725480M 353-72548-0 FOR EP TYPE $5.92 1
(44) ASSIST CORD (RED) 353725460M 353-72546-0 FOR EP TYPE $5.92 1
