11. ELECTRIC PARTS (STARTER MOTOR)

Click Here for Microfiche Usage Tip

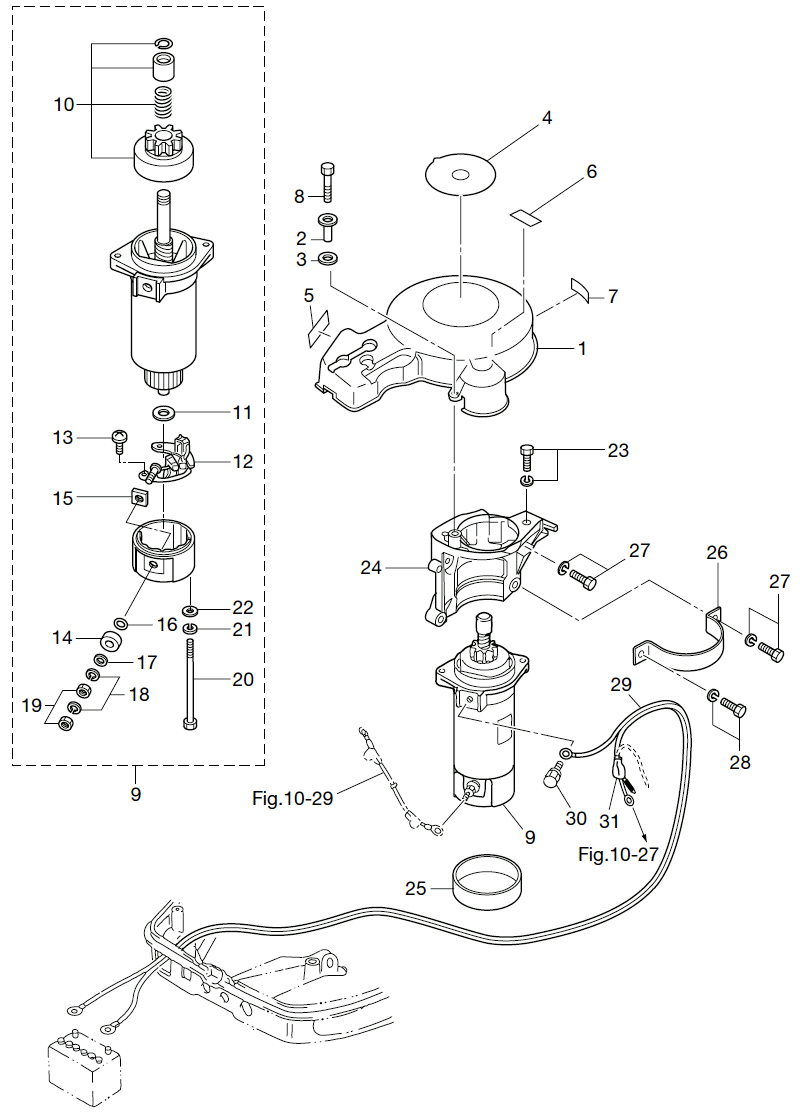

(1) RING GEAR COVER(2) COLLAR 9.1-16-10.8(3) RUBBER MOUNT 9-16-4.3(4) CAUTION DECAL (B)(5) FUSE DECAL(6) PRESSURE DECAL(7) SPARK PLUG DECAL (IZFR6Q)(8) BOLT(9) STARTER MOTOR ASSY(9) STARTER MOTOR ASSY(10) PINION ASSY(11) WASHER(12) BRUSH HOLDER ASSY(13) SCREW(14) BUSHING(15) BUSHING(16) O-RING(17) WASHER(18) SPRING WASHER(19) NUT(20) BOLT(21) SPRING WASHER(22) WASHER(23) BOLT(24) BRACKET(25) DAMPER(26) STARTER MOTOR BAND(27) BOLT(27) BOLT(28) BOLT(29) BATTERY CABLE L=3000(30) BOLT(31) TERMINAL CAP



Parts List
2013 :: 50 HP :: TLDI Tohatsu MD50B2 :: ELECTRIC PARTS (STARTER MOTOR)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RING GEAR COVER 3T5063010M 3T5-06301-0 $19.84 1
(2) COLLAR 3GF063040M 3GF-06304-0 $3.39 3
(3) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(4) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(5) FUSE DECAL 3Y9721940M 3Y9-72194-0 $1.55 1
(6) PRESSURE DECAL 3T5721860M 3T5-72186-0 $3.97 1 Sold Out View More Details
(7) SPARK PLUG DECAL (IZFR6Q) 3FW720260M 3FW-72026-0 $1.44 1
(8) BOLT 9101030625M 910113-0625 $0.95 3
(9) STARTER MOTOR 3C8760101M 3C8-76010-1 $491.52 1 Sold Out View More Details
(10) PINION ASSY 3C8760150M 3C8-76015-0 $167.77 1
(11) WASHER 3C8750150M 3C8-75015-0 $5.69 1
(12) BRUSH HOLDER ASSY 3C8750140M 3C8-75014-0 $59.83 1
(13) SCREW 9215216408M 921521-6408 $0.63 2
(14) BUSHING 1 3C8750160M 3C8-75016-0 $3.39 1
(15) BUSHING 2 3C8750170M 3C8-75017-0 $3.39 1
(16) O-RING 3C8750180M 3C8-75018-0 $1.21 1
(17) WASHER 9401030600M 940103-0600 $0.70 1
(18) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(19) NUT 9302030600M 930203-0600 $0.00 2 Sold Out View More Details
(20) BOLT 3C8750190M 3C8-75019-0 $8.97 2
(21) SPRING WASHER 9413210500M 941321-0500 $0.00 2 Sold Out View More Details
(22) WASHER 9402210500M 940221-0500 $0.00 2 Sold Out View More Details
(23) BOLT 9101036825M 910103-6825 $1.76 2
(24) STARTER MOTOR BRACKET 3T5B051010 3T5B05101-0 $0.00 1 Sold Out View More Details
(25) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 $3.39 1 Sold Out View More Details
(26) STARTER MOTOR BAND 3C8760090M 3C8-76009-0 $7.59 1
(27) BOLT 9101036825M 910103-6825 $1.76 4
(28) BOLT 9101036820M 910103-6820 $1.55 1
(29) BATTERY CABLE L=3000 3B7761202M 3B7-76120-0 $140.39 1
(30) BOLT 9101036616M 910103-6616 $1.20 1
(31) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
