6. FUEL FEED PUMP

Click Here for Microfiche Usage Tip

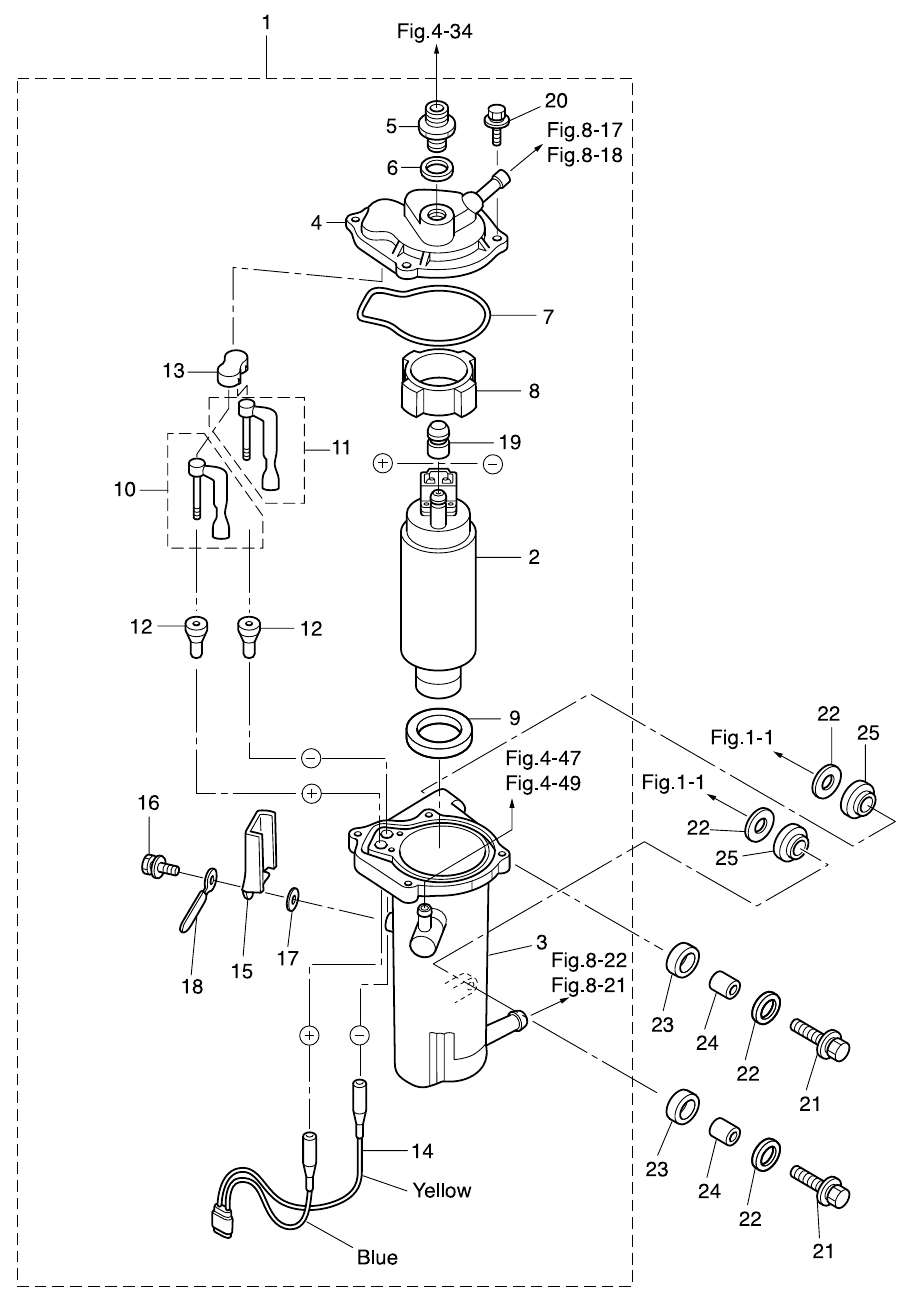

(1) FUEL FEED PUMP ASSY(2) FUEL FEED PUMP(3) CASE ASSY(4) UPPER CASE ASSY(5) ADAPTER(6) WASHER 10.2-17-2(7) GASKET(8) GROMMET(9) GROMMET(10) CABLE TERMINAL ASSY (POSITIVE)(11) CABLE TERMINAL ASSY (NEGATIVE)(12) GROMMET(12) GROMMET(13) GROMMET(14) CORD(15) CORD COVER(16) BOLT(17) WASHER(18) CLAMP 6.5-47.5P(19) GROMMET(20) BOLT(21) BOLT(21) BOLT(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(23) RUBBER MOUNT 8.5-12-2(23) RUBBER MOUNT 8.5-12-2(24) SPACER 6.2-9-15.7(24) SPACER 6.2-9-15.7(25) RUBBER MOUNT 8.5-18-7(25) RUBBER MOUNT 8.5-18-7



Parts List
2013 :: 50 HP :: TLDI Tohatsu MD50B2 :: FUEL FEED PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FFP (FUEL FEED PUMP) ASSY 3T5043100M 3T5-04310-0 FFP $713.63 1
(2) FUEL FEED PUMP 3T5043020M 3T5-04302-0 $512.21 1
(3) FFP CASE 3T5043110M 3T5-04311-0 $73.29 1
(4) FFP CASE (UPPER) 3T5043120M 3T5-04312-0 $22.91 1
(5) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(6) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(7) O-RING 3T5041160M 3T5-04116-0 $1.71 1
(8) FFP GROMMET (UPPER) 3T5043130M 3T5-04313-0 UPPER $2.59 1
(9) FFP GROMMET (LOWER) 3T5043140M 3T5-04314-0 LOWER $1.71 1
(10) CABLE TERMINAL (POSITIVE) 3T5042360M 3T5-04236-0 $13.74 1
(11) CABLE TERMINAL (NEGATIVE) 3T5042370M 3T5-04237-0 $13.74 1
(12) CABLE TERMINAL GROMMET 3T5043170M 3T5-04317-0 $1.22 2
(13) CABLE TERMINAL GROMMET (UPPER) 3T5043180M 3T5-04318-0 $1.04 1
(14) FFP CORD 3T5042380M 3T5-04238-0 $75.49 1
(15) FFP CORD COVER 3T5042390M 3T5-04239-0 $1.56 1
(16) BOLT 9101035512M 9101E3-5512 $0.00 1 Sold Out View More Details
(17) WASHER 9401030500M 940103-0500 $0.53 1
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(19) PIPE GROMMET 3T5043190M 3T5-04319-0 $1.22 1
(20) BOLT 9101036518M 910103-6518 $0.00 4 Sold Out View More Details
(21) BOLT 9101036630M 910103-6630 $1.30 2
(22) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(23) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 2
(24) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(25) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 2
