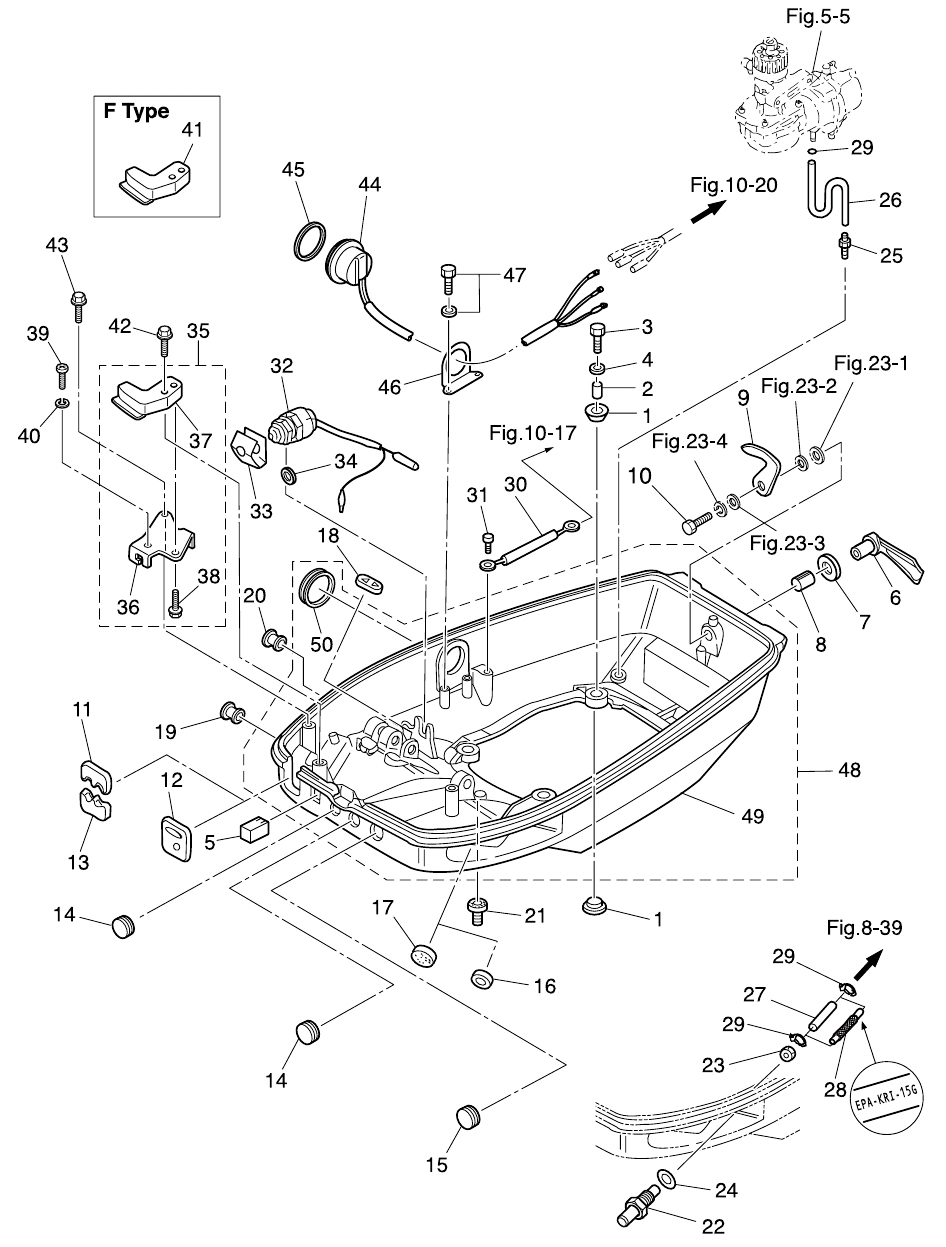

22. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) MOUNT 8.5-14-2.5(1) MOUNT 8.5-14-2.5(2) SPACER 6.2-9-15.7(3) BOLT(4) WASHER 6.5-21-1(5) PLUG(6) HOOK LEVER(7) SEAL RING 13.8-22-3.7(8) HOOK LEVER BUSHING(9) COVER HOOK(10) BOLT(11) GROMMET(12) GROMMET(13) GROMMET(14) GROMMET 17-2.7(14) GROMMET 17-2.7(15) GROMMET(16) GROMMET 18-2.5(17) GROMMET 17-2.7(18) GROMMET(18) GROMMET(19) GROMMET(20) PLUG(21) GROMMET 17-3(22) FUEL CONNECTOR (MALE)(23) NUT 10-P1.25(24) GASKET 10.2-16-0.5(25) NIPPLE(26) HOSE(27) HOSE(28) FUEL HOSE W/PROTECTOR L=260(29) CLIP o10(29) CLIP o10(29) CLIP o10(30) GROUND CABLE L=270(31) BOLT(32) NEUTRAL SWITCH(33) NEUTRAL SWITCH ACTUATOR(34) WASHER 12.5-24-1(35) CABLE CLIP BRACKET ASSY(36) CLUTCH CABLE CLIP BRACKET(37) CLAMP(38) BOLT(39) SCREW 4-20 P0.5(40) SPRING WASHER(41) CLAMP(42) BOLT(43) BOLT(44) PTT SWITCH ASSY(45) GASKET(46) PTT SWITCH ASSY BRACKET(47) BOLT(48) BOTTOM COWL W/GROMMET(49) BOTTOM COWL(50) GROMMET



Parts List
2013 :: 50 HP :: TLDI Nissan NSD50B2 :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(2) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(3) BOLT 9101E30630M 910114-5630 $1.21 4
(4) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(5) PLUG 3T5671500M 3T5-67150-0 $1.41 1
(6) HOOK LEVER 3C8Q671410 3C8Q67141-0 $18.98 1 Sold Out View More Details
(7) SEAL RING 338671470M 338-67147-0 $1.85 1
(8) BUSHING 369671050M 369-67105-0 $2.07 1
(9) COVER HOOK 3C8671421M 3C8-67142-1 $13.69 1
(10) BOLT 9101030612M 910113-0612 $0.84 1
(11) REMOTE CONTROL CABLE GROMMET 3C8837320M 3C8-83732-0 UPPER / FOR EP TYPE $2.07 1
(12) BATTERY CABLE GROMMET 3T5671620M 3T5-67162-0 FOR EF TYPE $6.84 1
(13) CORD GROMMET 3C8761161M 3C8-76116-1 LOWER / FOR EP TYPE $2.13 1
(14) GROMMET 17-2.7 345671170M 345-67117-0 FOR PTT MODEL $2.31 2 Sold Out View More Details
(15) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.38 1
(16) GROMMET 18-2.5 338671630M 338-67163-0 PTT CORD / FOR PTT MODEL $2.07 1
(17) GROMMET 17-2.7 345671170M 345-67117-0 FOR MANUAL & GAS ASSIST MODEL $2.31 3 Sold Out View More Details
(18) THROTTLE CABLE GROMMET 3C8636210M 3C8-63621-0 THROTTLE WIRE / FOR EF TYPE $3.39 1
(18) THROTTLE HOLE GROMMET 3C8636240M 3C8-63624-0 THROTTLE WIRE HOLE / FOR EP TYPE $3.39 1
(19) GROMMET 3B2671870M 3B2-67187-0 THROTTLE SHAFT HOLE / FOR EP TYPE $3.27 1
(20) PLUG 3B7010460M 3B7-01046-0 $1.41 1
(21) GROMMET 17 - 3 345662260M 345-66226-0 SHIFT ROD $3.91 1 Sold Out View More Details
(22) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(23) NUT 10-P 1.25 332702610M 332-70261-0 $2.58 1
(24) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
(25) WATER NIPPLE 3T1011380M 3T1-01138-0 $2.94 1
(26) RUBBER HOSE 98AB50250M 98AB-5-0250 AIR COMP-NIPPLE / 98AB-501000 $11.41 1
(27) RUBBER HOSE 98AB50260M 98AB-5-0260 CONNECTOR-FUEL FILTER / STD 98AB-501000 $11.41 1
(28) FUEL HOSE W/PROTECTOR L=260 3GF021650M 3GF-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $22.17 1
(29) CLIP ø10 338022150M 338-02215-0 $1.41 2
(30) GROUND CABLE 3N4761421M 3N4-76142-1 CYLINDER BLOCK -BOTTOM COWL $4.78 1 Sold Out View More Details
(31) BOLT 9101036612M 910103-6612 $1.16 1
(32) NEUTRAL SWITCH 398760800M 398-76080-0 FOR EF TYPE $41.45 1
(33) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF TYPE $4.02 1
(34) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 FOR EF TYPE $2.31 1
(35) CABLE CLIP BRACKET ASSY 3C8Q837370 3C8Q83737-0 FOR EP TYPE $46.32 1
(36) CLUTCH CABLE CLIP BRACKET 3Z5837380M 3Z5-83738-0 FOR EP TYPE $22.17 1
(37) CLAMP 3C8Q761180 3C8Q76118-0 FOR EP TYPE $59.85 1
(38) BOLT 9101035612M 910103-5612 FOR EP TYPE $1.07 1
(39) SCREW 4-20 P0.5 3C8838210M 3C8-83821-0 FOR EP TYPE $2.33 1
(40) SPRING WASHER 9413030400M 941303-0400 FOR EP TYPE $0.90 1
(41) CLAMP 3C8Q761180 3C8Q76118-0 FOR EF TYPE $59.85 1
(42) BOLT 9101035625M 910103-5625 $1.47 1
(43) BOLT 9101035616M 910103-5616 FOR EP TYPE $1.15 1
(44) PTT SWITCH ASSY 3GF726150M 3GF-72615-0 FOR EPTO MODEL $162.66 1
(45) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 FOR EPTO MODEL / PTT SWITCH $3.27 1
(46) PTT SWITCH ASSY BRACKET 3GF726170M 3GF-72617-0 FOR EPTO MODEL $0.00 1 Sold Out View More Details
(47) BOLT 9101036614M 910103-6614 FOR EPTO MODEL $1.09 2
(48) BOTTOM COWL W/GROMMET 3C8Q671100 3C8Q67110-0 $369.09 1
(49) BOTTOM COWL 3C8Q671001 3C8Q67100-1 $0.00 1 Sold Out View More Details
(50) GROMMET 3F3726180M 3F3-72618-0 EXCEPT EPTO MODEL $3.91 1
