28. ACCESSORIES

Click Here for Microfiche Usage Tip

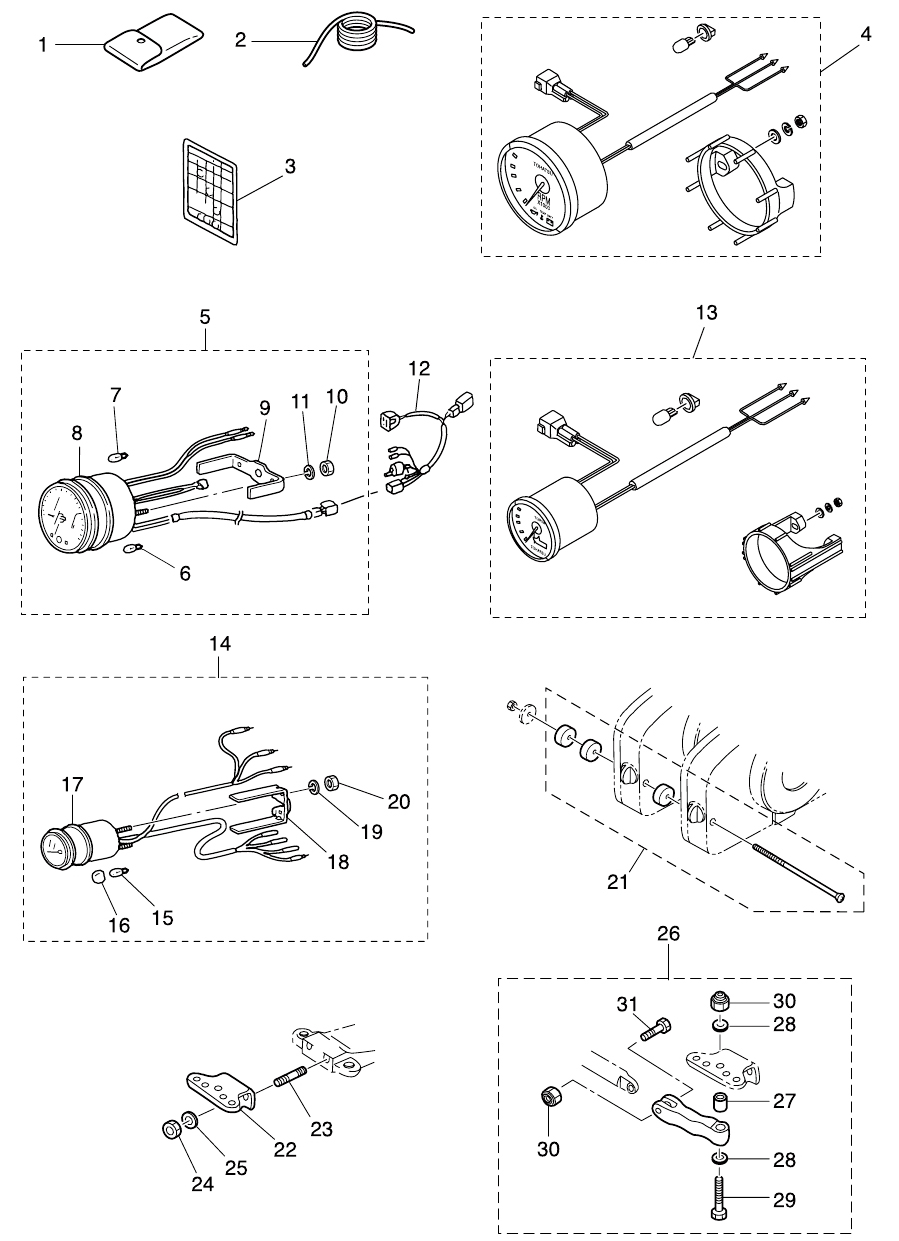

(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) BUZZER CAUTION DECAL(4) TACHOMETER (BLACK)(4) TACHOMETER (WHITE)(5) TACHOMETER W/OIL LAMP(6) OIL BULB 12V-1.7W(7) METER BULB 12V-1.8W(8) METER DAMPER(9) FITTING PLATE(10) NUT(11) SPRING WASHER(12) METER LEAD WIRE L=8000(13) TRIM METER (BLACK)(13) TRIM METER (WHITE)(14) TRIM METER ASSY(15) METER BULB 12V-1.7W(16) METER BULB CAP(17) METER DAMPER(18) FITTING PLATE(19) SPRING WASHER(20) NUT(21) TWIN REMOTE CONTROL KIT(22) STEERING HOOK(23) STUD 10-25 P1.25(24) NYLON NUT 10-P1.25(25) WASHER(26) CLEVIS ASSY(27) COLLAR 9.6-13-20.5(28) WASHER 9.6-18-2(28) WASHER 9.6-18-2(29) BOLT 3/8-43(30) NYLON NUT 3/8-24UNF(30) NYLON NUT 3/8-24UNF(31) BOLT 3/8-35



Parts List
2013 :: 40 HP :: TLDI Tohatsu MD40B2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(4) TACHOMETER (BLACK) 3GF726470M 3GF726470M FARIA / FOR USA & EU EP TYPE $0.00 1 Sold Out View More Details
(4) TACHOMETER (WHITE) 3GL726470M 3GL726470M FARIA / FOR USA & EU EP TYPE $0.00 1 Sold Out View More Details
(5) TACHOMETER 3Z5726401M 3Z5-72640-1 FOR JAPAN EP TYPE $0.00 1 Sold Out View More Details
(6) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3Z5-72640-1 $3.27 3
(7) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3Z5-72640-1 $0.00 1 Sold Out View More Details
(8) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3Z5-72640-1 $3.27 1
(9) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3Z5-72640-1 $25.33 1
(10) NUT 9302030500M 930203-0500 FOR 3Z5-72640-1 $0.60 2
(11) SPRING WASHER 9413030500M 941303-0500 FOR 3Z5-72640-1 $0.90 2
(12) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 FOR EP TYPE $201.55 1
(13) TRIM METER KIT 3GF725710M 3GF725710M FARIA / FOR USA & EU EP TYPE $98.67 1
(13) TRIM METER KIT 3GL725710M 3GL725710M FARIA / FOR USA & EU EP TYPE $98.67 1
(14) TRIM METER 3T1725710M 3F3-72574-1 FOR JAPAN EP TYPE $0.00 1 Sold Out View More Details
(15) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 FOR 3T1-72571-0 $3.85 1 Sold Out View More Details
(16) METER BULB CAP 3T1726530M 3T1-72653-0 FOR 3T1-72571-0 $2.40 1 Sold Out View More Details
(17) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3T1-72571-0 $2.68 1
(18) FITTING PLATE 3T1726650M 3T1-72665-0 FOR 3T1-72571-0 $12.61 1 Sold Out View More Details
(19) SPRING WASHER 9413030400M 941303-0400 FOR 3T1-72571-0 $0.90 2
(20) NUT 9302030400M 930203-0400 FOR 3T1-72571-0 $0.00 2 Sold Out View More Details
(21) TWIN REMOTE CONTROL BOX KIT 3A3813010M 3A3-81301-0 FOR EP TYPE $52.86 1
(22) STEERING HOOK 3E3848300M 3E3-84830-0 FOR EP TYPE $33.06 1
(23) STUD 10-25 P1.25 3E3620970M 3E3-62097-0 FOR EP TYPE $6.99 2
(24) NYLON NUT 10-P1.25 3C8620980M 3C8620980M FOR EP TYPE $6.21 2
(25) WASHER 9402031000M 940203-1000 FOR EP TYPE $1.04 2 Sold Out View More Details
(26) CREVICE ASSY 3C8Q849600 3C8Q84960-0 FOR EP TYPE $303.28 1
(27) COLLAR 9.6-13-20.5 3C8849620M 3C8-84962-0 $6.39 1
(28) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 2
(29) BOLT 3/8-43 3C8849630M 3C8-84963-0 $4.83 1
(30) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(31) BOLT 3/8-35 3C8849640M 3C8-84964-0 $18.38 1
