2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

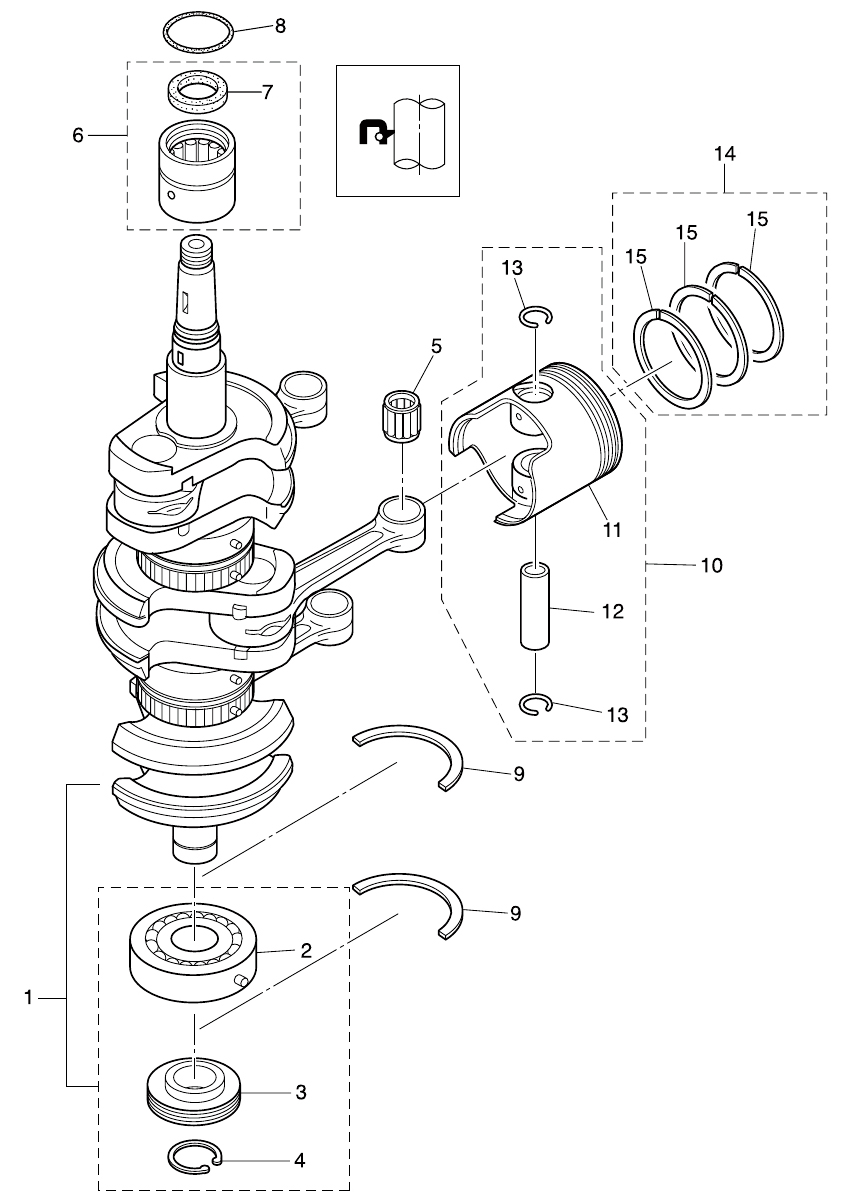

(1) CRANKSHAFT ASSY W/GEAR(2) MAIN BEARING 6305(3) OIL PUMP DRIVE GEAR(4) C-RING(5) ROLLER BEARING 17-21-27(6) MAIN BEARING(7) OIL SEAL 36-46-6(8) O-RING 2.4-44.7(9) THRUST PLATE(9) THRUST PLATE(10) PISTON REPAIR KIT(10) PISTON REPAIR KIT (0.5 O/S)(11) PISTON(11) PISTON (0.5 O/S)(12) PISTON PIN(13) PISTON PIN CLIP(13) PISTON PIN CLIP(14) PISTON RING SET(14) PISTON RING SET (0.5 O/S)(15) PISTON RING(15) PISTON RING(15) PISTON RING(15) PISTON RING (0.5 O/S)(15) PISTON RING (0.5 O/S)(15) PISTON RING (0.5 O/S)



Parts List
2013 :: 40 HP :: TLDI Tohatsu MD40B2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY W/GEAR 3T5000501M 3T5-00050-0 $1,409.90 1
(2) BEARING 6305 3J2001140M 3J2-00114-0 $28.76 1
(3) OIL PUMP DRIVE GEAR 3C8090600M 3C8-09060-0 $132.17 1
(4) C-RING D=25 9451072500M 945107-2500 $1.10 1
(5) NEEDLE BEARING 17-21-27 345000420M 345-00042-0 $11.48 3
(6) MAIN BEARING UPPER 3T5001130M 3T5-00113-0 $88.51 1
(7) OIL SEAL 36-46-6 3T5001210M 3T5-00121-0 $39.57 1
(8) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(9) CRANK SHAFT THRUST PLATE 346001150M 346-00115-0 $2.74 2
(10) PISTON REPAIR KIT 3GF871300 3GF-87130-0 STD $63.92 3
(10) PISTON REPAIR KIT (0.5 O/S) 3GF871310 3GF-87131-0 OPT $71.91 3
(11) PISTON 3GF000011M 3GF-00001-0 STD $115.06 1
(11) PISTON (0.5 O/S) 3GF000041M 3GF-00004-0 OPT $132.46 1
(12) PISTON PIN 3C8000211M 3C8-00021-0 $8.80 1
(13) PISTON PIN CLIP 334000241M 334-00024-1 $1.20 2
(14) PISTON RING SET 3GF871230 3GF-87123-0 STD $33.06 3
(14) PISTON RING SET (0.5 O/S) 3GF871240 3GF-87124-0 OPT $41.98 3
(15) PISTON RING 1ST ( STD ) 3T5000110M 3T5-00011-0 STD $11.78 3
(15) PISTON RING 1ST ( 0.5MM O/S) 3T5000140M 3T5-00014-0 OPT $16.79 3
(15) PISTON RING 1ST ( STD ) 3T5000110M 3T5-00011-0 STD $11.78 3
(15) PISTON RING 1ST ( 0.5MM O/S) 3T5000140M 3T5-00014-0 OPT $16.79 3
