32. RIGGING KIT

Click Here for Microfiche Usage Tip

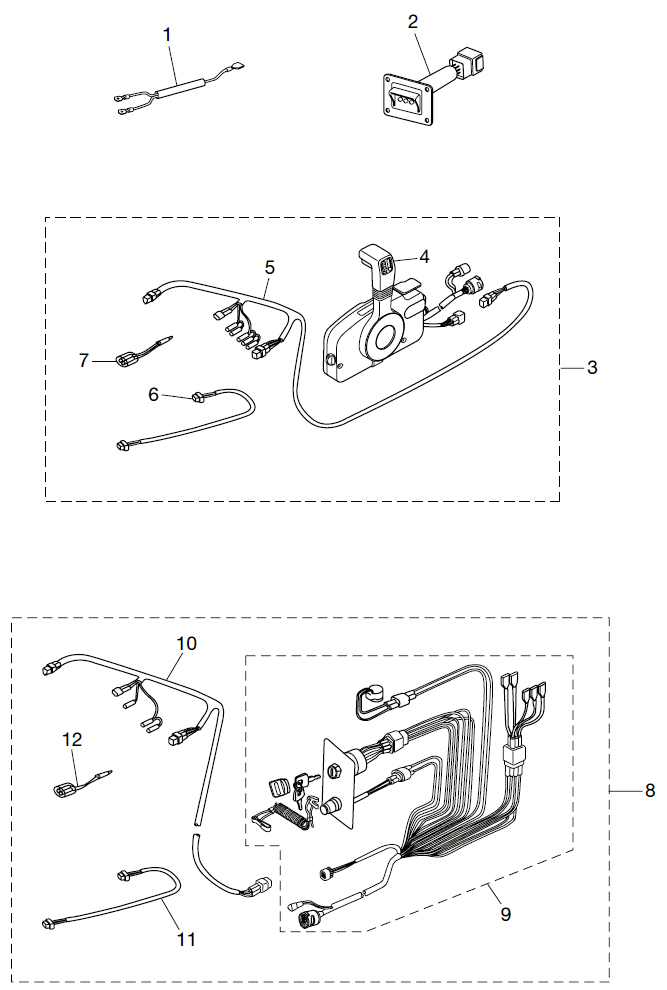

(1) LEAD WIRE L=200(2) LAMP PANEL ASSY(3) PRE-RIGGING KIT(4) REMOTE CONTROL HEAD ASSY (RC5F)(5) METER LEAD WIRE L=8000(6) EXTENSION CORD (TRIM SENSOR) L=6000(7) ASSIST CORD (BLK) L=200(8) PRE-RIGGING KIT(9) RIGGING CORD KIT(10) METER LEAD WIRE L=8000(11) EXTENSION CORD (TRIM SENSOR) L=6000(12) ASSIST CORD (BLK) L=200



Parts List
2013 :: 40 HP :: TLDI Nissan NSD40B2 :: RIGGING KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) LEAD WIRE 3Y9760490M 3Y9-76049-0 $0.00 1 Sold Out View More Details
(2) LAMP PANEL ASSY 3Y9762510M 3Y9-76251-0 $97.87 1
(3) PRE-RIGGING KIT 3GLQ845501 3GLQ84550-1 WITH REMOTE CONTROL WITHOUT METER $429.64 1
(4) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 RC5F $429.64 1
(5) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(6) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(7) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(8) PRE-RIGGING KIT 3GM845501M 3GM-84550-0 WITHOUT REMOTE CONTROL & METER $661.09 1
(9) RIGGING CORD KIT 3GF845600M 3GF-84560-0 WITH PANEL MAIN SWITCH & OVER HEAT BUZZER $0.00 1 Sold Out View More Details
(10) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(11) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(12) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
