17. MANUAL TILT (EFO/EPO MODEL)

Click Here for Microfiche Usage Tip

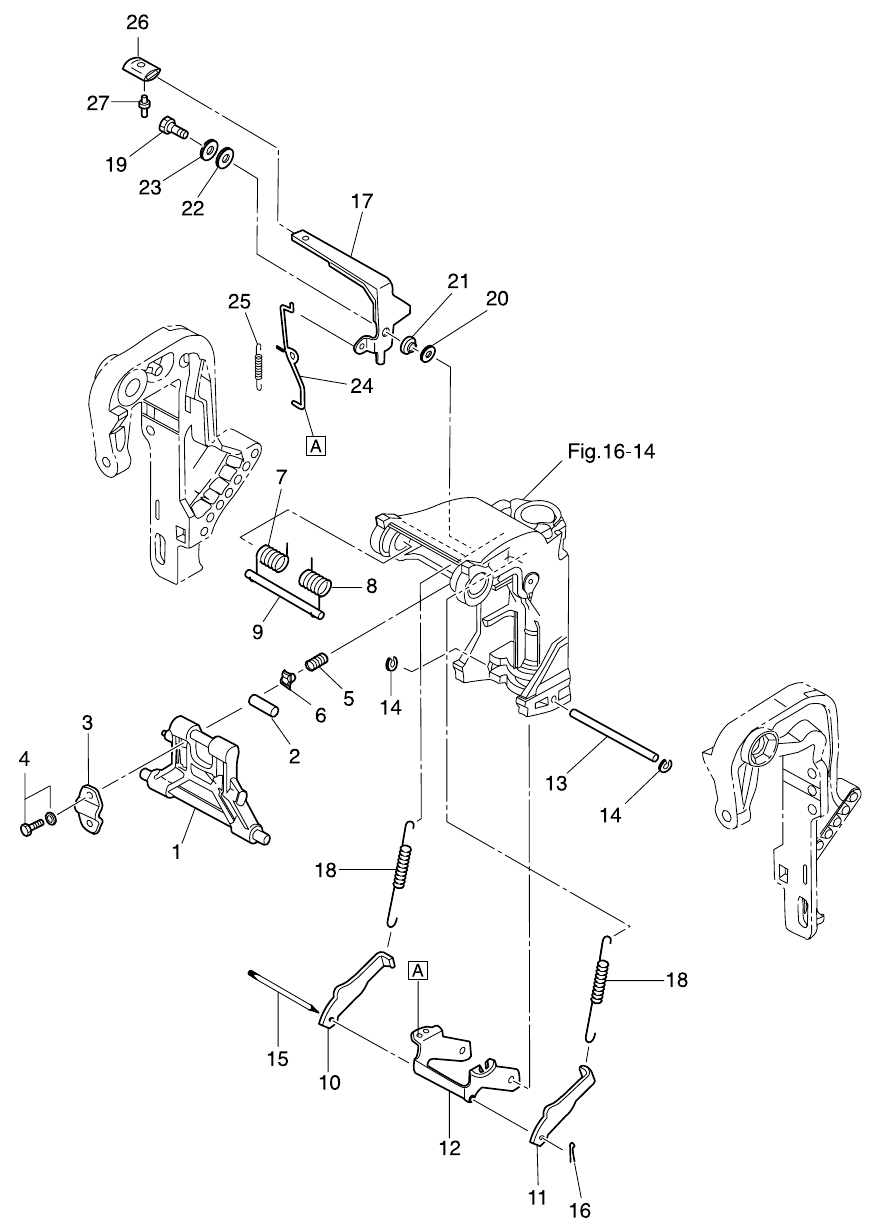

(1) TILT STOPPER ASSY(2) BUSHING 10.2-12-29.5(3) SETTING PLATE(4) BOLT(5) FRICTION SPRING(6) SETTING PIECE(7) TILT ASSISTANT SPRING (R)(8) TILT ASSISTANT SPRING (L)(9) TILT ASSISTANT SHAFT(10) REVERSE LOCK (L)(11) REVERSE LOCK (R)(12) REVERSE LOCK ARM(13) REVERSE LOCK SHAFT(14) E-RING D=6(14) E-RING D=6(15) REVERSE LOCK ROD(16) SPLIT PIN 2-12(17) TILT STOPPER LEVER(18) REVERSE LOCK SPRING (L)(18) REVERSE LOCK SPRING (L)(18) REVERSE LOCK SPRING (S)(18) REVERSE LOCK SPRING (S)(19) SHOULDER BOLT 6-8(20) WASHER 6-16-1.5(21) BUSHING 8.1-20(22) WASHER 8.5-18-1.6(23) WASHER(24) LINK(25) SPRING(26) REVERSE LOCK LEVER GRIP(27) STOPPER



Parts List
2013 :: 40 HP :: TLDI Nissan NSD40B2 :: MANUAL TILT (EFO/EPO MODEL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILT STOPPER ASSY 3C8Q624310 3C8Q62431-0 $41.18 1
(2) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.85 1
(3) TILT STOPPER SETTING PLATE 346624391M 346-62439-0 $6.90 1
(4) BOLT 9101E35820M 9101E3-5820 $1.71 2 Sold Out View More Details
(5) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(6) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(7) TILT ASSISTANT SPRING R 3E3621410M 3C8-62142-0 $34.51 1
(8) TILT ASSISTANT SPRING L 3E3621420M 3C8-62141-0 $34.51 1
(9) TILT ASSISTANT SHAFT 3C8621430M 3C8-62143-0 $15.87 1
(10) REVERSE LOCK L 3C8663522M 3C8-66352-2 $14.70 1
(11) REVERSE LOCK R 3C8663512M 3C8-66351-2 $14.70 1
(12) REVERSE LOCK ARM 3C8663134M 3C8-66313-4 $15.62 1
(13) REVERSE LOCK SHAFT 3C8663191M 3C8-66319-1 $5.98 1
(14) E-RING D=6 9453030600M 945303-0600 $0.83 2
(15) REVERSE LOCK ROD 3C8663210M 3C8-66321-0 $5.69 1
(16) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(17) TILT STOPPER LEVER 3E3624361M 3E3-62436-0 $16.54 1
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L&UL $12.88 2
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L&UL $12.88 2
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(19) SHOULDER BOLT 6-8 3AL052540M 3AL-05254-0 $10.03 1
(20) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(21) BUSHING 8.1-20 3AL052120M 3AL-05212-0 $1.64 1
(22) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 1
(23) WASHER 9401030800M 940113-0800 $0.84 1
(24) LINK B 3C8663181M 3C8-66318-1 $7.34 1
(25) SPRING B 3C8663360M 3C8-66336-0 $5.98 1
(26) GRIP LOCK LEVER 346663330M 346-66333-0 $4.83 1
(27) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
