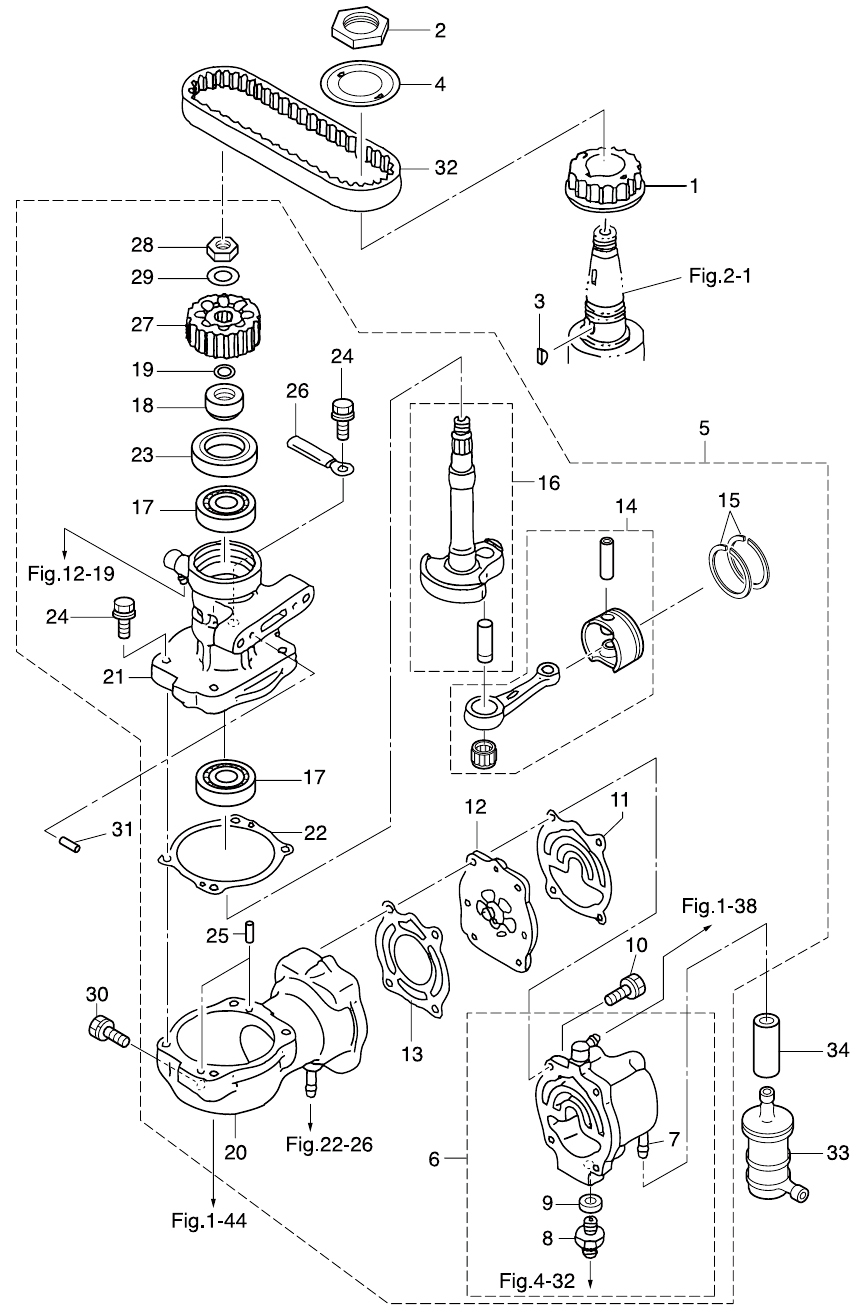

5. AIR COMPRESSOR

Click Here for Microfiche Usage Tip
(1) DRIVE PULLEY(2) NUT(3) KEY T=4(4) BELT GUIDE(5) AIR COMPRESSOR ASSY(6) COMPRESSOR HEAD ASSY(7) NIPPLE(8) ADAPTER(9) WASHER 10.2-17-2(10) BOLT(11) GASKET(12) REED VALVE ASSY(13) GASKET(14) PISTON & CONNECTING ROD ASSY(15) AIR COMPRESSOR PISTON RING(16) COMPRESSOR CRANKSHAFT ASSY(17) BALL BEARING 6203(17) BALL BEARING 6203(18) COLLAR 13.5-25-13(19) O-RING 1.9-13(20) AIR COMPRESSOR CYLINDER ASSY(21) AIR COMPRESSOR HOUSING ASSY(22) GASKET(23) OIL SEAL 25-45-7(24) BOLT(24) BOLT(25) DOWEL PIN 4-10(26) CLAMP 6.5-47.5P(27) DRIVEN PULLEY(28) NUT 10-P1.25(29) WASHER 10.5-20-3.2(30) BOLT(31) DOWEL PIN 4-10(32) DRIVE BELT(33) AIR FILTER ASSY(34) HOSE



Parts List
2013 :: 40 HP :: TLDI Nissan NSD40B2 :: AIR COMPRESSOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE PULLEY 3T5100600M 3T5-10060-0 $50.40 1
(2) NUT 3T5100682M 3T5-10068-2 $5.15 1
(3) KEY 3T5101310M 3T5-10131-0 $1.56 1
(4) BELT GUIDE 3T5100630M 3T5-10063-0 $13.89 1
(5) AIR COMPRESSOR ASSY 3GFB100000 3GFB10000-0 $530.98 1 Sold Out View More Details
(6) COMPRESSOR HEAD ASSY 3GFB100090 3GFB10009-0 $194.68 1
(7) NIPPLE 3T1020931M 3T1-02093-1 $7.14 1 Sold Out View More Details
(8) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(9) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(10) BOLT 9101247630M 910124-7630 $1.27 4
(11) GASKET COMPRESSOR HEAD 3T5100121M 3T5-10012-0 COMPRESSOR HEAD $3.82 1
(12) REED VALVE ASSY 3T5100100M 3T5-10010-0 $88.51 1 Sold Out View More Details
(13) VAVLE SEAT GASKET 3T5100190M 3T5-10019-0 VALVE SEAT $3.82 1 Sold Out View More Details
(14) PISTON & CONNECTING ROD ASSY 3GF873300M 3GF-87330-0 $141.09 1 Sold Out View More Details
(15) PISTON RING 3T5100250M 3T5-10025-0 $6.54 2
(16) COMPRESSOR CRANKSHAFT ASSY 3GF873310M 3GF-87331-0 $190.76 1
(17) BEARING 6203 960106203M 9601-0-6203 $16.50 2
(18) COLLAR 13.5-25-13 3T1100420M 3T1-10042-0 $26.50 1
(19) O-RING 13-1.9 3T5100460M 3T5-10046-0 $0.81 1
(20) AIR COMPRESSOR CYLINDER ASSY 3GFB100480 3GFB10048-0 $131.36 1 Sold Out View More Details
(21) COMPRESSOR HOUSING 3T5B100510 3T5B10051-0 $366.39 1
(22) COMPRESSOR HOUSING GASKET 3T5100540M 3T5-10054-0 COMPRESSOR HOUSING $5.06 1
(23) OIL SEAL 25-45-7 3T5100410M 3T5-10041-0 $13.26 1
(24) BOLT 9101035625M 910103-5625 $1.47 4
(25) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(26) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(27) DRIVEN PULLEY 3T5100620M 3T5-10062-0 $51.92 1
(28) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 $1.61 1
(29) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 1
(30) BOLT 9101037835M 910103-7835 $2.22 3
(31) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(32) DRIVE BELT 3T5100610M 3T5-10061-0 $27.49 1
(33) AIR FILTER ASSY 3GF101300M 3GF-10130-0 $20.82 1
(34) HOSE 98AT130060M 98AT130-055 AIR COMPRESSOR-AIR FILTER $0.00 1 Sold Out View More Details
