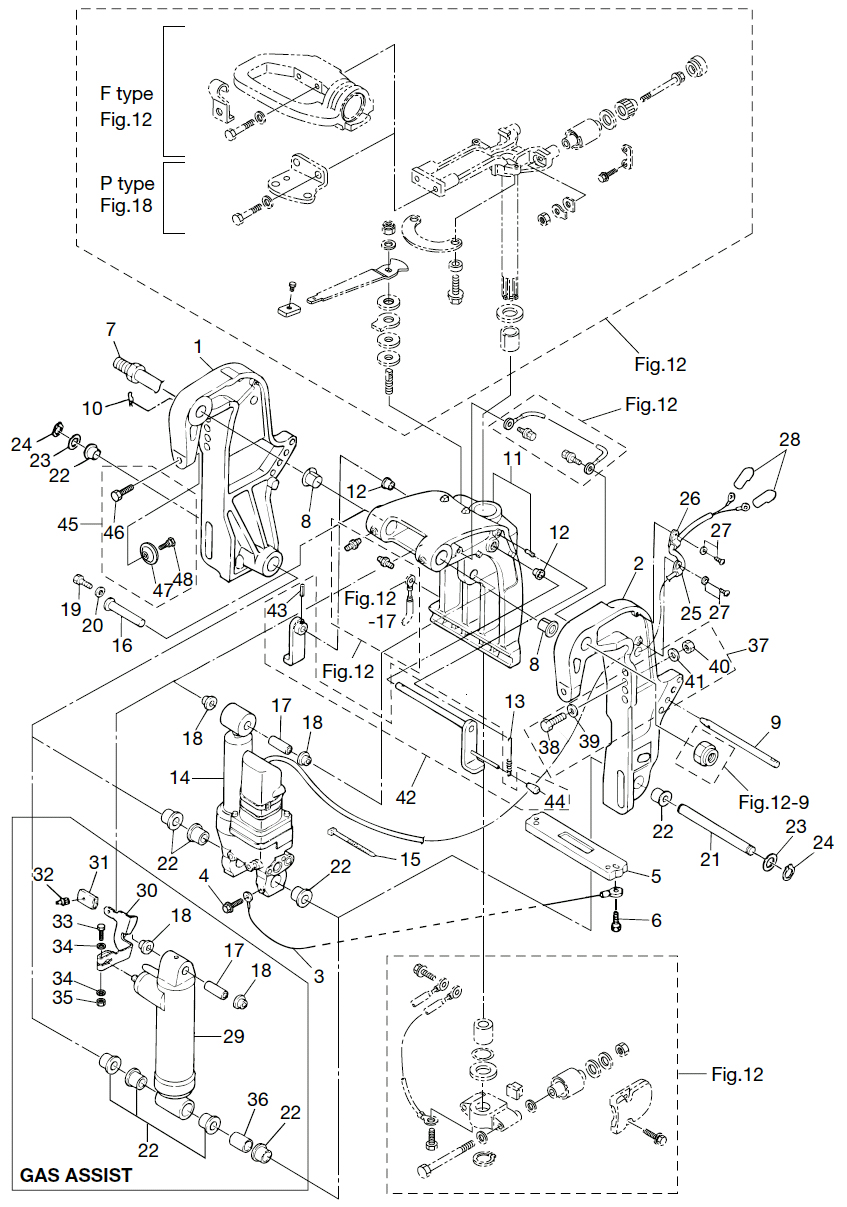

14. BRACKET (PTT & GAS ASSIST)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (PTT-R)(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(2) CLAMP BRACKET (PTT-L)(3) GROUND L=130(4) BOLT(5) ANODE(6) BOLT(7) SWIVEL BRACKET SHAFT ASSY(8) BUSHING(8) BUSHING(9) PTT THRUST ROD(10) SNAP PIN(11) SWIVEL BRACKET ASSY(12) COLLAR 10.2-12-12(12) COLLAR 10.2-12-12(13) TILT STOPPER SPRING(14) PT ASSY(15) LEAD WIRE BAND 300(16) CYLINDER PIN (UPPER)(17) BUSHING 13-16-40(17) BUSHING 13-16-40(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(19) BOLT(20) WASHER 6.5-23-1.5(21) CYLINDER PIN (LOWER)(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(23) WASHER 18.2-34-1(23) WASHER 18.2-34-1(24) C-RING D=18(24) C-RING D=18(25) CLAMP 6-9.5L(26) CLAMP 6.5-14L(27) SCREW(27) SCREW(28) TERMINAL CAP(29) GAS SHOCK ABSORBER(30) REVERSE LOCK LEVER(31) REVERSE LOCK LEVER GRIP(32) STOPPER(33) BOLT 6-35(34) WASHER(34) WASHER(35) NUT(36) COLLAR 18.2-21.7-30(37) RIGGING BOLT SET(38) BOLT 12-105 P1.25(39) WASHER 13-34-3(40) NUT 12-P1.25(41) WASHER(42) TILT STOPPER KIT(42) TILT STOPPER KIT(43) SPRING PIN 3.5-16(44) TILT STOPPER GRIP(45) CLAMP SCREW KIT(46) CLAMP SCREW (PTT)(47) CLAMP SCREW PAD(48) SHOULDER BOLT



Parts List
2013 :: 25 HP :: 4 Stroke Nissan NSF25B :: BRACKET (PTT & GAS ASSIST)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (PTT-R) 3AEQ772111 3AEQ77211-1 FOR EFT / STARBOARD SIDE $0.00 1 Sold Out View More Details
(1) CLAMP BRACKET (PTT-R) 3AFQ772111 3AFQ77211-1 FOR GAS ASSIST MODEL / STARBOARD SIDE $191.37 1 Sold Out View More Details
(2) CLAMP BRACKET (PTT-L) 3AEQ772122 3AEQ77212-2 FOR EFT / PORT SIDE $191.37 1
(2) CLAMP BRACKET (PTT-L) 3AFQ772122 3AFQ77212-2 FOR GAS ASSIST MODEL / PORT SIDE $0.00 1 Sold Out View More Details
(3) GROUND CABLE 398623961M 398-62396-1 ANODE-PTT ASSY / FOR PTT MODEL $5.75 1 Sold Out View More Details
(4) BOLT 9101035612M 910103-5612 FOR PTT MODEL $1.07 1
(5) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(6) BOLT 9101035630M 910113-5630 $1.15 2
(7) SWIVEL BRACKET SHAFT 3AD621910M 3Z5-62191-0 BRACKET BOLT $41.18 1
(8) BUSHING BRACKET BOLT 3C8772130M 3C8-77213-0 $5.07 2
(9) THRUST ROD 3R0771180M 3R0-77118-0 $22.77 1
(10) SNAP PIN D=10 9516031000M 951603-1000 $1.13 1
(11) SWIVEL BRACKET ASSY 3ACQ772082 3ACQ77208-2 PIN $0.00 1 Sold Out View More Details
(12) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(13) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(14) PT ASSY 3AC771511M 3ACQ77151-0 SEE FIG.14 / FOR PTT MODEL $1,286.08 1
(15) BAND LEAD WIRE 300 1H2315340M 1H2-31534-0 FOR PTT MODEL $0.00 1 Sold Out View More Details
(16) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 $8.58 1
(17) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 $1.57 1
(18) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 $1.57 2
(19) BOLT 9101030612M 910113-0612 $0.84 1
(20) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(21) CYLINDER PIN (LOWER) 3R0771011M 3R0-77101-0 $38.19 1
(22) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 CLAMP BRACKET CYLINDER / FOR PTT MODEL $2.31 5
(22) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 CLAMP BRACKET CYLINDER / FOR GAS ASSIST MODEL $2.31 6
(23) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 $2.40 2
(24) C-RING D=18 9451031800M 945103-1800 $1.93 2
(25) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR PTT MODEL $1.41 1
(26) CLAMP 6.5-14L 345069150M 345-06915-0 FOR PTT MODEL $4.63 1
(27) SCREW 9215035612M 921503-5612 FOR PTT MODEL $0.86 2
(28) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED STARTER SOLENOID / FOR PTT MODEL $2.25 2
(29) GAS SHOCK ABSORBER 3R0Q776012 3R0Q77601-0 FOR GAS ASSIST MODEL $591.31 1
(30) LOCK LEVER 3R0663110M 3R0-66311-0 FOR GAS ASSIST MODEL $28.78 1
(31) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 FOR GAS ASSIST MODEL $3.62 1
(32) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR GAS ASSIST MODEL $1.27 1
(33) BOLT 6-35 3V2600010M 3V1-60001-0 FOR GAS ASSIST MODEL $3.43 1
(34) WASHER 9401E30600M 9401E3-0600 FOR GAS ASSIST MODEL $0.00 2 Sold Out View More Details
(35) NUT 9301E30600M 9301E3-0600 FOR GAS ASSIST MODEL $0.52 1 Sold Out View More Details
(36) COLLAR 18.2 - 21.7 - 30 3R0771050M 3R0-77105-0 FOR GAS ASSIST MODEL $14.73 1
(37) RIGGING BOLT SET 3AD721200M 3AD-72120-0 $55.50 1
(38) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(39) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(40) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(41) WASHER 9401E31200M 9401E3-1200 $0.65 4
(42) TILT STOPPER KIT 3GF624661M 3Z5S62470-0 FOR PTT MODEL $66.77 1
(42) TILT STOPPER KIT 3AC624661M 3AC-62466-1 FOR GAS ASSIST MODEL $66.77 1
(43) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(44) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(45) CLAMP SCREW KIT 3C8772170M 3C8-77217-0 $64.68 2
(46) CLAMP SCREW (PTT) 3C8772160M 3C8-77214-0 $39.91 1
(47) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(48) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
