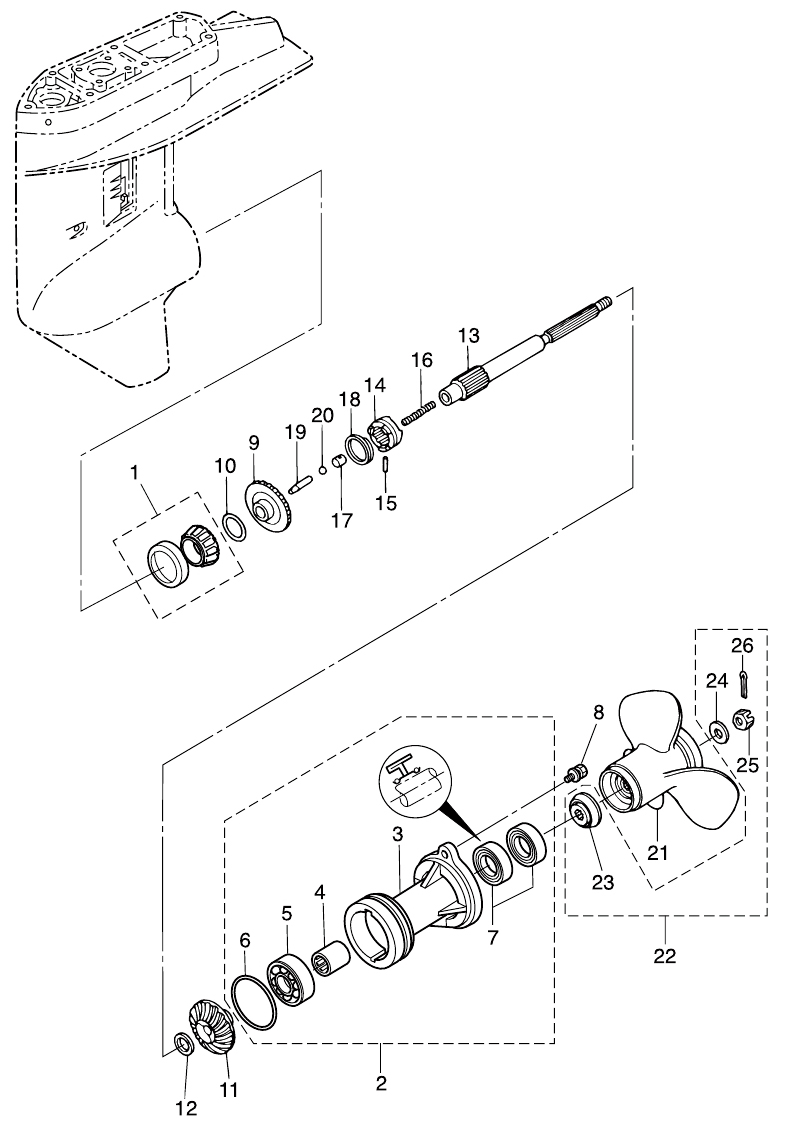

12. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) TAPERED ROLLER BEARING 30205(2) PROPELLER SHAFT HOUSING ASSY(3) PROPELLER SHAFT HOUSING(4) ROLLER BEARING 18-25-2.5(5) BALL BEARING 6205(6) O-RING 3-62.5(7) OIL SEAL 18-28-8(8) BOLT(9) BEVEL GEAR ASSY (A)(10) SHIM 26.5-34.8-0.1(10) SHIM 26.5-34.8-0.15(11) BEVEL GEAR C(12) WASHER 18-24-1.5(13) PROPELLER SHAFT(14) CLUTCH(15) PIN(16) SPRING(17) SPRING RETAINER(18) SNAP(19) PUSH ROD(20) BALL 3/8(21) PROPELLER ASSY (8")(21) PROPELLER ASSY (9")(21) PROPELLER ASSY (10")(21) PROPELLER ASSY (11")(21) PROPELLER ASSY (12")(21) PROPELLER ASSY (13")(21) PROPELLER ASSY (14")(22) PROPELLER HARDWARE KIT(23) THRUST HOLDER(24) WASHER 12.5-32-2.5(25) PROPELLER NUT(26) SPLIT PIN 3-22



Parts List
2013 :: 25 HP :: 4 Stroke Nissan NSF25B :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BEARING 30205 346602150M 346-60215-0 $25.33 1
(2) PROPELLER SHAFT HOUSING ASSY 349Q601007 349Q601007 $121.16 1
(3) PROPELLER SHAFT HOUSING 346Q601018 346Q601018 $62.96 1
(4) NEEDLE BEARING 18 - 25 - 25 346601020M 346-60102-0 $25.33 1
(5) BEARING 6205 960106205M 9601-0-6205 $13.25 1
(6) O-RING 3 - 62.5 332601030M 332-60103-0 $3.91 1
(7) OIL SEAL 18-28-8 3AC601110M 3AC601110M $4.01 2
(8) BOLT 9101E35830M 9101E3-5830 $1.89 2
(9) BEVEL GEAR A 346640101M 346-64010-1 $109.58 1
(10) SHIM 26.5 - 34.8 - 0.1 369640811M 369-64081-1 $0.00 0 Sold Out View More Details
(10) SHIM 26.5 - 34.8 - 0.15 369640821M 369-64082-1 $0.00 0 Sold Out View More Details
(11) BEVEL GEAR C 3AC640300M 3AC-64030-0 3 LINE $94.22 1
(12) WASHER BEVEL GEAR C 346640320M 346-64032-0 $4.38 1
(13) PROPELLER 346642116M 346-64211-6 $241.59 1
(14) CLUTCH 3AC642151M 3AC-64215-0 $52.21 1
(15) CLUTCH PIN 346642180M 346-64218-0 $2.37 1
(16) SPRING CLUTCH 332642210M 332-64221-0 $1.85 1
(17) CLUTCH SPRING RETAINER 350642221M 350-64222-0 $13.25 1
(18) SNAP CLUTCH PIN 346642190M 346-64219-0 $1.61 1 Sold Out View More Details
(19) PUSH ROD CLUTCH 3C8642231M 3C8-64223-1 $11.02 1
(20) STEEL BALL 318 9650020803M 965002-0803 $1.13 1
(21) PROPELLER ASSY (8) 346B641065 346-64106-5 OPT 3 X 260 X 210 $160.46 1
(21) PROPELLER ASSY (9) 3R0B645180 3R0-64518-0 TRANSOM UL / STD 3 X 247 X 229 $104.63 1
(21) PROPELLER ASSY (10) 3R0B645210 3R0-64521-0 TRANSOM L FOR JAPAN / STD 3 X 247 X 254 $104.63 1 Sold Out View More Details
(21) PROPELLER ASSY (11) 3R0B645230 3R0-64523-0 TRANSOM S & L FOR EX / STD 3 X 249 X 279 $104.63 1
(21) PROPELLER ASSY (12) 3R0B645250 3R0-64525-0 TRANSOM S FOR JAPAN / STD 3 X 249 X 305 $104.63 1
(21) PROPELLER ASSY (13) 3R0B645270 3R0-64527-0 TRANSOM S FOR EX / STD 3 X 244 X 330 $104.63 1
(21) PROPELLER ASSY (14) 349B645291 346-64105-5 OPT 3 X 252 X 360 $0.00 1 Sold Out View More Details
(22) PROPELLER HARDWARE KIT 3R0873260M 3R0-87326-0 $38.94 1
(23) THRUST HOLDER 346642315M 346-64231-5 $29.88 1
(24) WASHER 12.5-32-2.5 346641245M 346-64124-5 $4.83 1
(25) NUT PROPELLER 346641215M 346-64121-5 $8.05 1
(26) SPLIT PIN 3 – 22 9515030322M 951503-0322 $0.83 1
