9. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

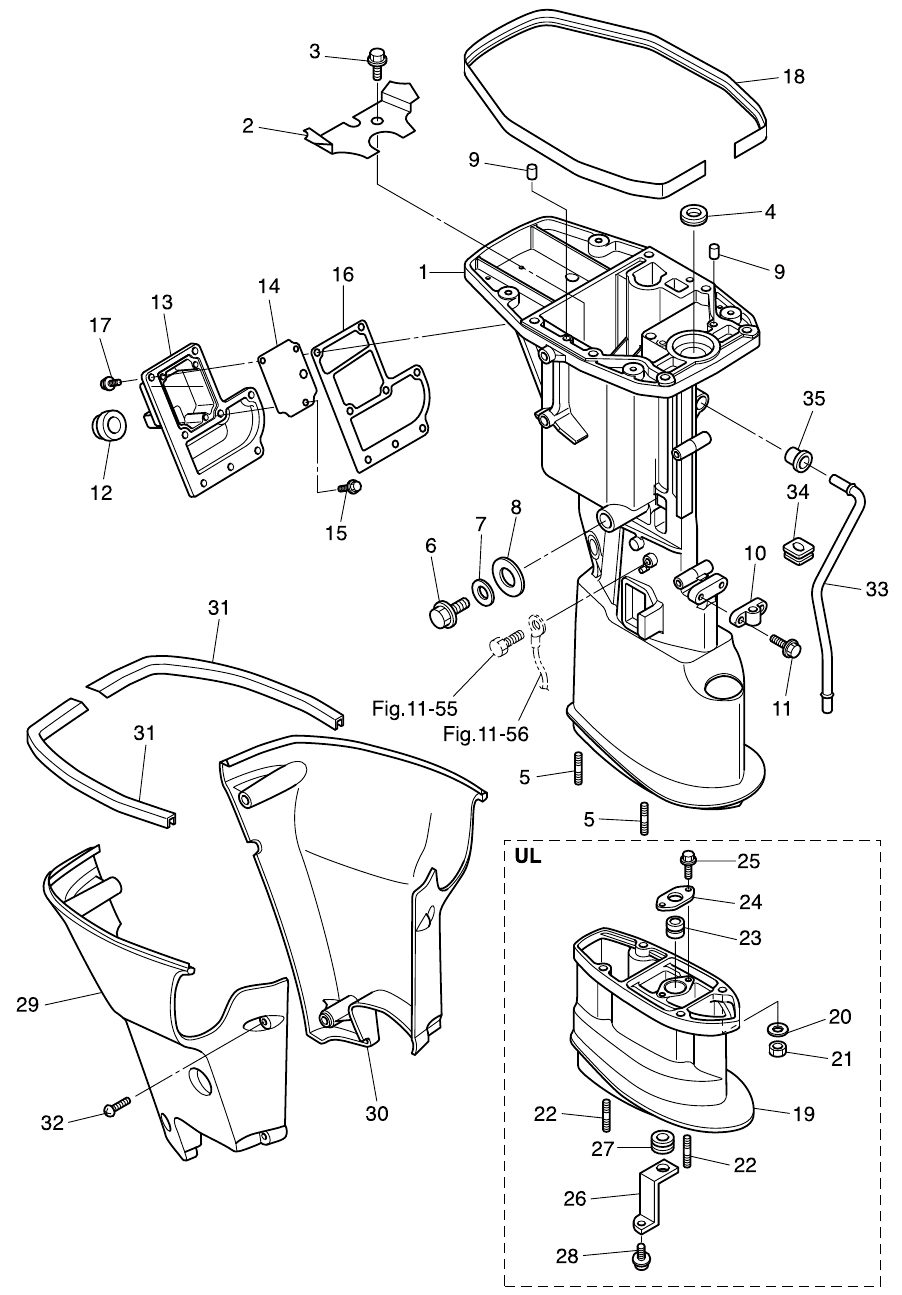

(1) DRIVE SHAFT HOUSING ASSY (S)(1) DRIVE SHAFT HOUSING ASSY (L)(2) GUIDE PLATE(3) BOLT(4) OIL SEAL 12.8-25-7(5) STUD(5) STUD(6) DRAIN BOLT 14-20(7) WASHER 14.5-24-1(8) GROMMET(9) DOWEL PIN 6-12(9) DOWEL PIN 6-12(10) CAM ROD HOLDER(11) BOLT(12) IDLE EXHAUST PORT GROMMET(13) IDLE EXHAUST PORT COVER(14) PLATE(15) BOLT(16) IDLE EXHAUST PORT GASKET(17) BOLT(18) ENGINE BASEMENT SEAL L=830(19) EXTENSION HOUSING(20) WASHER 8.1-16-1.5(21) NUT(22) STUD(22) STUD(23) DRIVE SHAFT BUSHING(24) STOPPER(25) BOLT(26) LOCK PLATE(27) WATER PIPE AUXILIARY MOUNT 13-2.5(28) SCREW(29) DRIVE SHAFT HOUSING COVER (R)(30) DRIVE SHAFT HOUSING COVER (L)(31) SEAL L=360(31) SEAL L=360(32) TAPPING SCREW 6-60(33) WATER PIPE (S)(33) WATER PIPE (L)(33) WATER PIPE (UL)(34) WATER PIPE AUXILIARY MOUNT(35) WATER PIPE SEAL (UPPER)



Parts List
2013 :: 20 HP :: 4 Stroke Tohatsu MFS20C :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING ASSY (S) 3BKQ610202 3R3S610202 FOR TRANSOM S $452.18 1
(1) DRIVE SHAFT HOUSING ASSY (L) 3BKQ610301 3R3Q61030-5 FOR TRANSOM L&UL $504.90 1
(2) GUIDE PLATE 3V9074400M 3V9-07440-0 $6.76 1
(3) BOLT 9101035612M 910103-5612 $1.07 1
(4) OIL SEAL 12.8-25-7 350012151M 350-01215-1 $4.75 1
(5) STUD BOLT 3BJ611110M 3BJ-61111-0 $2.59 4 Sold Out View More Details
(6) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(7) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(8) OIL DRAIN GROMMET 3R3670170M 3R3-67017-0 $2.19 1
(9) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(10) CAM ROD HOLDER 3V6660370M 3V6-66037-0 $1.82 1
(11) BOLT 9101E35620M 910113-5620 $1.30 2
(12) IDLE EXHAUST PORT GROMMET 3BJ612070M 3BJ-61207-0 $1.50 1
(13) IDLE EXHAUST PORT COVER 3BJQ612080 3BJQ61208-0 $45.40 1
(14) IDLE EXHAUST PORT PLATE 3BJ621140M 3BJ-62114-0 $7.57 1
(15) BOLT 9101E30512M 9101E3-0512 $1.18 3
(16) IDLE EXHAUST PORT GASKET 3BJ612200M 3BJ-61220-0 $13.26 1
(17) BOLT 9101F45616M 9101F4-5616 $0.69 8
(18) ENGINE BASEMENT SEAL 3R3671160M 3R3-67116-0 $22.91 1
(19) EXTENSION HOUSING UL 3BJQ611100 3BJQ61110-0 FOR TRANSOM UL $176.70 1
(20) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 FOR TRANSOM UL $1.29 4
(21) NUT 9301E30800M 9301E3-0800 FOR TRANSOM UL $1.99 4 Sold Out View More Details
(22) STUD BOLT 3BJ611110M 3BJ-61111-0 FOR TRANSOM UL $2.59 4 Sold Out View More Details
(23) DRIVE SHAFT BUSHING 3BJ600030M 3BJ-60003-0 FOR TRANSOM UL $44.32 1
(24) BUSHING STOPPER 3V1643320M 3V1-64332-0 FOR TRANSOM UL $5.18 1 Sold Out View More Details
(25) BOLT 9101E35612M 910103-5612 FOR TRANSOM UL $1.07 2
(26) LOCK PLATE 3Z0652030M 3Z0-65203-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(27) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 FOR TRANSOM UL $2.42 1
(28) SCREW 9215E30510M 9215E3-0510 FOR TRANSOM UL $0.81 1
(29) DRIVE SHAFT HOUSING COVER (RIGHT) 3R3Q670031 3R3Q67003-1 STARBOARD SIDE $79.52 1
(30) DRIVE SHAFT HOUSING COVER (LEFT) 3R3Q670041 3R3Q67004-1 PORT SIDE $79.52 1
(31) APRON SEAL 3R3612130M 3R3-61213-0 $3.91 2
(32) TAPPING SCREW 6 - 60 3R0612170M 3R0-61217-0 $1.47 4
(33) WATER PIPE S 3H8651000M 3H8-65100-0 FOR TRANSOM S $13.99 1
(33) WATER PIPE L 3H8651100M 3H8-65110-0 FOR TRANSOM L $15.69 1
(33) WATER PIPE UL 3BJ651200M 3BJ-65120-0 FOR TRANSOM UL $22.72 1
(34) WATER PIPE AUXILIARY MOUNT 3R3652040M 3R3-65204-0 $2.82 1
(35) WATER PIPE SEAL (UPPER) 3R3652061M 3R3-65206-1 $2.19 1
