2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

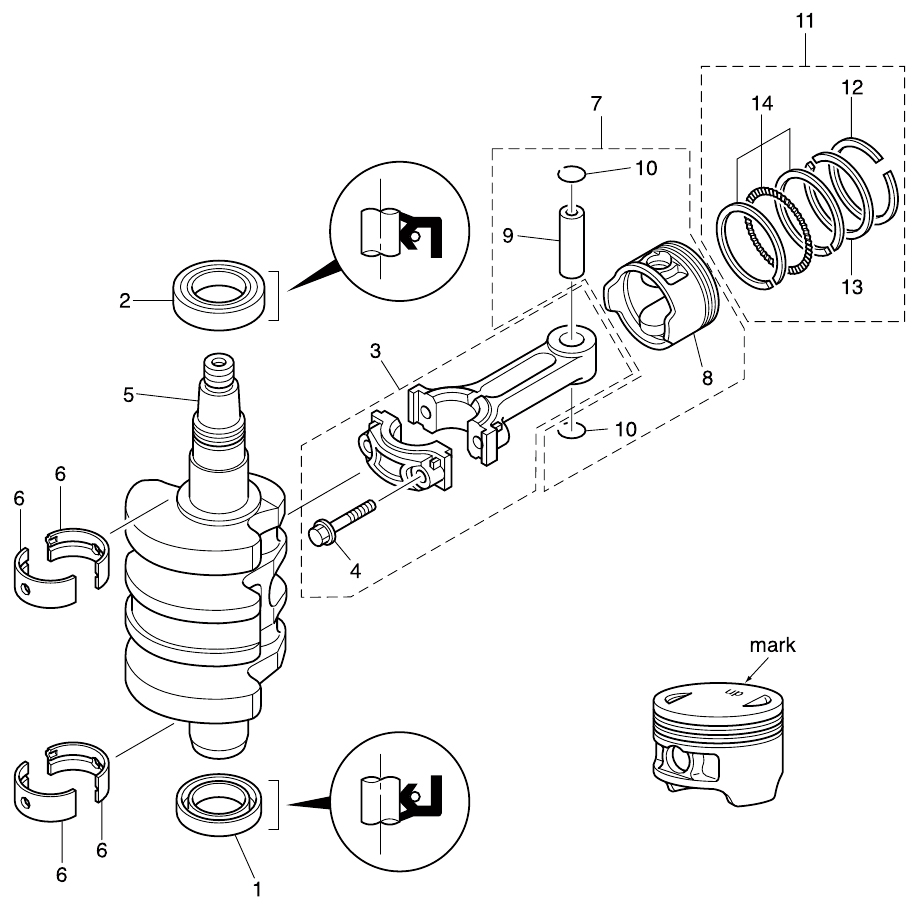

(1) OIL SEAL 32-44-9(2) OIL SEAL 36-50-7(3) CONNECTING ROD ASSY(4) CONNECTING ROD BOLT(5) CRANKSHAFT ASSY(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(6) PLAIN SHAFT BEARING(7) PISTON REPAIR KIT(8) PISTON(9) PISTON PIN(10) PISTON PIN CLIP(10) PISTON PIN CLIP(11) PISTON RING SET(12) PISTON RING(13) PISTON RING(14) PISTON RING-OIL



Parts List
2013 :: 20 HP :: 4 Stroke Tohatsu MFS20C :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL SEAL 32-44-9 3R3001210M 3R3-00121-0 LOWER $8.47 1
(2) OIL SEAL 36-50-7 3BJ001210M 3BJ-00121-0 UPPER $11.00 1
(3) CONNECTING ROD ASSY 3R0000400M 3R0-00040-0 $51.06 2
(4) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(5) CRANKSHAFT ASSY 3BJ000300M 3BJ-00030-0 $309.17 1
(6) BEARING (BLUE) 3AE074080M 3AE-07408-0 BLUE / SEE SERVICE MANUAL $6.13 0
(6) BEARING (RED) 3AE074070M 3AE-07407-0 RED / SEE SERVICE MANUAL $6.13 0
(7) PISTON REPAIR KIT 3FS871300M 3FS-87130-0 $50.06 2
(8) PISTON 3AE000011M 3AE-00001-1 $43.25 1
(9) PISTON PIN 3AE000210M 3AE-00021-0 $8.63 1
(10) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 2
(11) PISTON RING SET 3FS871230M 3FS-87123-0 $18.69 2
(12) PISTON RING TOP 3AC000110M 3AC-00011-0 1ST $10.07 1
(13) PISTON RING 2ND 3AC000120M 3AC-00012-0 2ND $8.47 1
(14) PISTON RING OIL 3AC000130M 3AC-00013-0 OIL $5.87 1
