22. OPTIONAL PARTS & ACCESSORIES

Click Here for Microfiche Usage Tip

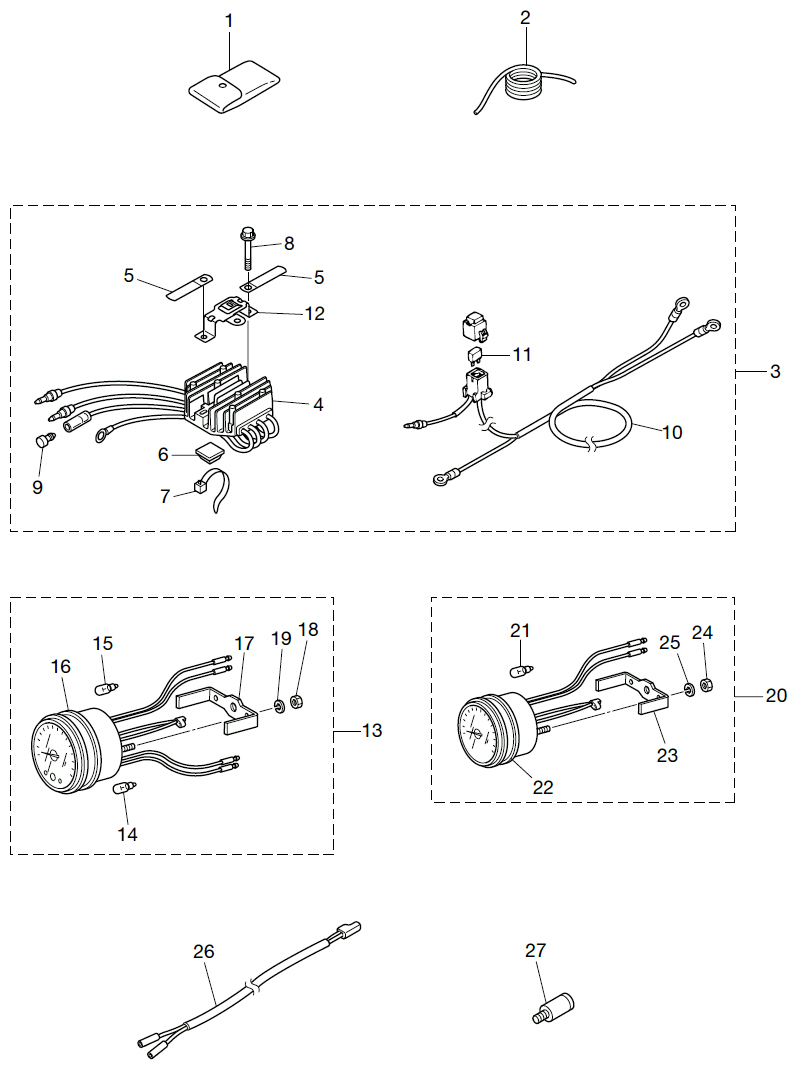

(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) RECTIFIER KIT(4) RECTIFIER COMPLETE(5) CLAMP 6.5-47.5P(5) CLAMP 6.5-47.5P(6) BAND MOUNT(7) BAND 203(8) BOLT(9) CABLE TERMINAL PLUG(10) EXTENSION CORD L=3000(11) FUSE 30A(12) FUSE HOLDER BRACKET(13) TACHOMETER (BLACK)(13) TACHOMETER (WHITE)(13) TACHOMETER W/OIL LAMP(14) OIL BULB 12V-1.7W(15) METER BULB 12V-1.8W(16) METER DAMPER(17) FITTING PLATE(18) NUT(19) SPRING WASHER(20) TACHOMETER (BLACK)(20) TACHOMETER (WHITE)(20) TACHOMETER ASSY(21) METER BULB 12V-1.8W(22) METER DAMPER(23) FITTING PLATE(24) NUT(25) SPRING WASHER(26) TACHOMETER LEAD WIRE L=6000(27) FLUSHING PLUG

Displaying 1 to 31 (of 31 products)

Parts List
2013 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: OPTIONAL PARTS & ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3BJ721000M 3H6-72100-0 $30.02 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.43 1
(3) RECTIFIER KIT 3BJ761602M 3BJ-76160-0 $125.08 1
(4) RECTIFIER COMPLETE 3BJ760601M 3BJ-76060-0 $81.01 1
(5) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 2
(6) BAND MOUNT 3BJ761640M 3BJ-76164-0 $0.00 1 Sold Out View More Details
(7) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 1 Sold Out View More Details
(8) BOLT 9101035625M 910103-5625 $1.57 2
(9) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.61 1
(10) EXTENSION CORD 3BJ761610M 3BJ-76161-0 $34.23 1
(11) FUSE 30A 3T5762490M 3T5-76249-0 $2.58 1 Sold Out View More Details
(12) FUSE HOLDER BRACKET 3BJ760640M 3BJ-76064-0 $8.57 1
(13) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $127.15 1 Sold Out View More Details
(13) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $127.15 1
(13) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 SELECTOR 12P / FOR JAPAN EP/EPT $0.00 1 Sold Out View More Details
(14) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3N8-72640-1 / EP/EPT $3.50 1
(15) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3N8-72640-1 $0.00 1 Sold Out View More Details
(16) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3N8-72640-1 $3.50 1
(17) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3N8-72640-1 $27.10 1 Sold Out View More Details
(18) NUT 9301030500M 930103-0500 FOR 3N8-72640-1 $0.92 2
(19) SPRING WASHER 9413030500M 941303-0500 FOR 3N8-72640-1 $0.97 2
(20) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $127.15 1 Sold Out View More Details
(20) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $127.15 1
(20) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 SELECTOR 12P / FOR JAPAN MF & EF/EFT $0.00 1 Sold Out View More Details
(21) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3B7-72530-2 $0.00 1 Sold Out View More Details
(22) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3B7-72530-2 $3.50 1
(23) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3B7-72530-2 $27.10 1 Sold Out View More Details
(24) NUT 9301030500M 930103-0500 FOR 3B7-72530-2 $0.92 2
(25) SPRING WASHER 9413030500M 941303-0500 FOR 3B7-72530-2 $0.97 2
(26) TACHOMETER LEAD CABLE 361725390M 361-72539-0 FOR MF & EF/EFT $54.19 1 Sold Out View More Details
(27) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.61 1
Displaying 1 to 31 (of 31 products)
