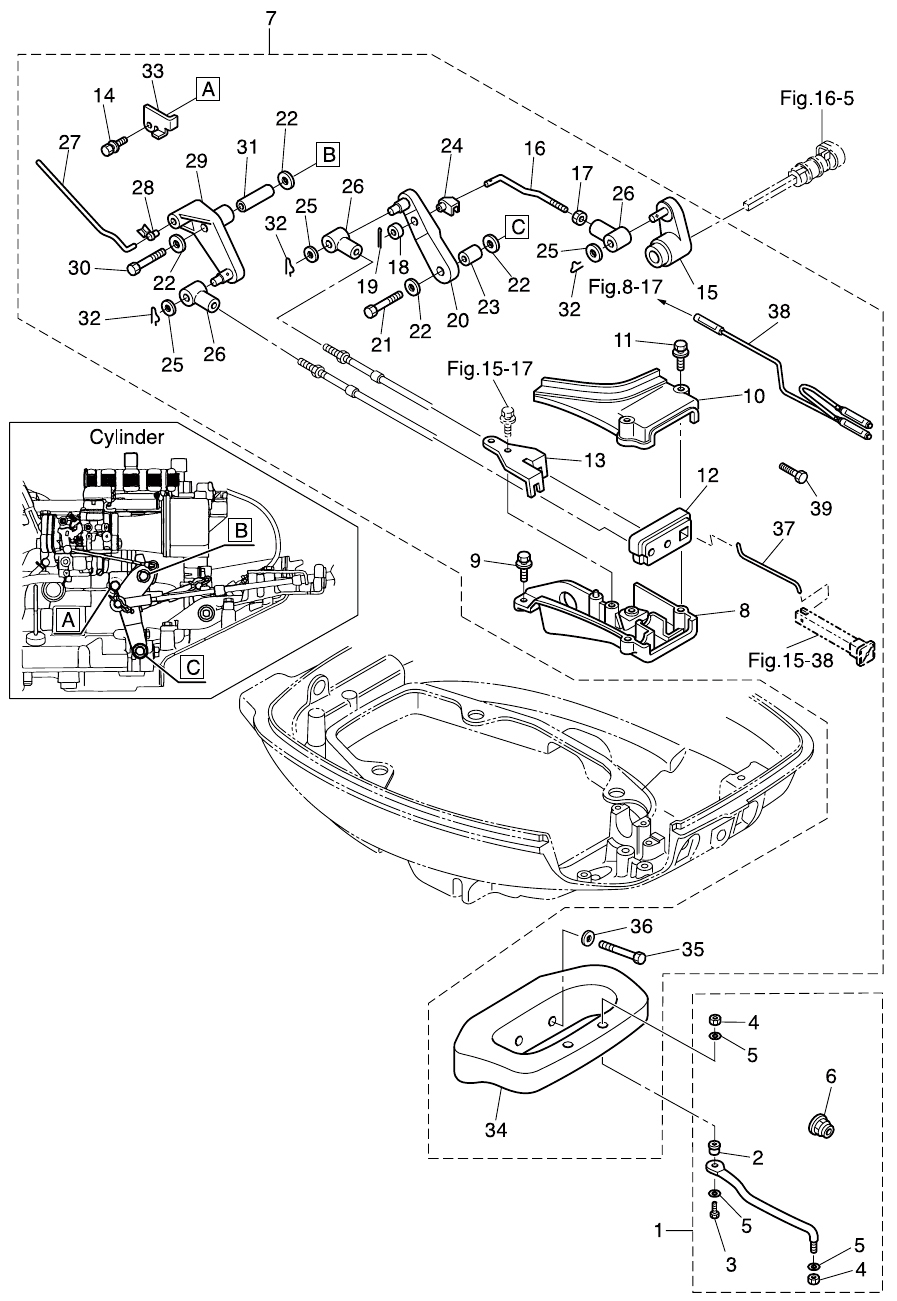

17. REMOTE CONTROL PARTS

Click Here for Microfiche Usage Tip
(1) DRAG LINK ASSY(2) SPACER(3) BOLT 3/8-50(4) NYLON NUT 3/8-24UNF(4) NYLON NUT 3/8-24UNF(5) WASHER 9.6-18-2(5) WASHER 9.6-18-2(5) WASHER 9.6-18-2(6) SEAL RING(7) REMOTE CONTROL FITTING ASSY(8) REMOTE CONTROL CABLE STAY(9) BOLT(10) REMOTE CONT CABLE STAY COVER(11) BOLT 6-35(12) GROMMET(13) CABLE CLIP ASSY(14) BOLT(15) SHIFT ARM (REMOTE CONTROL)(16) SHIFT LEVER ROD(17) NUT(18) SPACER 5-9.5-5(19) SPLIT PIN 2-12(20) SHIFT LEVER (REMOTE CONTROL)(21) BOLT(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(23) COLLAR 6.2-9-9.3(24) ROD SNAP 5-3(25) WASHER 8.5-18-1.6(25) WASHER 8.5-18-1.6(25) WASHER 8.5-18-1.6(26) CABLE JOINT(26) CABLE JOINT(26) CABLE JOINT(27) THROTTLE ROD(28) ROD SNAP 3-B(29) THROTTLE LEVER (REMOTE CONT)(30) BOLT(31) COLLAR 6.2-9-30.8(32) SNAP PIN D=8(32) SNAP PIN D=8(32) SNAP PIN D=8(33) THROTTLE LEVER STOPPER(34) STEERING BRACKET(35) BOLT(36) WASHER(37) CHOKE ROD(38) SEPARATE CORD(39) BOLT



Parts List
2013 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: REMOTE CONTROL PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 FOR EP/EPT $154.19 1
(2) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(3) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $11.28 1
(4) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(5) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(6) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(7) REMOTE CONTROL FITTING ASSY 3BJQ838803 3R3Q83880-0 FOR MF->MP $167.03 1
(8) REMOTE CONTROL STAY 3R3Q674820 3R3Q67482-0 $33.81 1
(9) BOLT 9101E35620M 910113-5620 $1.30 3
(10) REMOTE CONTROL STAY COVER 3R3674831M 3R3-67483-0 $7.66 1
(11) BOLT 5-35 (WITH WASHER) 3BJ674850M 3BJ-67485-0 $3.05 2
(12) GROMMET 3BJ837320M 3BJ-83732-0 $13.89 1
(13) CABLE CLIP 3R3838200M 3R3-83820-0 $8.60 1
(14) BOLT (OR 910113-5616) 9101E35616M 910113-5616 THROTTLE LEVER STOPPER / CABLE BRACKET $1.15 2
(15) SHIFT ARM (REMOTE CONTROL) 3R3661280M 3R3-66128-0 $4.12 1
(16) SHIFT LEVER ROD 3BJ661340M 3BJ-66134-0 $5.58 1
(17) NUT 9301030500M 930103-0500 $0.86 1
(18) SPACER 5-9.5-5 3BJ661380M 3BJ-66138-0 $1.30 1
(19) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(20) SHIFT LEVER (REMOTE CONTROL) 3R3661290M 3R3-66129-0 $3.82 1
(21) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(22) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(23) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(24) ROD SNAP 5-3 3C8637330M 3C8-63733-0 SHIFT LEVER $1.45 1
(25) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 3
(26) CABLE JOINT 3B7837152M 3B7-83715-0 $4.83 3
(27) THROTTLE ROD (REMOTE CONTROL) 3R3637090M 3R3-63709-0 $5.21 1
(28) ROD SNAP ø 3B 346671961M 346-67196-1 THROTTLE LEVER $2.56 1
(29) THROTTLE LEVER (REMOTE CONTROL) 3R3839100M 3R3-83910-0 $3.97 1
(30) THROTTLE LEVER (REMOTE CONTROL) 3R3839100M 3R3-83910-0 $3.97 1
(31) COLLAR 6.2-9-30.8 3R3839131M 3R3-83913-1 $3.14 1
(32) SNAP PIN D=8 9516030800M 951603-0800 $0.70 3
(33) THROTTLE LEVER STOPPER 3BJ839140M 3BJ-83914-0 $5.73 1
(34) STEERING BRACKET 3V5Q620010 3V5Q62001-0 $44.21 1
(35) BOLT 9161E31045M 9161E3-1045 $5.89 2
(36) WASHER 9401E31000M 940113-1000 $1.50 2
(37) CHOKE ROD 3BD671920M 3BD671920M FOR MP $11.16 1
(38) SEPARATE CORD 369838830M 369-83883-0 FOR MP $0.00 1 Sold Out View More Details
(39) BOLT 9101030612M 910113-0612 FOR MP $0.84 1
