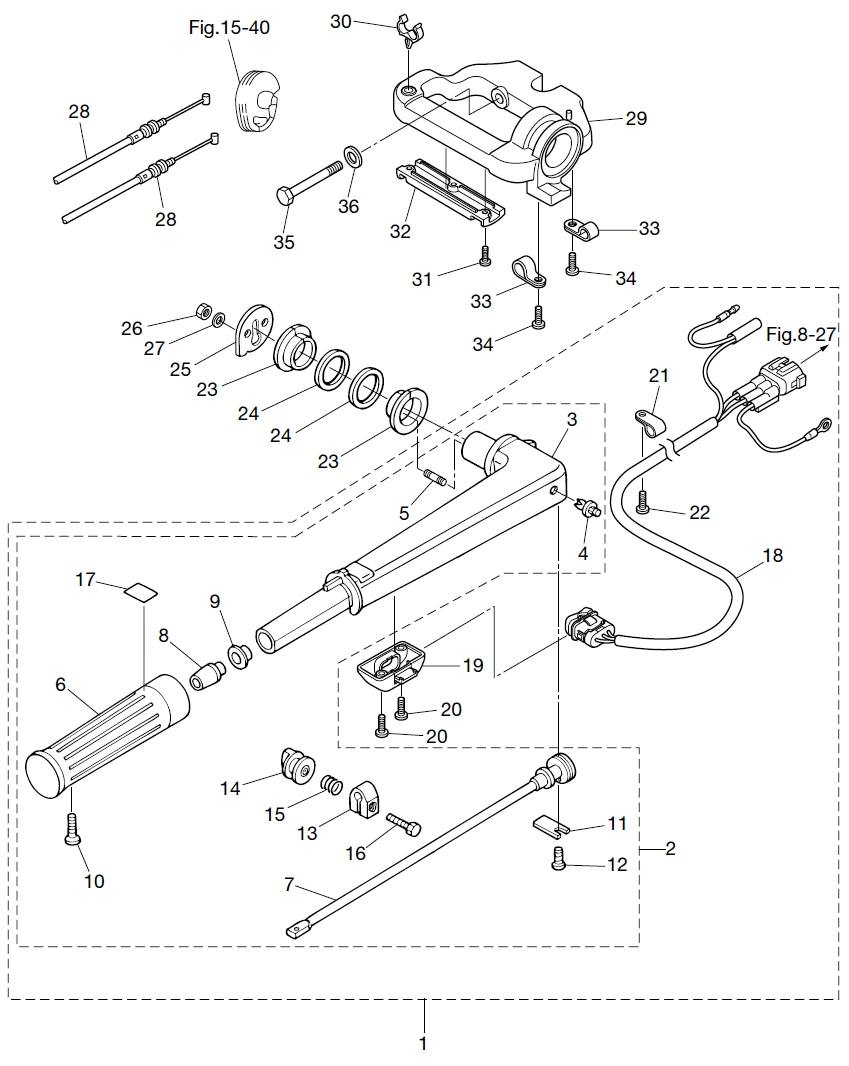

14. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE ASSY(2) TILLER HANDLE ASSY(3) TILLER HANDLE(4) PLASTIC RIVET 6.5(5) STUD(6) GRIP(7) THROTTLE SHAFT(8) THROTTLE SHAFT DAMPER(9) BUSHING 14-15.8-7(10) SCREW(11) THROTTLE SHAFT SUPPORT(12) SCREW(13) FRICTION PIECE(14) ADJUSTING NUT(15) SPRING(16) BOLT(17) THROTTLE DECAL(18) PTT SWITCH ASSY(19) SWITCH BOX(20) SCREW(20) SCREW(21) CLAMP 6-9.5L(22) SCREW(23) BUSHING(23) BUSHING(24) WASHER 39-52-1(24) WASHER 39-52-1(25) COVER(26) NUT(27) WASHER(28) THROTTLE WIRE(28) THROTTLE WIRE(29) STEERING BRACKET(30) CORD HOLDER(31) SCREW(32) CORD HOLDER(33) CLAMP 6-9.5L(33) CLAMP 6-9.5L(34) SCREW(34) SCREW(35) BOLT 10-80(36) WASHER



Parts List
2013 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE ASSY 3BKQ630032 3BKQ63003-2 FOR EFT $154.19 1
(2) TILLER HANDLE ASSY 3BHQ630030 3BHQ63003-0 FOR MF/EF $78.95 1
(3) TILLER HANDLE 3V1Q630113 3V1Q63011-0 $49.18 1
(4) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(5) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(6) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(7) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(8) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(9) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(10) SCREW 9208030518M 9208E3-0518 $0.92 1
(11) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(12) SCREW 9215E30612M 9215E3-0612 $0.93 1
(13) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(14) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(15) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(16) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(17) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(18) PTT SWITCH ASSY 3BJ726150M 3BJ-72615-0 FOR EFT $73.21 1
(19) SWITCH BOX 3V1760320M 3V1-76032-0 FOR EFT $25.93 1
(20) SCREW 9215E30516M 9215E3-0516 FOR EFT $0.84 2
(21) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR EFT $1.41 1
(22) SCREW 9215E30512M 9215E3-0512 FOR EFT $0.83 1
(23) HANDLE BUSHING 3V1631020M 3V1-63102-0 $2.58 2
(24) WASHER 33.5-43-3 3V1631081M 3V1-63108-1 $1.85 2
(25) COVER 3BJ631070M 3BJ-63107-0 $4.24 1
(26) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(27) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(28) THROTTLE CABLE 3V1636000M 3V1-63600-0 $17.26 2
(29) STEERING BRACKET 3V1Q620011 3V1Q62001-0 $63.78 1
(30) CORD HOLDER 3V1620040M 3V1-62004-0 $24.25 1
(31) SCREW 9215030408M 921503-0408 $0.75 3
(32) CORD HOLDER 3V2620040M 3V2-62004-0 $2.08 1
(33) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR EFT $1.41 2
(34) SCREW 9215E30510M 9215E3-0510 FOR EFT $0.81 2
(35) BOLT 10-80 3R3620942M 3R3-62094-2 $6.84 2
(36) WASHER 9401E31000M 940113-1000 $1.50 2
