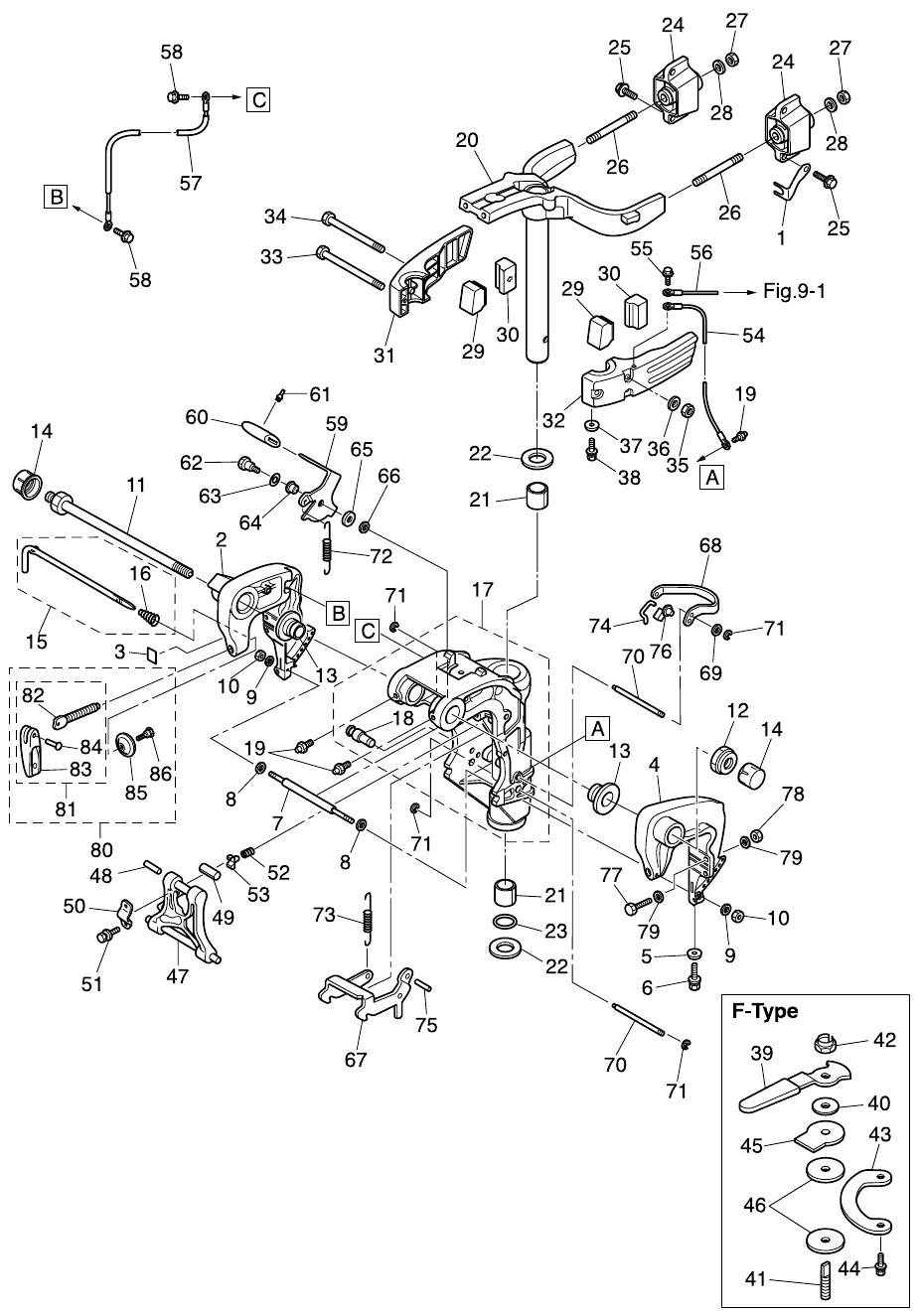

11. BRACKET (MANUAL)

Click Here for Microfiche Usage Tip
(1) LOCK PLATE(2) CLAMP BRACKET (R)(3) CO-PILOT DECAL(4) CLAMP BRACKET (L)(5) ANODE(6) BOLT(7) DISTANCE PIECE(8) WASHER(8) WASHER(9) WASHER(9) WASHER(10) NUT(10) NUT(11) SWIVEL BRACKET SHAFT ASSY(12) NYLON NUT 7/8-14(13) BUSHING(13) BUSHING(14) CAP NUT(14) CAP NUT(15) THRUST ROD ASSY(16) THRUST ROD SPRING(17) SWIVEL BRACKET ASSY(18) PIN(19) GREASE FITTING(19) GREASE FITTING(20) STEERING SHAFT ASSY(21) BUSHING 28-31-35(21) BUSHING 28-31-35(22) THRUST PLATE (UPPER)(22) THRUST PLATE (UPPER)(23) O-RING 3.5-25.7(24) RUBBER MOUNT (UPPER)(24) RUBBER MOUNT (UPPER)(24) RUBBER MOUNT (UPPER)(24) RUBBER MOUNT (UPPER)(25) BOLT(25) BOLT(26) STUD 10-95(26) STUD 10-95(27) NYLON NUT 10-P1.5(27) NYLON NUT 10-P1.5(28) WASHER(28) WASHER(29) DAMPER (LOWER)(29) DAMPER (LOWER)(30) RUBBER MOUNT (LOWER)(30) RUBBER MOUNT (LOWER)(31) MOUNT BRACKET (R)(32) MOUNT BRACKET (L)(33) BOLT(34) BOLT(35) NUT(36) WASHER 8.1-16-1.5(37) ANODE(38) BOLT(39) FRICTION LEVER(40) WASHER 8.1-20-0.8(41) BOLT(42) NYLON NUT 8-P1.25(43) PLATE(44) BOLT(45) WASHER(46) DISC(47) TILT STOPPER(48) SPRING PIN(49) BUSHING 8.2-10-26.5(50) SETTING PLATE(51) BOLT(52) FRICTION SPRING(53) SETTING PIECE(54) GROUND L=130(55) BOLT(56) GROUND L=130(57) GROUND L=130(58) BOLT(58) BOLT(59) REVERSE LOCK LEVER(60) REVERSE LOCK LEVER GRIP(61) STOPPER(62) SHOULDER BOLT 6-8(63) WASHER(64) BUSHING 8.1-20(65) WASHER 8.5-18-1.6(66) WASHER 6-16-1.5(67) REVERSE LOCK(68) REVERSE LOCK ARM(69) COLLAR(70) REVERSE LOCK SHAFT(70) REVERSE LOCK SHAFT(71) E-RING D=5(71) E-RING D=5(71) E-RING D=5(71) E-RING D=5(72) REVERSE LOCK LEVER SPRING(73) REVERSE LOCK SPRING(74) REVERSE LOCK LINK(75) SPRING PIN(76) ROD SNAP 3.5-2(77) BOLT(78) NUT(79) WASHER(79) WASHER(80) CLAMP SCREW KIT(81) CLAMP SCREW ASSY(82) CLAMP SCREW(83) CLAMP SCREW HANDLE(84) RIVET 3-22(85) CLAMP SCREW PAD(86) SHOULDER BOLT



Parts List
2013 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: BRACKET (MANUAL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) WATER PIPE LOCK PLATE 3R3652050M 3R3-65205-0 $4.56 1
(2) CLAMP BRACKET (RIGHT) 3BJQ621120 3BJQ62112-0 STARBOARD SIDE $73.60 1
(3) LABEL CO-PILOT 3H8720490M 3H8-72049-0 FOR MF & EF/EFT $2.31 1
(4) CLAMP BRACKET (LEFT) 3BJQ621130 3BJQ62113-0 PORT SIDE $73.60 1
(5) ANODE 338602182M 338-60218-2 $9.20 1
(6) BOLT 9101035620M 910103-5620 $1.30 1
(7) DISTANCE PIECE 3V6621170M 3V6-62117-0 $10.40 1
(8) WASHER 9401E30600M 9401E3-0600 DISTANCE PIECE SIDE $0.00 2 Sold Out View More Details
(9) WASHER 9401E30600M 9401E3-0600 NUT SIDE $0.00 2 Sold Out View More Details
(10) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(11) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $41.18 1
(12) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(13) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(14) CAP BRACKET BOLT 346621270M 346-62127-0 FOR MF/EF $2.31 2
(15) THRUST ROD ASSY 3BJ621230M 3BJ-62123-0 $36.99 1
(16) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(17) SWIVEL BRACKET ASSY 3BJQ623090 3BJQ62309-0 $206.15 1
(18) PIN 3BA663140M 3BA-66314-0 $0.00 1 Sold Out View More Details
(19) GREASE FITTING 344671771M 344-67177-0 $2.56 3 Sold Out View More Details
(20) STEERING SHAFT ASSY 3BKQ620100 3R3Q62010-1 $455.91 1
(21) BUSHING 28-31-35 3R3624170M 3R3-62417-0 $2.31 2
(22) THRUST PLATE 28.5-48-1 3H8624231M 3H8-62423-1 $1.93 2
(23) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.10 1 Sold Out View More Details
(24) RUBBER MOUNT (UPPER) 3BJ613010M 3BJ-61301-0 FOR TRANSOM S&L $39.65 2
(24) RUBBER MOUNT (UPPER) 3BA613010M 3R3613010M FOR TRANSOM UL $82.46 2
(25) BOLT 9101E35830M 9101E3-5830 $1.89 4
(26) STUD BOLT 10-95 3R3613131M 3R3-61313-1 $7.65 2
(27) NYLON NUT 9304031000M 930403-1000 $4.56 2
(28) WASHER 9401E31000M 940113-1000 $1.50 2
(29) DAMPER (LOWER) 3BJ613360M 3BJ-61336-0 $26.50 2
(30) RUBBER MOUNT (LOWER) 3BJ613020M 3BJ-61302-0 $11.78 2
(31) MOUNT BRACKET (RIGHT) 3BJQ614010 3BJQ61401-0 STARBOARD SIDE $36.81 1
(32) MOUNT BRACKET (LEFT) 3BJQ614020 3BJQ61402-0 PORT SIDE $36.81 1
(33) BOLT 9101E30855M 9101E3-0855 $1.67 1
(34) BOLT 9101E30885M 9101E3-0885 $3.50 2
(35) NUT 9301E30800M 9301E3-0800 $1.99 3 Sold Out View More Details
(36) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 3
(37) ANODE 338602182M 338-60218-2 $9.20 1
(38) BOLT 9101035620M 910103-5620 $1.30 1
(39) CO- PILOT HANDLE 3AA624410M 3AA-62441-0 FOR F-TYPE $12.91 1
(40) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR F-TYPE $1.48 1
(41) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR F-TYPE $6.74 1
(42) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 FOR F-TYPE $5.25 1
(43) PLATE CO-PILOT 3R3624470M 3R3-62447-0 FOR F-TYPE $4.28 1
(44) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR F-TYPE $1.15 2
(45) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR F-TYPE $5.59 1
(46) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR F-TYPE $7.91 2
(47) TILT STOPPER 3G2Q629931 3G2Q62993-1 $32.39 1
(48) SPRING PIN 5-40 9514030540M 951403-0540 $1.18 1
(49) BUSHING 8.2-10-26.5 350624370M 350-62437-0 $1.55 1
(50) TILT STOPPER SETTING PLATE 350624391M 350-62439-1 $5.29 1
(51) BOLT 9101E35818M 9101E3-5818 $1.64 2
(52) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(53) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(54) GROUND CABLE 398623961M 398-62396-1 MOUNT BRACKET-SWIVEL BRACKET $5.75 1 Sold Out View More Details
(55) BOLT 9101035610M 910103-5610 $1.02 2
(56) GROUND CABLE 398623961M 398-62396-1 MOUNT BRACKET-DRIVE SHAFT HOUSING $5.75 1 Sold Out View More Details
(57) GROUND CABLE 398623961M 398-62396-1 CLAMP BRACKET-SWIVEL BRACKET $5.75 1 Sold Out View More Details
(58) BOLT 9101035612M 910103-5612 $1.07 2
(59) REVERSE LOCK LEVER 3BA663110M 3BA-66311-0 $34.11 1
(60) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 $3.62 1
(61) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
(62) SHOULDER BOLT 6-8 3AL052540M 3AL-05254-0 $10.03 1
(63) WASHER 9401E30800M 9401E3-0800 $0.65 1
(64) BUSHING 8.1-20 3AL052120M 3AL-05212-0 $1.64 1
(65) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 1
(66) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(67) REVERSE LOCK 3BA663220M 3BA-66322-0 $29.63 1
(68) REVERSE LOCK ARM 3BA663131M 3BA663131M $11.56 1
(69) COLLAR 3BA632070M 3BA-63207-0 $1.93 1
(70) SHAFT REVERSE LOCK B 3G2663240M 3G2-66324-0 $3.64 2
(71) E-RING D=5 9453030500M 945303-0500 $0.86 4
(72) REVERSE LOCK LEVER SPRING 3BA663230M 3BA-66323-0 $4.75 1
(73) REVERSE LOCK SPRING 3BA663150M 3BA-66315-0 $4.43 1
(74) REVERSE LOCK LINK 3BA663050M 3BA-66305-0 $3.86 1
(75) SPRING PIN 5-35 9514030535M 951403-0535 $1.18 1
(76) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 1
(77) BOLT 9101E30885M 9101E3-0885 OPT $3.50 4
(78) NUT 9301E30800M 9301E3-0800 OPT $1.99 4 Sold Out View More Details
(79) WASHER 9401E30800M 9401E3-0800 OPT $0.65 8
(80) CLAMP SCREW KIT 3AAQ621050 3AAQ62105-0 $56.36 2
(81) CLAMP SCREW ASSY 3AAQ621080 3AAQ62108-0 $53.53 1
(82) CLAMP SCREW 3AA621060M 3AA-62106-0 $21.12 1
(83) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 1
(84) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 1
(85) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(86) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
