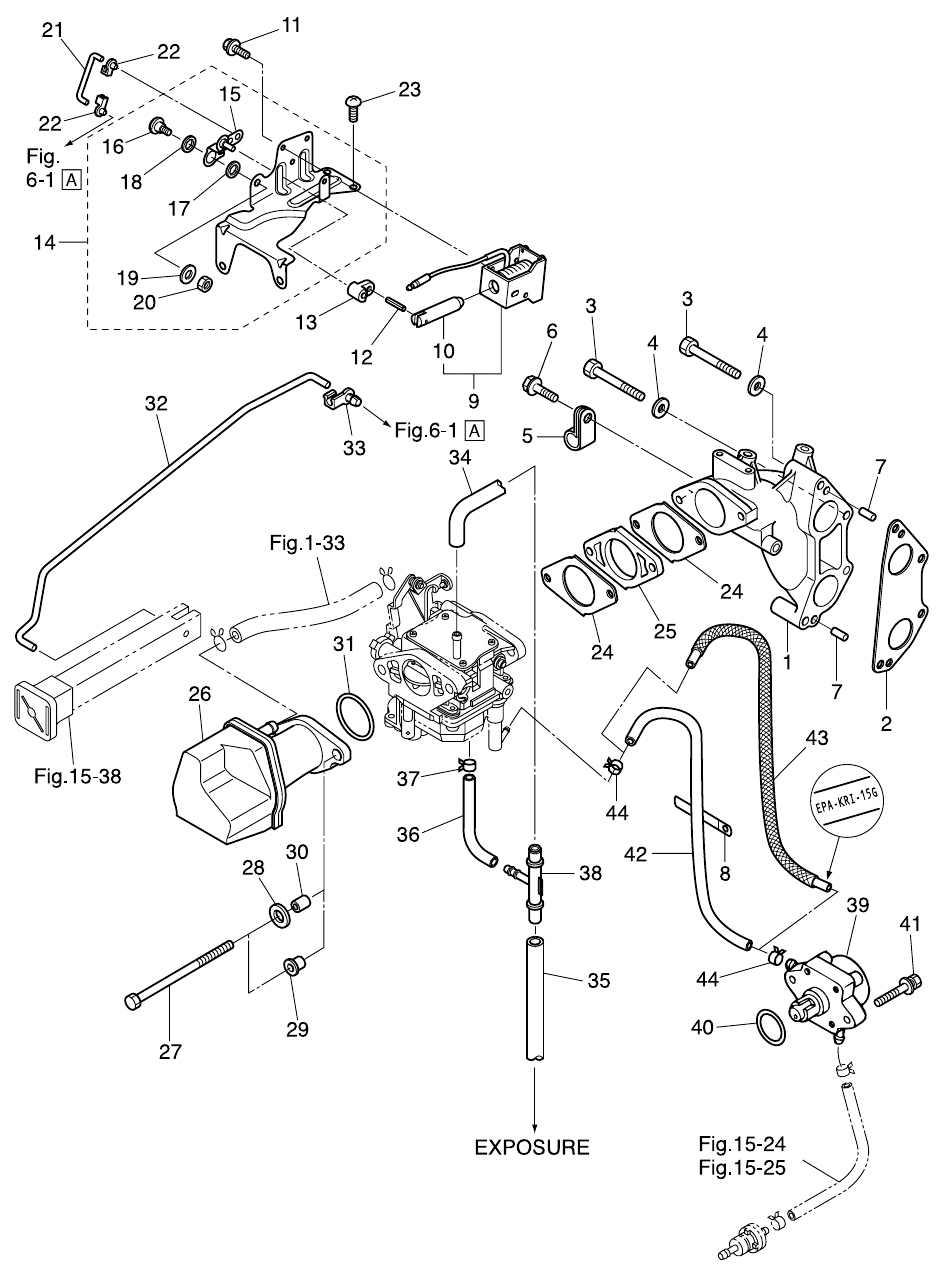

5. INTAKE MANIFOLD & FUEL PUMP

Click Here for Microfiche Usage Tip
(1) INTAKE MANIFOLD(2) INTAKE MANIFOLD GASKET(3) BOLT(3) BOLT(4) WASHER(4) WASHER(5) CLAMP 6.5-14L(6) BOLT(7) DOWEL PIN 6-12(7) DOWEL PIN 6-12(8) CLAMP 6.5-47.5P(9) CHOKE SOLENOID(10) PLUNGER(11) SCREW(12) SPRING PIN 3-12(13) CHOKE SOLENOID HOOK(14) CHOKE SOLENOID BRACKET ASSY(15) CHOKE LEVER(16) SCREW(17) BUSHING 8.1-15-2.9(18) WASHER 8.1-15-1.3(19) WASHER(20) NUT(21) LINK ROD(22) ROD SNAP 1.5-2(22) ROD SNAP 1.5-2(23) SCREW(24) CARBURETOR GASKET(24) CARBURETOR GASKET(25) INSULATOR(26) INTAKE SILENCER ASSY(27) BOLT(28) WASHER(29) COLLAR 6.1-9-7.4(30) COLLAR 6.2-9-7.4(31) SEAL RING 2.4-35(32) CHOKE ROD(33) ROD SNAP 3.2-2(34) BREATHER HOSE L=290(35) BREATHER HOSE L=50(36) HOSE(37) CLIP o7(38) NIPPLE(39) FUEL PUMP ASSY(40) O-RING 3.5-25.7(41) BOLT(42) HOSE(43) FUEL HOSE W/PROTECTOR L=260(44) CLIP o9.4(44) CLIP o9.4

Displaying 1 to 44 (of 44 products)

Parts List
2013 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: INTAKE MANIFOLD & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3BJ020910M 3BJ-02091-0 $63.03 1
(2) INTAKE MANIFOLD GASKET 3BJ021040M 3BJ-02104-0 $4.72 1
(3) BOLT 9161F40645M 9161F4-0645 $2.36 5
(4) WASHER 9401E30600M 9401E3-0600 $0.00 5 Sold Out View More Details
(5) CLAMP 6.5-14L 345069150M 345-06915-0 $4.95 1
(6) BOLT 9101035612M 910103-5612 $1.15 1 Sold Out View More Details
(7) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 2
(8) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 1
(9) CHOKE SOLENOID 3BJ760500M 3BJ-76050-0 FOR EP/EPT $70.89 1
(10) PLUNGER 361760730M 361-76073-0 $9.41 1 Sold Out View More Details
(11) SCREW 9215036406M 921503-6406 FOR EP/EPT $1.44 4
(12) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP/EPT $0.88 1
(13) CHOKE SOLENOID HOOK 3BJ760570M 3BJ-76057-0 FOR EP/EPT $2.90 1
(14) CHOKE SOLENOID BRACKET ASSY 3BJ760780M 3BJ-76078-0 FOR EP/EPT $44.07 1
(15) CHOKE LEVER 3BJ671520M 3BJ-67152-0 $9.35 1
(16) SCREW 3BJ838210M 3BJ-83821-0 $8.31 1 Sold Out View More Details
(17) BUSHING 8.1-15-2.9 3BJ637210M 3BJ-63721-0 $2.81 1
(18) WASHER 8.1-15-1.3 3BJ052450M 3BJ-05245-0 $1.55 1
(19) WASHER 9401030400M 940103-0400 $0.63 1
(20) NUT 9301030400M 930103-0400 $0.61 1
(21) LINK ROD 3BJ760760M 3BJ-76076-0 FOR EP/EPT $3.27 1
(22) ROD SNAP 3V1671960M 3V1-67196-0 FOR EP/EPT $2.24 2 Sold Out View More Details
(23) SCREW 9215E30510M 9215E3-0510 FOR EP/EPT $0.87 2
(24) CARBURETOR GASKET 3BJ020110M 3BJ-02011-0 $2.76 2 Sold Out View More Details
(25) INSULATOR 3BJ039520M 3BJ-03952-0 15/20PS $7.77 1
(26) INTAKE SILENCER 3BJ024090M 3BJ-02409-0 $28.35 1
(27) BOLT 6 -100 3R0032150M 916113-0695 $6.65 2
(28) WASHER 9401E30600M 9401E3-0600 FOR EP/EPT $0.00 2 Sold Out View More Details
(29) COLLAR 6.1-14-8.9 3BJ062830M 3BJ-06283-0 FOR MF & EF/EFT $4.72 2
(30) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 FOR EP/EPT $1.91 2
(31) SEAL RING 2.4-35 3BJ024190M 3BJ-02419-0 $2.82 1
(32) CHOKE LINK ROD 3BH671920M 3BH-67192-0 FOR MF & EF/EFT $6.63 1
(33) ROD SNAP 3.2-2 3BJ671960M 3BJ-67196-0 FOR MF & EF/EFT $1.70 1
(34) BREATHER HOSE 3BJ077351M 3BJ-07735-1 CARBURETOR-T-NIPPLE $5.96 1 Sold Out View More Details
(35) BREATHER HOSE 3BA077350M 3BA-07735-0 T-NIPPLE-EXPOSURE $2.07 1
(36) RUBBER HOSE 98AL30200M 98AL-3-0200 CARBURETOR-T-NIPPLE / 98AL-301000 $0.00 1 Sold Out View More Details
(37) CLIP ø7 369700982M 369-70098-1 $1.84 1 Sold Out View More Details
(38) NIPPLE 3BJ011761M 3BJ-01176-1 $4.61 1
(39) FUEL PUMP 3H8040001M 3H8-04000-1 $72.28 1
(40) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.18 1
(41) BOLT 9101E35625M 910113-5625 $1.57 2
(42) RUBBER HOSE 98AB50260M 98AB-5-0260 FUEL PUMP-CARBURETOR / STD 98AB-501000 $12.20 1
(43) FUEL HOSE W/PROTECTOR L=260 3BJ021600M 3BJ-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $24.22 1
(44) CLIP ø 9.5 3AB351430M 121-35143-0 $1.39 2
Displaying 1 to 44 (of 44 products)
