15. TILLER HANDLE

Click Here for Microfiche Usage Tip

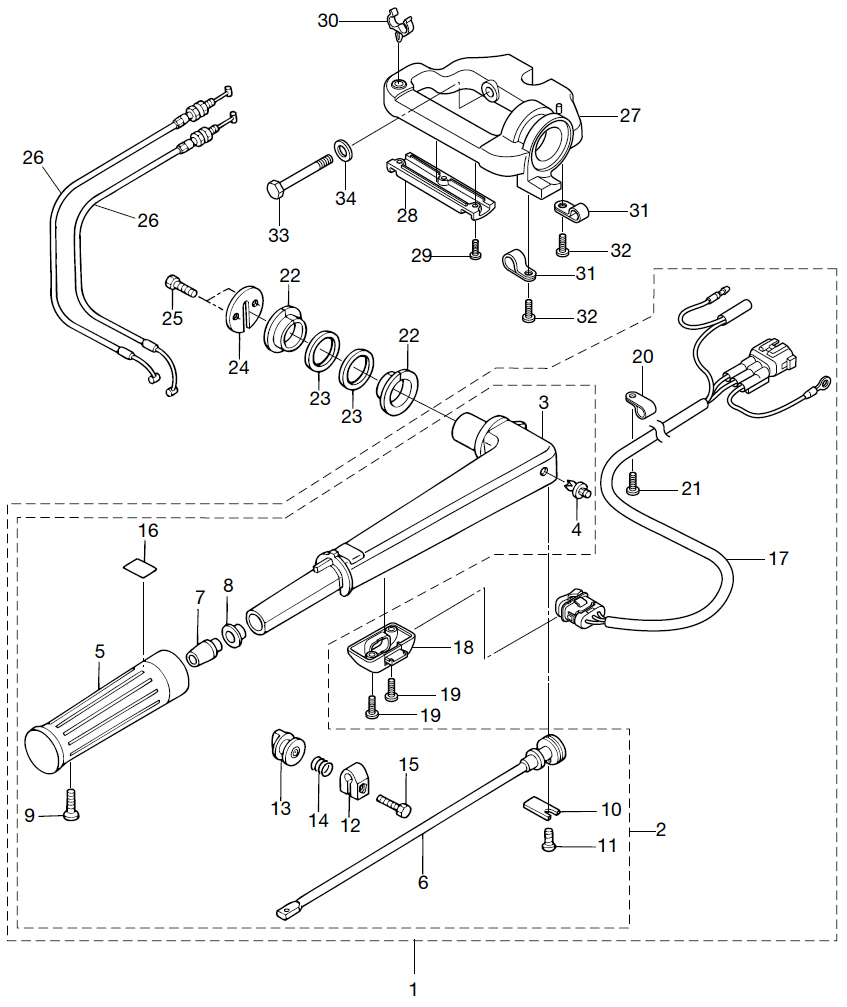

(1) TILLER HANDLE ASSY(2) TILLER HANDLE ASSY(3) TILLER HANDLE(4) PLASTIC RIVET 6.5(5) GRIP(6) THROTTLE SHAFT(7) THROTTLE SHAFT DAMPER(8) BUSHING 14-15.8-7(9) SCREW(10) THROTTLE SHAFT SUPPORT(11) SCREW(12) FRICTION PIECE(13) ADJUSTING NUT(14) SPRING(15) BOLT(16) THROTTLE DECAL(17) PTT SWITCH ASSY(18) SWITCH BOX(19) SCREW(19) SCREW(20) CLAMP 6-9.5L(21) SCREW(22) BUSHING(22) BUSHING(23) WASHER 39-52-1(23) WASHER 39-52-1(24) COVER(25) BOLT(26) THROTTLE WIRE(26) THROTTLE WIRE(27) STEERING BRACKET(28) CORD HOLDER(29) SCREW(30) CORD HOLDER(31) CLAMP 6-9.5L(31) CLAMP 6-9.5L(32) SCREW(32) SCREW(33) BOLT 10-80(34) WASHER



Parts List
2013 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE ASSY 3V2Q630031 3V2Q63003-1 FOR EFT $170.35 1
(2) TILLER HANDLE ASSY 3V1Q630034 3V1Q63003-0 FOR MF/EF $119.06 1
(3) TILLER HANDLE 3V1Q630113 3V1Q63011-0 $49.18 1
(4) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(5) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(6) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(7) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(8) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(9) SCREW 9208030518M 9208E3-0518 $0.92 1
(10) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(11) SCREW 9215E30612M 9215E3-0612 $0.93 1
(12) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(13) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(14) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(15) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(16) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(17) PTT SWITCH ASSY 3V1726150M 3V1-72615-0 FOR EFT $58.24 1
(18) SWITCH BOX 3V1760320M 3V1-76032-0 FOR EFT $25.93 1
(19) SCREW 9215E30516M 9215E3-0516 FOR EFT $0.84 2
(20) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR EFT $1.41 1
(21) SCREW 9215E30512M 9215E3-0512 FOR EFT $0.83 1
(22) HANDLE BUSHING 3V1631020M 3V1-63102-0 $2.58 2
(23) WASHER 33.5-43-3 3V1631081M 3V1-63108-1 $1.85 2
(24) COVER 3V1631070M 3V1-63107-0 $3.57 1
(25) BOLT 9101E30616M 9101E3-0616 $0.98 2
(26) THROTTLE CABLE 3V1636000M 3V1-63600-0 $17.26 2
(27) STEERING BRACKET 3V1Q620011 3V1Q62001-0 FOR EFT $63.78 1
(28) CORD HOLDER 3V1620040M 3V1-62004-0 FOR EFT $24.25 1
(29) SCREW 9215030408M 921503-0408 FOR EFT $0.75 3
(30) CORD HOLDER 3V2620040M 3V2-62004-0 FOR EFT $2.08 1
(31) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR EFT $1.41 2
(32) SCREW 9215E30510M 9215E3-0510 FOR EFT $0.81 2
(33) BOLT 10-80 3R3620942M 3R3-62094-2 FOR EFT $6.84 2
(34) WASHER 9401E31000M 940113-1000 FOR EFT $1.50 2
