8. MAGNETO & ELECTRIC PARTS

Click Here for Microfiche Usage Tip

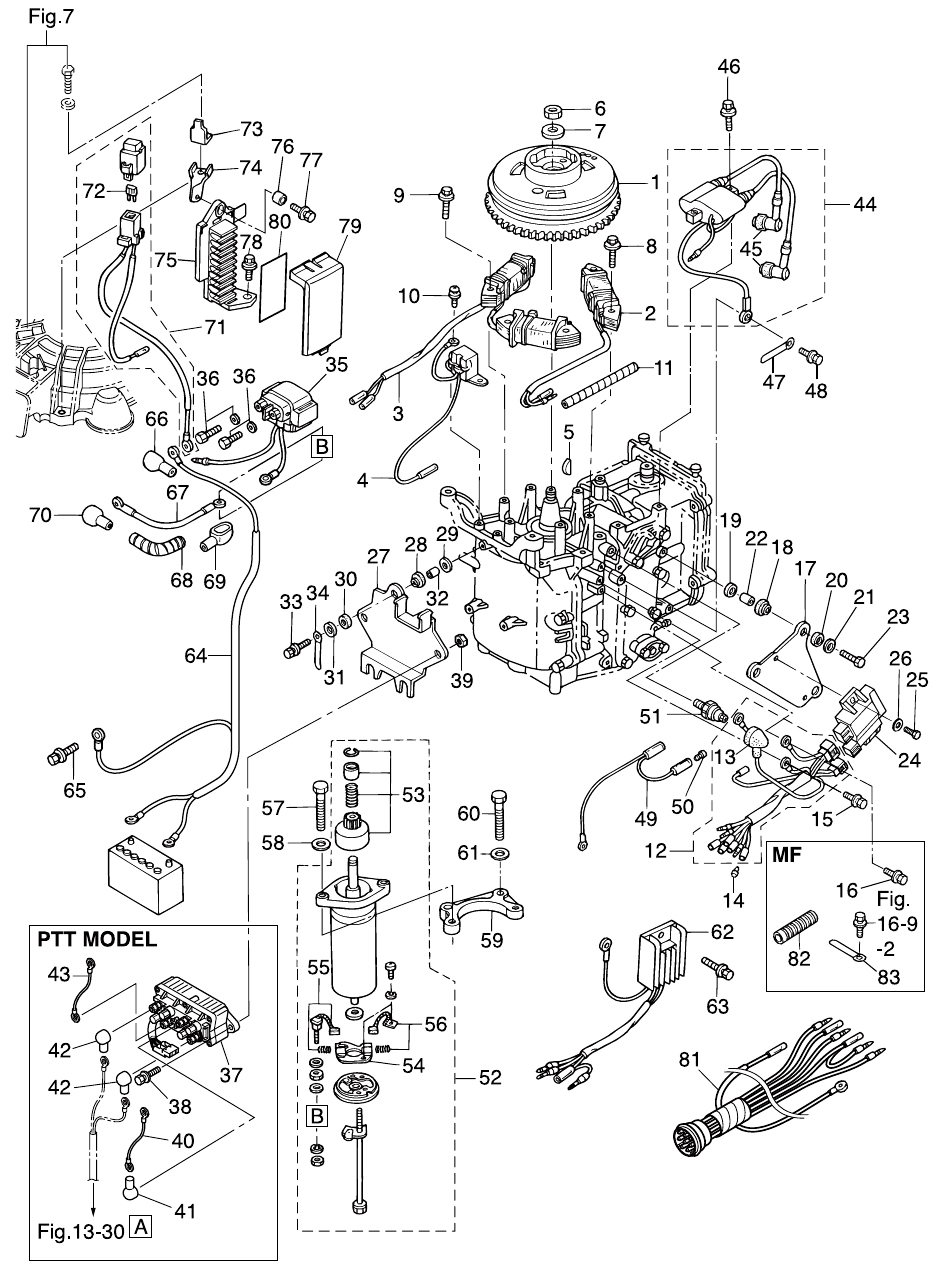

(1) FLYWHEEL W/GEAR(2) EXCITER COIL(3) ALTERNATOR ASSY(4) PULSAR COIL(5) KEY T=4(6) NUT 12-P1.25(7) WASHER(8) BOLT(9) BOLT(10) SCREW(11) SPIRAL TUBE PROTECTOR o10-100(12) CD UNIT CORD ASSY(13) GROMMET(14) CABLE TERMINAL PLUG(14) CABLE TERMINAL PLUG(15) BOLT(16) BOLT(17) CD UNIT BRACKET(18) RUBBER MOUNT 8.5-18-7(19) WASHER 6-16-1.5(20) RUBBER MOUNT 9-16-4.3(21) WASHER 6-16-1.5(22) COLLAR 6.2-9-7.4(23) BOLT(24) CD UNIT(25) PRE-COATED BOLT 6-16(26) WASHER 6-16-1.5(27) ELECTRIC BRACKET ASSY(28) RUBBER MOUNT 8.5-18-7(29) WASHER 6-16-1.5(30) RUBBER MOUNT 9-16-4.3(31) WASHER 6-16-1.5(32) COLLAR 6.2-9-7.4(33) BOLT(34) CLAMP 6.5-87P(35) STARTER SOLENOID(36) BOLT(36) BOLT(37) PTT SOLENOID SWITCH (A)(38) BOLT(39) NUT(40) SOLENOID SWITCH CORD (A) L=80(41) TERMINAL CAP(42) TERMINAL CAP(42) TERMINAL CAP(43) SOLENOID SWITCH CORD (B) L=150(44) IGNITION COIL W/R-CAP(45) PLUG CAP W/RESISTANCE(46) BOLT(47) CLAMP 6.5-47.5P(48) BOLT(49) SEPARATE CORD (BLK)(50) CABLE TERMINAL PLUG(51) OIL PRESSURE SWITCH(52) STARTER MOTOR ASSY(53) PINION ASSY(54) BRUSH HOLDER(55) POSITIVE BRUSH(56) NEGATIVE BRUSH(57) BOLT(58) WASHER(59) STARTER MOTOR BRACKET(60) BOLT(61) WASHER(62) RECTIFIER COMPLETE(63) BOLT(64) BATTERY CABLE L=2500(65) BOLT(66) TERMINAL CAP(67) STARTER CABLE L=200(68) SPIRAL TUBE PROTECTOR o10-100(69) TERMINAL CAP(70) TERMINAL CAP(71) FUSE WIRE ASSY L=185(72) FUSE 20A(73) FUSE HOLDER BRACKET(74) CABLE TERMINAL HOLDER STAY(75) CABLE TERMINAL HOLDER(76) COLLAR 6-8-6(77) BOLT(78) BOLT(79) COVER(80) WIRING DIAGRAM DECAL(80) WIRING DIAGRAM DECAL(81) CORD ASSY(82) PROTECTOR o24-70(83) CLAMP 6.5-87P



Parts List
2013 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: MAGNETO & ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3AA060910M 3AA-06091-0 FF-51 $279.34 1
(2) EXCITER COIL 3AA060210M 3AA-06021-0 $48.03 1
(3) ALTERNATER 3AA060230M 3AA-06023-0 FOR EF/EFT & EP/EPT $61.59 1
(4) PULSER COIL 3V1060710M 3V1-06071-0 $29.97 1
(5) KEY 3T5101310M 3T5-10131-0 MAGNETO $1.56 1
(6) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(7) WASHER 9401211200M 940121-1200 $0.97 1
(8) BOLT 9101035630M 910113-5630 EXCITER COIL $1.15 2
(9) BOLT 9101035630M 910113-5630 ALTERNATOR / FOR EF/EFT & EP/EPT $1.15 4
(10) SCREW 9215030512M 921503-5512 $0.83 2
(11) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 ALTERNATOR & EXCITER CORD / FOR EF/EFT & EP/EPT $6.21 1
(12) C.D. UNIT CORD ASSY 3AA061670M 3AA-06167-0 $82.60 1
(13) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(14) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 REMOTE CONTROL / LIGHT GREEN & WHITE $1.50 2
(14) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 STOP SWITCH / BROWN & BLACK FOR EP/EPT $1.50 2
(15) BOLT 9101035612M 910103-5612 GROUND CABLE $1.07 1
(16) BOLT 9101035612M 910103-5612 FOR MF $1.07 1
(17) CD UNIT BRACKET 3V1060611M 3V1-06061-1 $0.00 1 Sold Out View More Details
(18) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(19) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 CYLINDER BLOCK SIDE $1.59 3 Sold Out View More Details
(20) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 CD UNIT SIDE $1.59 3 Sold Out View More Details
(22) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(23) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 3
(24) C.D. UNIT (CU7256) 3AA060600M 3AA-06060-0 $165.19 1
(25) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 $1.43 2
(26) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(27) ELECTRIC BRACKET ASSY 3V1069001M 3V1-06900-1 FOR EF/EFT & EP/EPT $23.60 1
(28) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(29) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 CYLINDER BLOCK SIDE $1.59 3 Sold Out View More Details
(30) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(31) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 STARTER SOLENOIDO SIDE $1.59 3 Sold Out View More Details
(32) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(33) BOLT 9101E30620M 9101E3-0620 $1.04 3
(34) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 FOR EP/EPT $1.53 1
(35) STARTER SOLENOID 3H8760400M 3H8-76040-0 FOR EF/EFT & EP/EPT $67.57 1
(36) BOLT 9101035610M 910103-5610 $1.02 2
(37) POWER TILT SOLENOID SWITCH A 3Z0725800M 3Z0-72580-0 FOR EFT & EPT $126.92 1
(38) BOLT 9101E35620M 910113-5620 FOR EFT & EPT $1.30 2
(39) NUT 9301E30600M 9301E3-0600 FOR EFT & EPT $0.52 2 Sold Out View More Details
(40) CORD A 3C8725820M 3C8-72582-0 RED / FOR EFT & EPT $4.38 1
(41) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED CORD / FOR EFT & EPT $2.25 1
(42) TERMINAL CAP 3Y1761450M 3Y1-76145-0 PTT CORD / FOR EFT & EPT $2.25 2
(43) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 BLACK / FOR EFT & EPT $4.83 1
(44) IGNITION COIL 3V1060400M 3V1-06040-0 $54.23 1
(45) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 2
(46) BOLT 9101035625M 910103-5625 $1.47 2
(47) CLAMP 6.5-47.5P 309069720M 309-06972-0 ALTERNATOR & EXCITER CORD $2.07 1
(48) BOLT 9101035616M 910103-5616 $1.15 1
(49) SEPARATE CORD ( BLACK) 3V5726780M 3V5-72678-0 YELLOW & BLACK $6.84 1
(50) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 YELLOW / SEPARATE CORD $1.50 1
(51) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(52) STARTER MOTOR 3AA760100M 3AA-76010-0 FOR EF/EFT & EP/EPT $430.05 1
(53) PINION 350760150M 350-76015-0 $127.93 1
(54) BRUSH HOLDER 3AA760140M 3AA-76014-0 $0.00 1 Sold Out View More Details
(55) POSITIVE BRUSH (WITH SPRING) 3AA760120M 3AA-76012-0 SPRING $30.37 1
(56) NEGATIVE BRUSH (WITH SPRING) 3AA760130M 3AA-76013-0 SPRING $30.37 1
(57) BOLT 9161F40830M 9161F4-0830 STARTER MOTOR $0.00 2 Sold Out View More Details
(58) WASHER 9401E30800M 9401E3-0800 STARTER MOTOR $0.65 2
(59) STARTER MOTOR BRACKET 3V1760111M 3V1-76011-1 FOR EF/EFT & EP/EPT $30.19 1
(60) BOLT 9161F40830M 9161F4-0830 BRACKET $0.00 2 Sold Out View More Details
(61) WASHER 9401E30800M 9401E3-0800 BRACKET $0.65 2
(62) RECTIFIER 3AA760650M 3AA-76065-0 FOR EF/EFT & EP/EPT $102.12 1
(63) BOLT 9101035616M 910103-5616 $1.15 1
(64) BATTERY CABLE L=2500 3AC761200M 3AC-76120-0 FOR EF/EFT & EP/EPT $65.41 1
(65) BOLT 9101035610M 910103-5610 $1.02 1
(66) TERMINAL CAP 3AA761450M 3AA-76145-0 $2.25 1
(67) STARTER CABLE L=200 3B2761472M 3B2-76147-2 FOR EF/EFT & EP/EPT $16.50 1
(68) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 STARTER CABLE $6.21 1
(69) TERMINAL CAP 3Y0761450M 3Y0-76145-0 $2.25 1
(70) TERMINAL CAP 3Y1761450M 3Y1-76145-0 $2.25 1
(71) FUSE CABLE 3V1760660M 3V1-76066-0 FOR EF/EFT & EP/EPT $32.81 1
(72) FUSE (20A) 3T5762470M 3T5-76247-0 FOR EF/EFT & EP/EPT $2.99 2
(73) FUSE HOLDER STAY 3R0760640M 3R0-76064-0 FOR EF/EFT & EP/EPT $1.44 1
(74) CABLE TERMINAL HOLDER STAY 3V1062841M 3V1-06284-1 FOR EF/EFT & EP/EPT $4.89 1
(75) CABLE TERMINAL HOLDER 3AA062811M 3AA062811M FOR EF/EFT & EP/EPT $13.34 1
(76) COLLAR 6-8-6 174350120M 174-35012-0 $2.86 1
(77) BOLT 9101E35612M 910103-5612 $1.07 1
(78) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 1
(79) COVER 3AA069021M 3AA069021M FOR EF/EFT & EP/EPT $5.41 1
(80) WIRING DIAGRAM DECAL 3V1720280M 3V1-72028-0 FOR EF/EFT $3.32 1
(80) WIRING DIAGRAM DECAL 3V2720280M 3V2-72028-0 FOR EP/EPT $3.02 1
(81) CORD ASSY 3V2761100M 3V2-76110-0 FOR EPT $67.99 1
(82) PROTECTOR 3V1061330M 3V1-06133-0 FOR MF $3.62 1
(83) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 FOR MF $1.53 1
