5. INTAKE MANIFOLD & FUEL PUMP

Click Here for Microfiche Usage Tip

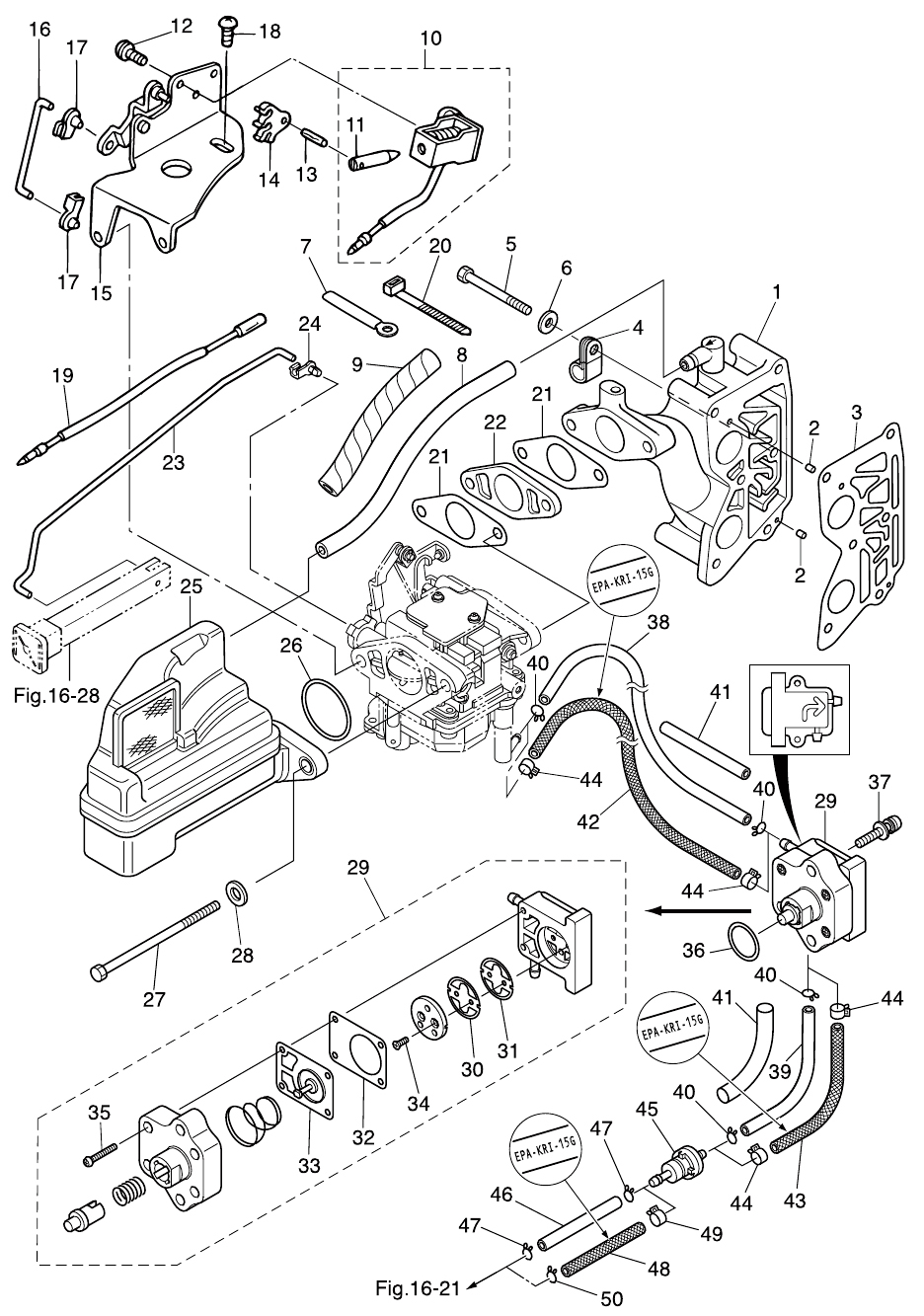

(1) INTAKE MANIFOLD ASSY(2) SPRING PIN 3-10(2) SPRING PIN 3-10(3) INTAKE MANIFOLD GASKET(4) CLAMP 6.5-14L(5) BOLT(6) WASHER(7) CLAMP 6.5-87P(8) HOSE(9) SPIRAL TUBE PROTECTOR o10-100(10) CHOKE SOLENOID(11) PLUNGER(12) SCREW(13) SPRING PIN 3-12(14) CHOKE SOLENOID HOOK(15) CHOKE SOLENOID BRACKET ASSY(16) LINK ROD(17) ROD SNAP 1.5-2(17) ROD SNAP 1.5-2(18) SCREW(19) ASSIST CORD (BLU)(20) BAND 104(21) CARBURETOR GASKET(21) CARBURETOR GASKET(22) INSULATOR(23) CHOKE ROD(24) ROD SNAP 3-B(25) INTAKE SILENCER ASSY(26) O-RING 2.4-35.2(27) BOLT(28) WASHER(29) FUEL PUMP ASSY(29) FUEL PUMP ASSY(30) CHECK VALVE(31) CHECK VALVE(32) PUMP BODY GASKET(33) PUMP DIAPHRAGM(34) SCREW(35) SCREW(36) O-RING 2.6-18.7(37) SCREW(38) HOSE(39) HOSE(40) CLIP o10(40) CLIP o10(40) CLIP o10(40) CLIP o10(41) PROTECTOR o12-120(41) PROTECTOR o12-120(42) FUEL HOSE W/PROTECTOR L=260(43) FUEL HOSE W/PROTECTOR L=150(44) CLIP o9.4(44) CLIP o9.4(44) CLIP o9.4(44) CLIP o9.4(45) FUEL FILTER ASSY(46) HOSE(47) CLIP o10(47) CLIP o10(48) FUEL HOSE W/PROTECTOR L=350(49) CLIP o9.4(50) CLIP o10



Parts List
2013 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: INTAKE MANIFOLD & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD ASSY 3AA020101M 3AA020101M $95.85 1
(2) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 2
(3) INTAKE MANIFOLD GASKET 3V1021040M 3V1-02104-0 $4.20 1
(4) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(5) BOLT 9161F40653M 9161F4-0653 $2.82 6
(6) WASHER 9401E30600M 9401E3-0600 $0.00 6 Sold Out View More Details
(7) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 STARTER CASE $1.53 1
(8) HOSE 98AB70275 98AB-70-275 98AB-701000 $13.44 1
(9) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 FOR EP/EPT $6.21 1
(10) CHOKE SOLENOID 3V1760500M 3V1-76050-0 FOR EP/EPT $63.34 1
(11) PLUNGER 361760730M 361-76073-0 FOR EP/EPT $8.80 1
(12) SCREW 9215036408M 921503-6408 CHOKE SOLENOID / FOR EP/EPT $0.90 3
(13) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP/EPT $0.83 1
(14) CHOKE SOLENOID HOOK 346760570M 346-76057-0 FOR EP/EPT $3.00 1
(15) CHOKE SOLENOID BRACKET 3V1760781M 3V1-76078-1 FOR EP/EPT $36.78 1 Sold Out View More Details
(16) LINK ROD 3V1760760M 3V1-76076-0 FOR EP/EPT $2.58 1
(17) ROD SNAP 3V1671960M 3V1-67196-0 FOR EP/EPT $2.08 2
(18) SCREW 9215E30510M 9215E3-0510 FOR EP/EPT $0.81 1
(19) ASSIST CORD (BLUE) 3V1725470M 3V1-72547-0 FOR EP $3.62 1
(20) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 FOR EP/EPT $0.00 1 Sold Out View More Details
(21) CARBURETOR GASKET 3V1020110M 3V1-02011-0 $2.08 2
(22) INSULATOR 3V1039520M 3V1-03952-0 8/9.8PS $4.31 1
(23) CHOKE LINK ROD 3Y3671920M 3Y3-67192-0 FOR MF & EF/EFT $5.58 1
(24) ROD SNAP ø 3B 346671961M 346-67196-1 FOR MF & EF/EFT $2.56 1
(25) INTAKE SILENCER 3V1024090M 3V1-02409-0 $25.88 1
(26) O-RING 2.4-35.2 3V1020120M 3V1-02012-0 $1.18 1
(27) BOLT 9161E30695M 9161E3-0695 CARBURETOR $2.07 2
(28) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(29) FUEL PUMP ASSY 3H6040007M 3H6-04000-1 $66.10 1
(30) CHECK VALVE (P) 3H6040440M 3H6-04044-0 WHITE $2.58 1
(31) CHECK VALVE (R) 3H6040141M 3H6-04014-0 BLACK R $5.57 1
(32) PUMP BODY GASKET 3H6040280M 3H6-04028-0 $7.02 1
(33) PUMP DIAPHRAGM 3H6040050M 3H6-04005-0 $30.87 1
(34) SCREW 9216030308M 921603-0308 $0.97 2
(35) SCREW 9225036418M 922503-6418 $0.76 4
(36) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(37) SCREW 9215E35625M 9215E3-5625 $1.44 2
(38) RUBBER HOSE 98AB50260M 98AB-5-0260 FUEL PUMP-CARBURETOR / STD 98AB-501000 $11.41 1
(39) RUBBER HOSE 98AB50150M 98AB-5-0150 FUEL FILTER-FUEL PUMP / STD 98AB-501000 $11.41 1
(40) CLIP ø10 338022150M 338-02215-0 STD $1.41 4
(41) PROTECTOR 3V2061570M 3V2-06157-0 STD FUEL FILTER-FUEL PUMP / FUEL PUMP-CARBURETOR $4.33 2
(42) FUEL HOSE W/PROTECTOR L=260 3BJ021600M 3BJ-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $22.64 1
(43) FUEL HOSE W/PROTECTOR L=150 3V2021600M 3V2-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $18.61 1
(44) CLIP ø 9.5 3AB351430M 121-35143-0 FOR USA MODEL $1.30 4
(45) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(46) HOSE 98AB50330M 98AB-5-0330 CONNECTOR-FUEL FILTER / STD 98AB-501000 $11.41 1
(47) CLIP ø10 338022150M 338-02215-0 STD $1.41 2
(48) FUEL HOSE W/PROTECTOR L=350 3AA021600M 3AA-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $26.40 1
(49) CLIP ø 9.5 3AB351430M 121-35143-0 FUEL FILTER SIDE / FOR USA MODEL $1.30 1
(50) CLIP ø10 338022150M 338-02215-0 CONNECTOR SIDE / FOR USA MODEL $1.41 1
