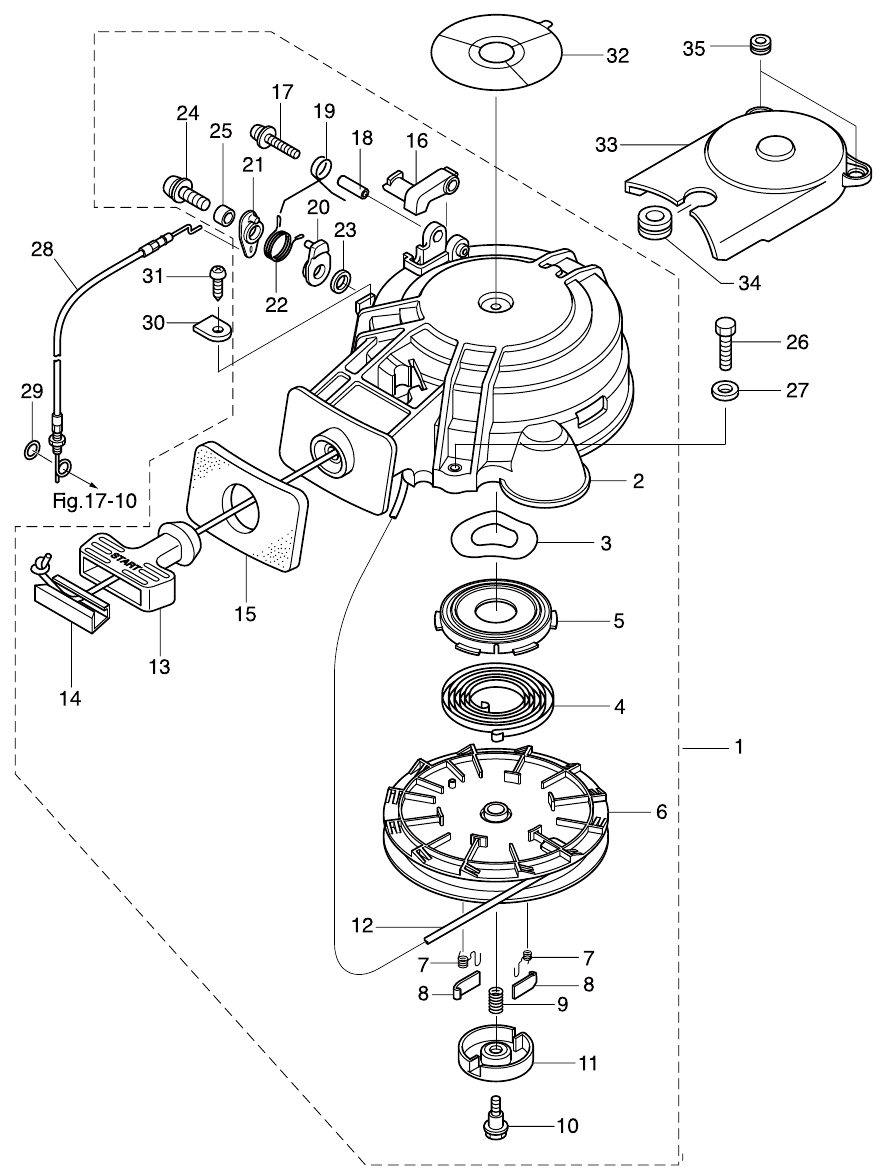

7. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER ASSY(2) STARTER CASE ASSY(3) WAVE WASHER(4) STARTER SPRING(5) STARTER SPRING CASE(6) REEL o140(7) RETURN SPRING(7) RETURN SPRING(8) RATCHET(8) RATCHET(9) FRICTION SPRING(10) BOLT(11) FRICTION PLATE(12) STARTER ROPE o4.5-1600(13) STARTER HANDLE(14) ROPE ANCHOR(15) STARTER SEAL(16) STARTER LOCK(17) SCREW(18) COLLAR 4-6-21(19) STARTER LOCK SPRING(20) STARTER LOCK CAM(21) STARTER LOCK LEVER(22) STARTER LOCK CAM SPRING(23) WASHER(24) SCREW(25) COLLAR 6.2-9-12.3(26) PRE-COATED BOLT 6-25(27) WASHER 6-16-1.5(27) WASHER 6-16-1.5(28) STARTER LOCK WIRE(29) O-RING 1.5-2.5(30) STOPPER(31) TAPPING SCREW 5-12(32) CAUTION DECAL (B)(33) BELT COVER(34) RUBBER MOUNT 2.5-20(35) GROMMET 13-2



Parts List
2013 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A3 :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER ASSY 3Y0050901M 3AA-05090-0 $132.54 1
(2) STARTER CASE 3AA050981M 3AA-05098-0 $55.89 1
(3) WAVE WASHER 3V1052590M 3V1-05259-0 $3.20 1
(4) STARTER SPRING 3AA050040M 3AA-05004-0 $22.50 1
(5) STARTER SPRING CASE 3R1051250M 3R1-05125-0 $5.99 1
(6) REEL 3V1051041M 3V1-05104-1 $21.91 1
(7) RETURN SPRING 3R1050120M 3H6-05012-0 $2.22 2
(8) RATCHET 3R1050032M 3R1-05003-2 $3.14 2
(9) FRICTION SPRING 3R1050070M 369-05007-0 $1.59 1
(10) STARTER SHAFT BOLT 3R1051381M 3R1-05138-1 $3.04 1
(11) FRICTION PLATE 3R1050062M 3R1-05006-2 $6.97 1
(12) STARTER ROPE 3AA050130M 3R1-05013-0 $8.29 1
(13) STARTER HANDLE 3AA050190M 3AA-05019-0 $5.44 1
(14) ROPE ANCHOR 3R1051311M 3R1-05131-0 $4.78 1
(15) STARTER SEAL 3AA675030M 3AA-67503-0 $8.80 1
(16) STARTER LOCK (BLACK) 3AA052520M 3AA-05252-0 $2.21 1
(17) SCREW 9215035430M 921503-5430 $0.93 1
(18) COLLAR 4-6-21 3R1052550M 3R1-05255-0 $1.85 1
(19) SPRING STARTER LOCK 3R1052160M 338-05216-0 $1.27 1
(20) STARTER LOCK CAM 3Y0052530M 3Y0-05253-0 $1.82 1
(21) STARTER LOCK LEVER 3Y0052260M 3Y0-05226-0 $1.82 1
(22) STARTER LOCK CAM SPRING 3Y0052580M 3Y0-05258-0 $1.82 1
(23) WASHER 9401030600M 940103-0600 $0.70 1
(24) SCREW 9215035625M 9215E3-5625 $1.44 1
(25) COLLAR 6.2-9-12.3 3R0063031M 3R0-06303-1 $2.40 1
(26) PRE-COATED BOLT 6-25 3V2601080M 3V2-60108-0 $1.68 3
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR MF $1.59 3 Sold Out View More Details
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EF/EFT & EP/EPT $1.59 2 Sold Out View More Details
(28) STARTER LOCK WIRE 3Y0052070M 3V1-05207-0 $23.56 1
(29) O-RING 1.5-2.5 3C7032711M 3C7-03271-0 $1.04 1
(30) STOPPER 332660330M 332-66033-0 $0.55 1
(31) TAPPING SCREW 3V1059130M 3V1-05913-0 $1.93 1
(32) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(33) BELT COVER 3V1063080M 3V1-06308-0 $7.28 1
(34) RUBBER MOUNT 2.5-20 3V1063020M 3V1-06302-0 $2.91 1
(35) GROMMET 13.2 172360080M 172-36008-0 $2.40 2
