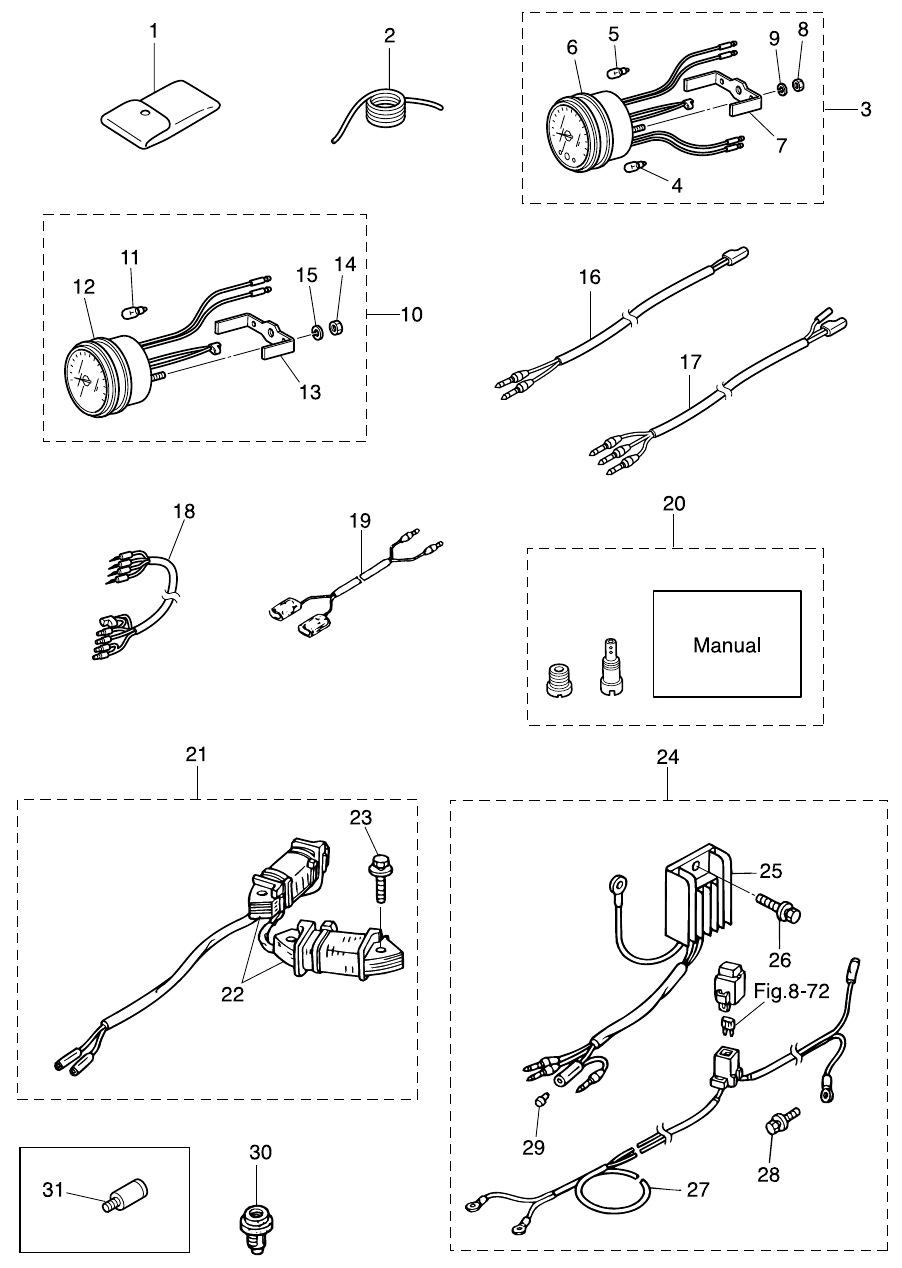

24. OPTIONAL PARTS (ACCESSORIES)

Click Here for Microfiche Usage Tip
(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) TACHOMETER (BLACK)(3) TACHOMETER (WHITE)(3) TACHOMETER W/OIL LAMP(4) OIL BULB 12V-1.7W(5) METER BULB 12V-1.8W(6) METER DAMPER(7) FITTING PLATE(8) NUT(9) SPRING WASHER(10) TACHOMETER (BLACK)(10) TACHOMETER (WHITE)(10) TACHOMETER ASSY(11) METER BULB 12V-1.8W(12) METER DAMPER(13) FITTING PLATE(14) NUT(15) SPRING WASHER(16) TACHOMETER LEAD WIRE L=6000(17) TACHOMETER LEAD WIRE L=6000(18) METER LEAD WIRE L=2000(19) METER LEAD WIRE L=1500(20) ALTITUDE ADJUSTMENT KIT(21) ALTERNATOR KIT(22) ALTERNATOR ASSY(23) BOLT(24) RECTIFIER KIT(25) RECTIFIER COMPLETE(26) BOLT(27) EXTENSION CORD L=2150(28) BOLT(29) CABLE TERMINAL PLUG(30) THERMOSTAT(31) FLUSHING PLUG



Parts List
2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: OPTIONAL PARTS (ACCESSORIES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(3) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(3) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 $0.00 1 Sold Out View More Details
(4) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3N8-72640-1 $3.27 1
(5) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3N8-72640-1 $0.00 1 Sold Out View More Details
(6) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3N8-72640-1 $3.27 1
(7) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3N8-72640-1 $25.33 1
(8) NUT 9301030500M 930103-0500 FOR 3N8-72640-1 $0.86 2
(9) SPRING WASHER 9413030500M 941303-0500 FOR 3N8-72640-1 $0.90 2
(10) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(10) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(10) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 $0.00 1 Sold Out View More Details
(11) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3B7-72530-2 $0.00 1 Sold Out View More Details
(12) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3B7-72530-2 $3.27 1
(13) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3B7-72530-2 $25.33 1
(14) NUT 9301030500M 930103-0500 FOR 3B7-72530-2 $0.86 2
(15) SPRING WASHER 9413030500M 941303-0500 FOR 3B7-72530-2 $0.90 2
(16) TACHOMETER LEAD CABLE 361725390M 361-72539-0 $50.65 1
(17) TACHOMETER LEAD CABLE 3V1725390M 3V1-72539-0 $0.00 1 Sold Out View More Details
(18) METER LEAD WIRE L=2000 3A3725371M 3A3-72537-1 $30.73 1
(19) METER LEAD CABLE 353725370M 353-72537-0 $23.01 1
(20) ALTITUDE ADJUSTMENT KIT 3V1102300M 3V1-10230-0 8PS $52.36 1
(21) ALTERNATOR KIT 3V2061280M 3V2-06128-0 $49.82 1
(22) ALTERNATER 3AA060230M 3AA-06023-0 $61.59 1
(23) BOLT 9101035630M 910113-5630 $1.15 4
(24) RECTIFIER KIT 3V2761600M 3V2-76160-0 $122.13 1
(25) RECTIFIER 3AA760650M 3AA-76065-0 $102.12 1
(26) BOLT 9101035616M 910103-5616 $1.15 1
(27) EXTENTION CORD 3AA761610M 3AA-76161-0 $0.00 1 Sold Out View More Details
(28) BOLT 9101035610M 910103-5610 $1.02 1
(29) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 RECTIFIER RED CORD $1.50 1
(30) THERMOSTAT 3AA010300M 3AA-01030-0 OPT / MARK 70 $103.10 1
(31) FLUSHING ATTACHMENT 336600070M 336-60007-0 OPT $8.05 1
