21. COMPONENT PARTS OF REMOTE CONTROL

Click Here for Microfiche Usage Tip

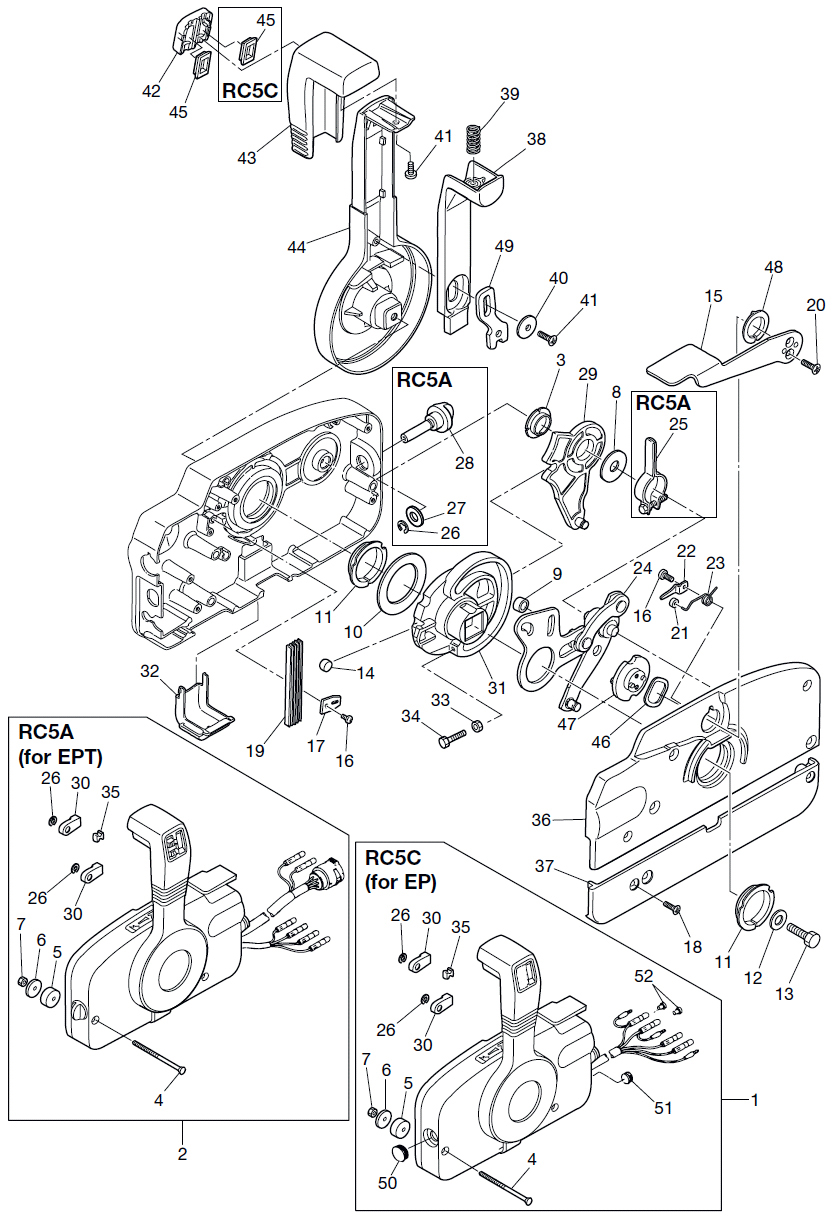

(1) REMOTE CONTROL HEAD ASSY (RC5C)(2) REMOTE CONTROL HEAD ASSY (RC5A)(3) BUSHING(4) SCREW(4) SCREW(5) SPACER(5) SPACER(6) WASHER(6) WASHER(7) NUT(7) NUT(8) WASHER(9) ROLLER(10) THRUST PLATE(11) BUSHING(11) BUSHING(12) WASHER(13) BOLT(14) DETENT ROLLER(15) FREE THROTTLE LEVER(16) SCREW(16) SCREW(17) DETENT RETAINER(18) SCREW(19) DETENT SPRING(20) SCREW(21) FREE THROTTLE ROLLER(22) ROLLER RETAINER(23) FREE THROTTLE SPRING(24) THROTTLE ARM(25) THROTTLE FRICTION ARM(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(26) E-RING D=6(27) WASHER(28) ADJUST SCREW(29) SHIFT GEAR ASSY(30) CABLE TERMINAL(30) CABLE TERMINAL(30) CABLE TERMINAL(30) CABLE TERMINAL(31) DRIVE GEAR(32) WIRE COVER(33) NUT(34) BOLT(35) GROMMET(35) GROMMET(36) REAR HOUSING(37) REAR PANEL(38) NEUTRAL LOCK ARM(39) NEUTRAL LOCK SPRING(40) WASHER(41) SCREW(41) SCREW(42) TILT SWITCH COVER(43) GRIP(44) CONTROL LEVER(45) TILT SWITCH PLUG(45) TILT SWITCH PLUG(45) TILT SWITCH PLUG(45) TILT SWITCH PLUG(46) WAVE WASHER(47) FREE THROTTLE DRUM(48) BUSHING(49) PLATE(50) GROMMET(51) GROMMET(52) CABLE TERMINAL PLUG



Parts List
2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: COMPONENT PARTS OF REMOTE CONTROL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) REMOTE CONTROL BOX (RC5C) 3B7Q843503 3B7-84350-2 RC5C / FOR EP $301.73 1
(2) REMOTE CONTROL HEAD ASSY (RC5A) 3ACQ843300 3ACQ84330-0 RC5A / FOR EPT $446.56 1
(3) BUSHING 3A3844320M 3A3-84432-0 $1.50 1
(4) SCREW 3A3843750M 3A3-84375-0 $4.19 3
(5) SPACER 3A3843740M 3A3-84374-0 $3.54 3
(6) WASHER 353843710M 353-84371-0 $2.44 3
(7) NUT 9301030600M 930113-0600 $0.84 3
(8) WASHER 3A3843830M 3A3-84383-0 $1.41 1
(9) ROLLER 3A3844210M 3A3-84421-0 $6.47 1 Sold Out View More Details
(10) THRUST PLATE 3A3844220M 3A3-84422-0 $1.85 1
(11) BUSHING 3A3844310M 3A3-84431-0 $0.93 2
(12) WASHER 9401030800M 940113-0800 $0.84 1
(13) BOLT 3A3844420M 3A3-84442-0 $3.85 1
(14) DETENT ROLLER 353843880M 353-84388-0 $4.63 1
(15) FREE THROTTLE LEVER 3B7Q843120 3B7Q84312-0 $22.52 1
(16) SCREW 9215030406M 921503-0406 $0.40 2
(17) DETENT RETAINER 3A3844230M 3A3-84423-0 $1.85 1
(18) SCREW 9216030518M 921603-0518 $0.81 5
(19) DETENT SPRING 3A3843070M 3A3-84307-0 $0.00 5 Sold Out View More Details
(20) SCREW 9216030512M 921603-0512 $0.61 2
(21) FREE THROTTLE ROLLER 3A3844240M 3A3-84424-0 $2.31 1
(22) ROLLER RETAINER 3A3844260M 3A3-84426-0 $3.00 1
(23) FREE THROTTLE SPRING 3A3844250M 3A3-84425-0 $2.31 1
(24) THROTTLE ARM 3A3843651M 3A3-84365-1 $51.46 1
(25) THROTTLE FRICTION ARM 3A3844280M 3A3-84428-0 RC5A / FOR EPT $10.59 1
(26) E-RING D=6 9453030600M 945303-0600 RC5C / FOR EP $0.83 2
(26) E-RING D=6 9453030600M 945303-0600 RC5A / FOR EPT $0.83 3
(27) WASHER 353843940M 353-84394-0 RC5A / FOR EPT $1.55 1
(28) ADJUST SCREW 3A3844270M 3A3-84427-0 RC5A / FOR EPT $16.98 1
(29) SHIFT GEAR ASSY 3A3843810M 3A3-84381-0 $23.01 1
(30) CABLE TERMINAL 3A3833142M 3A3-83314-2 $7.59 2 Sold Out View More Details
(31) DRIVE GEAR 3A3843642M 3A3-84364-2 $41.45 1
(32) WIRE COVER 3A3844290M 3A3-84429-0 $3.39 1
(33) NUT 9301030500M 930103-0500 $0.86 1
(34) BOLT 9101030525M 910103-0525 $0.00 1 Sold Out View More Details
(35) GROMMET 3A3843760M 3A3-84376-0 $2.56 1
(36) REAR HOUSING 3B7Q844410 3B7Q84441-0 $47.90 1
(37) REAR PANEL 3B7Q843660 3B7Q84366-0 $40.23 1
(38) NEUTRAL LOCK ARM 3A3844010M 3A3-84401-0 $14.31 1
(39) NEUTRAL LOCK SPRING 3A3844030M 3A3-84403-0 $1.85 1
(40) WASHER 3A3844070M 3A3-84407-0 $1.41 1
(41) SCREW 9215030510M 921503-0510 $0.81 2
(42) TILT SWITCH COVER 3A3844510M 3A3-84451-0 $10.59 1
(43) GRIP 3A3844040M 3A3-84404-0 $18.64 1
(44) CONTROL LEVER 3B7Q843430 3B7Q84343-0 $63.49 1
(45) TILT SWITCH PLUG 3A3844520M 3A3-84452-0 RC5C / FOR EP $5.29 2
(45) TILT SWITCH PLUG 3A3844520M 3A3-84452-0 RC5A / FOR EPT $5.29 1
(46) WAVE WASHER 3A3843680M 3A3-84368-0 $1.41 1
(47) FREE THROTTLE DRUM 3A3843910M 3A3-84391-0 $21.14 1
(48) BUSHING 3A3844350M 3A3-84435-0 $1.85 1
(49) PLATE 3A3844060M 3A3-84406-0 $21.58 1
(50) GROMMET 361844140M 361-84414-0 RC5C / FOR EP $2.19 1 Sold Out View More Details
(51) GROMMET 361844150M 361-84415-0 RC5C / FOR EP $0.00 1 Sold Out View More Details
(52) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 RC5C / FOR EP $1.50 2
