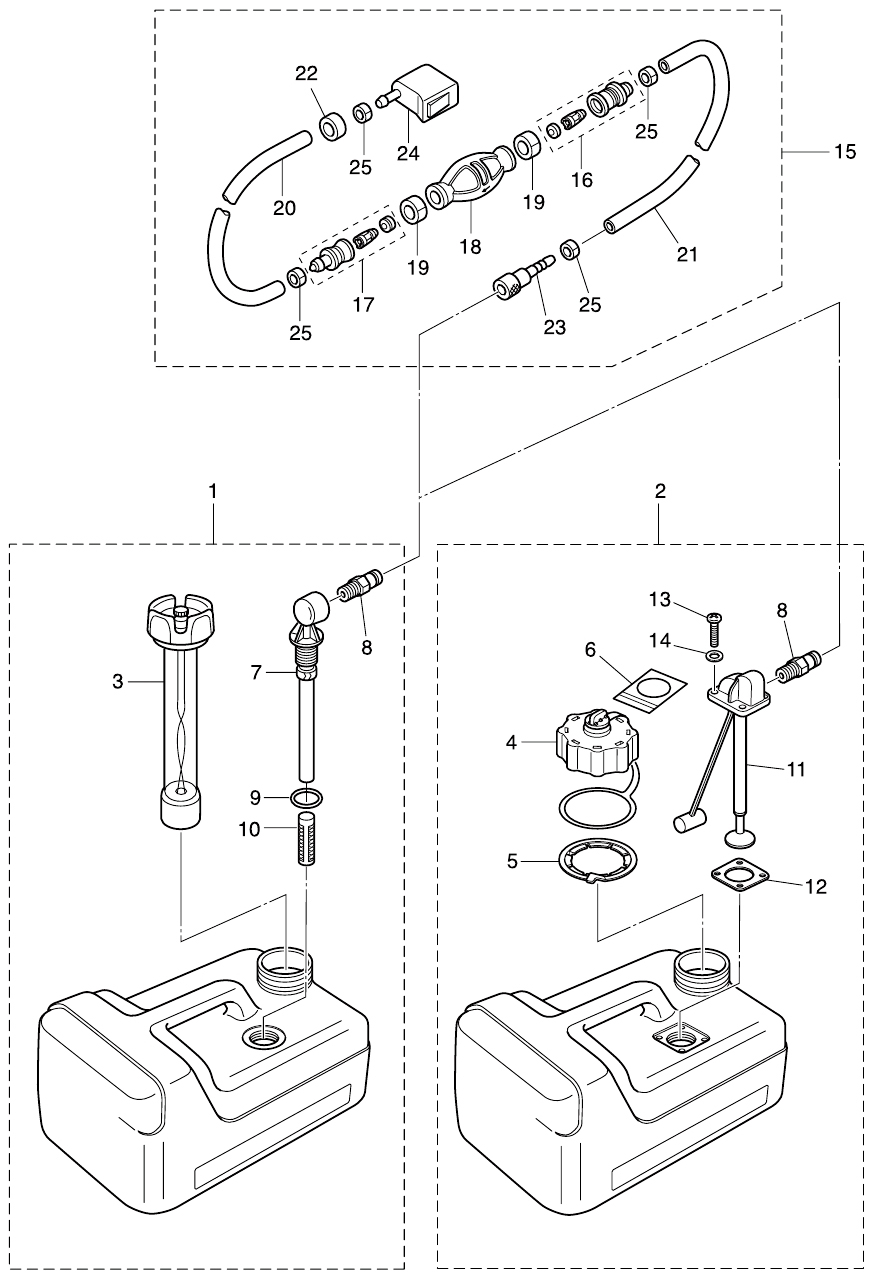

20. FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK ASSY 12L (TOHATSU)(1) FUEL TANK ASSY 12L (NISSAN)(2) FUEL TANK ASSY 12L (TOHATSU)(2) FUEL TANK ASSY 12L (NISSAN)(3) FUEL GAUGE VENT CAP ASSY (12L)(4) FUEL TANK CAP ASSY(5) RETAINING RING(6) INSTRUCTION TAG(7) PICK-UP ELBOW ASSY (12L)(8) QUICK-CONNECTOR (MALE)(8) QUICK-CONNECTOR (MALE)(9) O-RING(10) FILTER(11) FUEL PICK-UP ASSY W/GAUGE(12) GASKET(13) SCREW(14) WASHER(15) PRIMER BULB ASSY(15) PRIMER BULB ASSY(16) JOINT ASSY (INLET)(17) JOINT ASSY (OUTLET)(18) PRIMER BULB(18) PRIMER BULB(19) CLAMP(19) CLAMP(20) HOSE(20) LOW PERMEATION HOSE L=700(21) HOSE(21) LOW PERMEATION HOSE L=1600(22) FUEL CONNECTOR MARK(23) FUEL CONNECTOR(24) FUEL CONNECTOR(25) CLAMP(25) CLAMP(25) CLAMP(25) CLAMP



Parts List
2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY 12L (TOHATSU) 3B2701671M 3B2-70167-1 STD / TOHATSU $87.32 1
(1) FUEL TANK ASSY 12L (NISSAN) 3B3701671M 3B3-70167-1 STD / NISSAN $87.32 1
(2) FUEL TANK ASSY 12L (TOHATSU) 3V1701672M 3V1701672M LOW PERMEATION PARTS / FOR USA MODEL / TOHATSU $87.32 1
(2) FUEL TANK ASSY 12L (NISSAN) 3Y3701671M 99998FT12M LOW PERMEATION PARTS / FOR USA MODEL / NISSAN $87.32 1
(3) FUEL GAUGE VENT CAP ASSY (12L) 3B2700501M 3B2-70050-0 STD $0.00 1 Sold Out View More Details
(4) FUEL TANK CAP ASSY 3AC700521M 3AC-70052-1 LOW PERMEATION PARTS / FOR USA MODEL $33.21 1
(5) RETAINING RING 3AC700550M 3AC-70055-0 FOR USA MODEL $6.21 1
(6) INSTRUCTION TAG 3AC703521M 3AC-70352-1 FOR USA MODEL $0.00 1 Sold Out View More Details
(7) ELBOW TUBING AND CLAMP ASSY 3B2701550M 3B2-70155-0 STD $11.97 1
(8) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(9) O-RING 3C7701990M 3C7-70199-0 STD $1.24 1
(10) FILTER 3C7701130M 3C7-70113-0 STD $3.20 1
(11) FUEL PICK-UP ASSY W/GAUGE 3V1701570M 3V1-70157-0 FOR USA MODEL $29.88 1
(12) GASKET 3AC701500M 3AC-70150-0 FOR USA MODEL $4.55 1
(13) SCREW 3AC701400M 3AC-70140-0 FOR USA MODEL $1.24 4
(14) WASHER 3AC701450M 3AC-70145-0 FOR USA MODEL $0.93 4
(15) PRIMER BULB ASSY 3H6702002M 3H6-70200-0 STD $122.59 1
(15) PRIMER BULB ASSY 3AD702002M 3AC-70200-2 LOW PERMEATION PARTS / FOR USA MODEL $95.51 1 Sold Out View More Details
(16) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(17) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(18) PRIMER BULB 3C7702111M 3C7-70211-0 STD $22.31 1
(18) PRIMER BULB 3GF702111M 3GF-70211-0 LOW PERMEATION PARTS / FOR USA MODEL $53.09 1
(19) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(20) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $13.44 1
(20) LOW PERMEATION HOSE L=700 3GF702411M 3GF-70241-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(21) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 X2 $13.44 1
(21) LOW PERMEATION HOSE L=1600 3GF702401M 3GF-70240-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(22) FUEL CONNECTOR MARK 3GR702800M 3GR-70280-0 YELLOW FOR USA MODEL / SEE OWNERS MANUAL $3.04 1
(23) FUEL CONNECTOR 3GF702810M 3GF-70281-0 $24.91 1
(24) FUEL CONNECTOR 3GR702500M 394-70250-0 $11.78 1
(25) CLAMP 332702010M 332-70201-0 $2.07 4
