10. GEAR CASE

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) ROLLER BEARING 15-21-16(3) BALL BEARING 6204(4) PLUG 8-8(4) PLUG 8-8(4) PLUG 8-8(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(6) TRIM TAB(7) BOLT(8) WATER STRAINER W=17(8) WATER STRAINER W=17(9) SCREW(10) NYLON NUT 4-P0.7(11) PROPELLER SHAFT HOUSING ASSY(12) O-RING 3.2-47(13) OIL SEAL 15-28-10(14) BALL BEARING 6004(15) BOLT(16) BEVEL GEAR ASSY (A)(17) BEVEL GEAR B(18) BEVEL GEAR C(19) WASHER 15.2-19-1.9(20) SHIM 21-28-0.1(20) SHIM 21-28-0.15(21) PROPELLER SHAFT(22) CLUTCH(23) PIN 3.5-28(24) SPRING(25) PUSH ROD(26) SPRING RETAINER(27) WATER PUMP IMPELLER(28) KEY o3-11(29) PUMP CASE (UPPER)(30) PUMP CASE LINER(31) WATER PIPE SEAL (LOWER)(32) PUMP CASE GASKET(33) WATER PUMP GUIDE PLATE(34) GUIDE PLATE GASKET(35) BOLT(36) WASHER(37) PUMP CASE (LOWER)(38) OIL SEAL 12-24-8(39) PUMP CASE GASKET (LOWER)(40) SHIM 28-36.8-0.1(40) SHIM 28-36.8-0.15(40) SHIM 28-36.8-0.3(41) DRIVE SHAFT ASSY (S)(41) DRIVE SHAFT ASSY (L)(41) DRIVE SHAFT ASSY (UL)(42) BALL BEARING 6301(43) CLUTCH CAM(44) SPRING PIN 3-10(45) CAM ROD (S)(45) CAM ROD (L)(45) CAM ROD (UL)(46) CAM ROD BUSHING(47) O-RING 2.5-4.9(48) O-RING 2.4-15.4(49) STOPPER(50) BOLT(51) BOLT 6-35(52) WATER SEAL RUBBER(53) WATER SEAL PLATE(54) WATER PIPE (S)(54) WATER PIPE (L)(54) WATER PIPE (UL)(55) WATER PIPE SEAL (UPPER)(56) LOCK PLATE(57) WATER PIPE AUXILIARY MOUNT 13-2.5(58) SCREW(59) PROPELLER ASSY (6.5")(59) PROPELLER ASSY (7")(59) PROPELLER ASSY (7.5")(59) PROPELLER ASSY (8.5")(59) PROPELLER ASSY (9.5")(59) PROPELLER ASSY (5")(59) PROPELLER ASSY (7")(60) PROPELLER HARDWARE KIT(61) THRUST HOLDER ASSY(62) WASHER 10.5-28-2(63) PROPELLER NUT(64) SPLIT PIN 3-18



Parts List

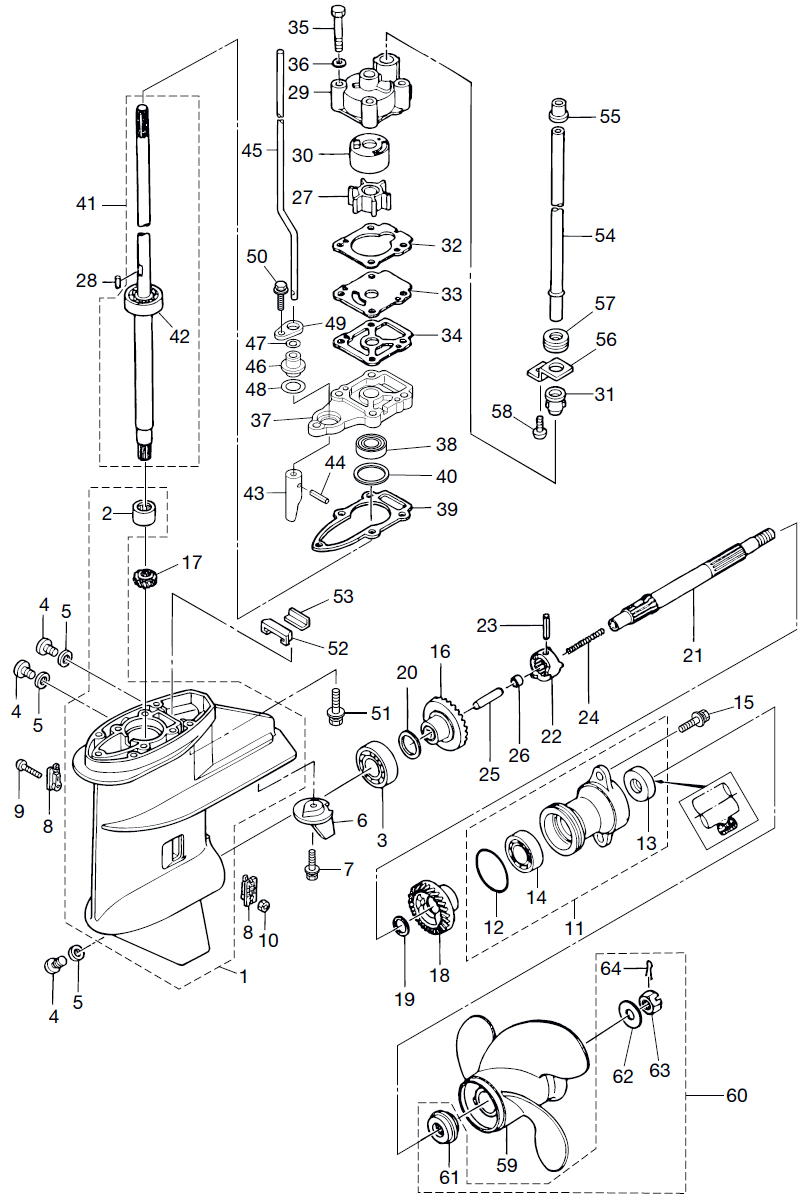

2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: GEAR CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3AAQ600000 3AAQ60000-0 $303.37 1 Sold Out View More Details
(2) NEEDLE BEARING 15-21-16 3V1602110M 3V1-60211-0 $41.89 1
(3) BALL BEARING 6204 960106204M 9601-0-6204 $18.84 1
(4) WATER PLUG 332600052M 332-60005-2 $5.43 3
(5) GASKET 8.1-15-1 332600060M 332-60006-0 $0.92 3
(6) TRIM TAB 3V1602170M 3V1-60217-0 $12.22 1
(7) BOLT 9101035620M 910103-5620 $1.39 1 Sold Out View More Details
(8) WATER STRAINER 3AA602060M 3AA-60206-0 MARK A $3.54 2
(9) SCREW 9215030430M 921513-0430 $1.01 1
(10) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.80 1
(11) PROPELLER SHAFT HOUSING ASSY 3B2Q601001 3B2Q60100-0 $54.58 1
(12) O-RING 3.2-47 345650150M 345-65015-0 $1.61 1
(13) OIL SEAL 15-28-10 369601110M 369-60111-0 $4.69 1
(14) BALL BEARING 6004 960106004M 9601-0-6004 $11.74 1
(15) BOLT 9101E35620M 910113-5620 $1.39 2
(16) BEVEL GEAR A 3B2640100M 3B2-64010-0 $90.63 1
(17) BEVEL GEAR B 3B2640200M 3B2-64020-0 $40.08 1
(18) BEVEL GEAR C 3B2640300M 3B2-64030-0 $89.54 1
(19) WASHER 15.2-19-1.9 369640320M 369-64032-0 $3.50 1 Sold Out View More Details
(20) SHIM 21-28-.01 369640140M 369-64014-0 $2.12 0
(20) SHIM 21-28-0.15 369640150M 369-64015-0 $2.12 0
(21) PROPELLER SHAFT 3V1642111M 3V1-64211-0 $129.64 1
(22) CLUTCH 3B2642150M 3B2-64215-0 $37.72 1
(23) SPRING PIN 3.5-28 301642170M 301-64217-0 $1.50 1
(24) CLUTCH SPRING 3V1642210M 3V1-64221-0 $1.91 1
(25) CLUTCH PUSH ROD 369642230M 369-64223-0 $5.16 1
(26) CLUTCH SPRING RETAINER 3B2642220M 3B2-64222-0 $2.48 1
(27) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $10.38 1
(28) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 PUMP IMPELLER $1.56 1
(29) PUMP CASE (UPPER) 3B2650160M 3B2-65016-0 $28.25 1
(30) PUMP CASE LINER 3B2650110M 3B2-65011-0 $12.98 1
(31) WATER PIPE SEAL (LOWER) 331650140M 331-65014-0 $1.71 1
(32) PUMP CASE GASKET 3B2650182M 3B2-65018-0 $5.00 1
(33) WATER PUMP GUIDE PLATE 3B2650250M 3B2-65025-0 $3.08 1
(34) GUIDE PLATE GASKET 3B2650292M 3B2-65029-0 $2.21 1
(35) BOLT 9161E30650M 916113-0650 $2.59 4 Sold Out View More Details
(36) WASHER 9401E30600M 9401E3-0600 $0.00 4 Sold Out View More Details
(37) PUMP CASE (LOWER) 3V1650170M 3V1-65017-0 $23.63 1
(38) OIL SEAL 12-24-8 309601110M 309-60111-0 $7.39 1
(39) PUMP CASE GASKET (LOWER) 3B2650201M 3B2-65020-1 $5.66 1
(40) SHIM 28-36.8-0.1 3B2640810M 3B2-64081-0 $2.12 0 Sold Out View More Details
(40) SHIM 28-36.8-0.15 3B2640820M 3B2-64082-0 $2.12 0
(40) SHIM 28-36.8-0.3 3B2640830M 3B2-64083-0 $4.88 0 Sold Out View More Details
(41) DRIVE SHAFT S 3V1643061M 3V1-64306-1 FOR TRANSOM S $172.67 1
(41) DRIVE SHAFT L 3V1643071M 3V1-64307-1 FOR TRANSOM L $116.38 1
(41) DRIVE SHAFT UL 3V1643091M 3V1-64309-1 FOR TRANSOM UL $171.63 1
(42) BALL BEARING 6301 960106301M 9601-0-6301 $14.17 1
(43) CLUTCH CAM 369660110M 369-66011-0 $19.01 1
(44) SPRING PIN 3-10 9514070310M 951407-0310 $0.87 1
(45) CAM ROD S 3V1660120M 3V1-66012-0 FOR TRANSOM S $14.58 1
(45) CAM ROD L 3V1660130M 3V1-66013-0 FOR TRANSOM L $16.43 1
(45) CAM ROD UL 3V1660140M 3V1-66014-0 FOR TRANSOM UL $21.28 1
(46) CAM ROD BUSHING 369660310M 369-66031-0 $3.62 1
(47) O-RING 2.5-4.9 369660211M 369-66021-1 $1.36 1
(48) O-RING 2.4-15.4 332660320M 332-66032-0 $1.50 1
(49) STOPPER 369660330M 369-66033-0 $2.21 1
(50) BOLT 9101E35625M 910113-5625 $1.57 1
(51) BOLT 6-35 3V2600010M 3V1-60001-0 $3.68 4
(52) WATER SEAL RUBBER 3V1600410M 3V1-60041-0 $3.68 1
(53) WATER SEAL PLATE 3V1600420M 3V1-60042-0 $3.11 1
(54) WATER PIPE S 3V1651000M 3V1-65100-0 FOR TRANSOM S $11.50 1
(54) WATER PIPE L 3V1651100M 3V1-65110-0 FOR TRANSOM L $15.33 1
(54) WATER PIPE UL 3V1651200M 3V1-65120-0 FOR TRANSOM UL $25.63 1
(55) WATER PIPE SEAL (UPPER) 3V1652060M 3V1-65206-0 $1.68 1
(56) LOCK PLATE 3V1652030M 3V1-65203-0 $4.00 1
(57) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 $2.59 1
(58) SCREW 9215E30510M 9215E3-0510 $0.87 1 Sold Out View More Details
(59) PROPELLER ASSY (6.5) 3B2B645131 3B2B64513-1 6PS L / STD 3 X 216 X 165 $0.00 1 Sold Out View More Details
(59) PROPELLER ASSY (7) 3B2B645141 3B2B64514-1 (USA:8PS S/L 9.8PS L) / STD 3 X 226 X 178 $88.73 1
(59) PROPELLER ASSY (7.5) 3B2B645151 3B2W64515-0 8/9.8PS / STD 3 X 216 X 190 $88.73 1
(59) PROPELLER ASSY (8.5) 3B2B645171 3B2B64517-1 9.8PS S / STD 3 X 226 X 211 $88.73 1
(59) PROPELLER ASSY (9.5) 3B2B645191 3B2W64519-1 OPT 3 X 226 X 255 $0.00 1 Sold Out View More Details
(59) PROPELLER ASSY (5) 3V1B645100 3V1B64510-0 (USA:9.8PS UL) / STD 4 X 221 X 127 $106.21 1
(59) PROPELLER ASSY (7) 3V1B645140 3V1B64514-0 (USA:8/9.8PS L PT) / STD 4 X 216 X 178 $106.21 1
(60) PROPELLER HARDWARE KIT 3V1873261M 3V1873261M $28.76 1
(61) THRUST HOLDER ASSY 3B2642302M 3B2642302M $20.73 1
(62) WASHER 10.5-28-2 369641240M 369-64124-0 $4.49 1
(63) PROPELLER NUT 369641210M 369-64121-0 $9.41 1
(64) SPLIT PIN 3-18 9515030318M 951503-0318 $1.01 1
