4. PULLEY & TIMING BELT

Click Here for Microfiche Usage Tip

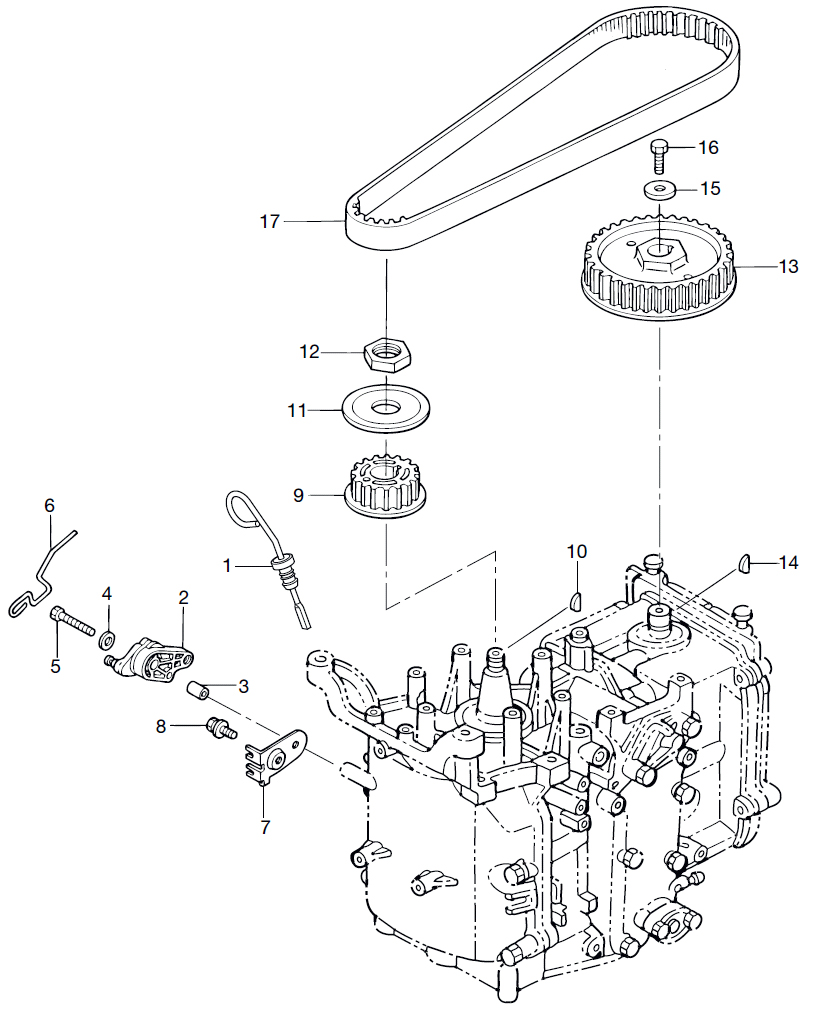

(1) OIL LEVEL GAUGE(2) THROTTLE DRUM ASSY(3) SPACER 6.2-9-15.7(4) WASHER 6-16-1.5(5) BOLT(6) THROTTLE ROD(7) THROTTLE WIRE BRACKET(8) BOLT(9) DRIVE PULLEY(10) KEY T=4(11) BELT GUIDE(12) NUT(13) DRIVEN PULLEY(14) KEY(15) WASHER 6.5-19-3.2(16) PRE-COATED BOLT 6-20(17) TIMING BELT



Parts List
2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: PULLEY & TIMING BELT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL LEVEL GAUGE 3V1074210M 3V1-07421-0 $13.89 1
(2) THROTTLE DRUM 3V1636220M 3V1-63622-0 $4.14 1
(3) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 1
(4) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(5) BOLT 9101E30630M 910114-5630 $1.21 1
(6) THROTTLE ROD 3V1636171M 3V1-63617-1 $6.30 1
(7) THROTTLE WIRE BRACKET 3V1635081M 3V1-63508-1 $5.93 1
(8) BOLT 9101E35612M 910103-5612 $1.07 1
(9) DRIVE PULLEY 3V1100600M 3V1-10060-0 TIMING PULLEY $39.16 1
(10) KEY 3T5101310M 3T5-10131-0 CRANKSHAFT $1.56 1
(11) BELT GUIDE 3V1100630M 3V1-10063-0 $3.73 1
(12) NUT 3V1100680M 3V1-10068-0 $4.31 1
(13) DRIVEN PULLEY 3H8100622M 3H8-10062-2 CAMSHAFT PULLEY $48.39 1
(14) KEY 309001310M 309-00131-0 CAMSHAFT $2.31 1
(15) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(16) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 $1.45 1 Sold Out View More Details
(17) TIMING BELT 3V1100450M 3V1-10045-0 $18.70 1
