2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

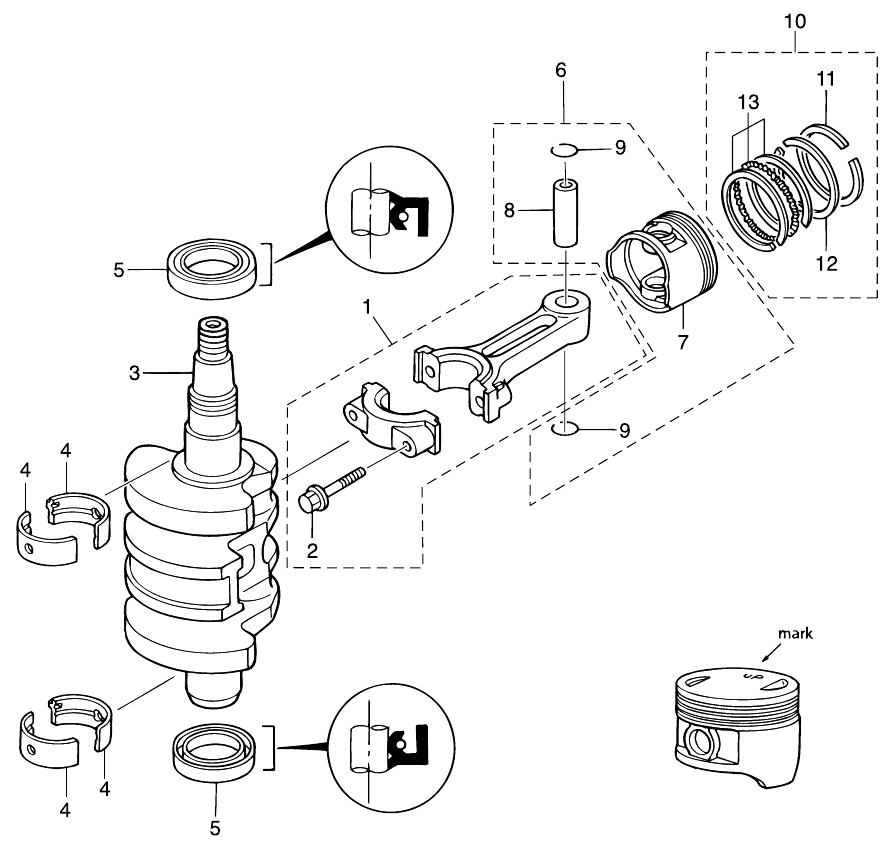

(1) CONNECTING ROD ASSY(2) CONNECTING ROD BOLT(3) CRANKSHAFT ASSY(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(4) PLAIN SHAFT BEARING(5) OIL SEAL 30-45-8(5) OIL SEAL 30-45-8(6) PISTON REPAIR KIT(6) PISTON REPAIR KIT (0.5 O/S)(7) PISTON(7) PISTON (0.5 O/S)(8) PISTON PIN(9) PISTON PIN CLIP(9) PISTON PIN CLIP(10) PISTON RING SET(10) PISTON RING SET (0.5 O/S)(11) PISTON RING(11) PISTON RING (0.5 O/S)(12) PISTON RING(12) PISTON RING (0.5 O/S)(13) PISTON RING-OIL(13) PISTON RING-OIL (0.5 O/S)



Parts List
2013 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CONNECTING ROD 3V1000400M 3V1-00040-0 $86.78 2
(2) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(3) CRANKSHAFT 3V1000301M 3V1-00030-1 $295.76 1
(4) BEARING (BROWN) 3V1074080M 3V1-07408-0 BROWN / SEE SERVICE MANUAL $4.31 0
(4) BEARING (BLACK) 3V1074070M 3V1-07407-0 BLACK / SEE SERVICE MANUAL $4.20 0
(5) OIL SEAL 30-45-8 3V1001210M 3V1-00121-0 $12.26 2
(6) PISTON REPAIR KIT 3FK871300 3FK-87130-0 STD $39.45 2
(6) PISTON REPAIR KIT (0.5 O/S) 3FK871310 3FK-87131-0 OPT $0.00 2 Sold Out View More Details
(7) PISTON 3V1000011M 3V1-00001-1 STD $27.35 1
(7) PISTON (0.5 O/S) 3V1000041M 3V1-00004-1 OPT $0.00 1 Sold Out View More Details
(8) PISTON PIN 332000211M 332-00021-1 $7.34 1
(9) PISTON PIN CLIP 350000241M 350-00024-1 $0.86 2
(10) PISTON RING SET 3FK871230M 3FK-87123-0 STD $16.17 2
(10) PISTON RING SET (0.5 O/S) 3FK871240 3FK-87124-0 OPT $0.00 2 Sold Out View More Details
(11) PISTON RING TOP 3V1000110M 3V1-00011-0 STD 1ST $7.05 1
(11) PISTON RING TOP (0.5MM O/S) 3V1000140M 3V1-00014-0 OPT 1ST $7.18 1
(12) PISTON RING 2ND 3V1000120M 3V1-00012-0 STD 2ND $6.30 1
(12) PISTON RING 2ND (0.5MM O/S) 3V1000150M 3V1-00015-0 OPT 2ND $6.03 1
(13) PISTON OIL RING 3V1000130M 3V1-00013-0 STD OIL $9.41 1
(13) PISTON OIL RING (0.5MM O/S) 3V1000160M 3V1-00016-0 OPT OIL $6.95 1
