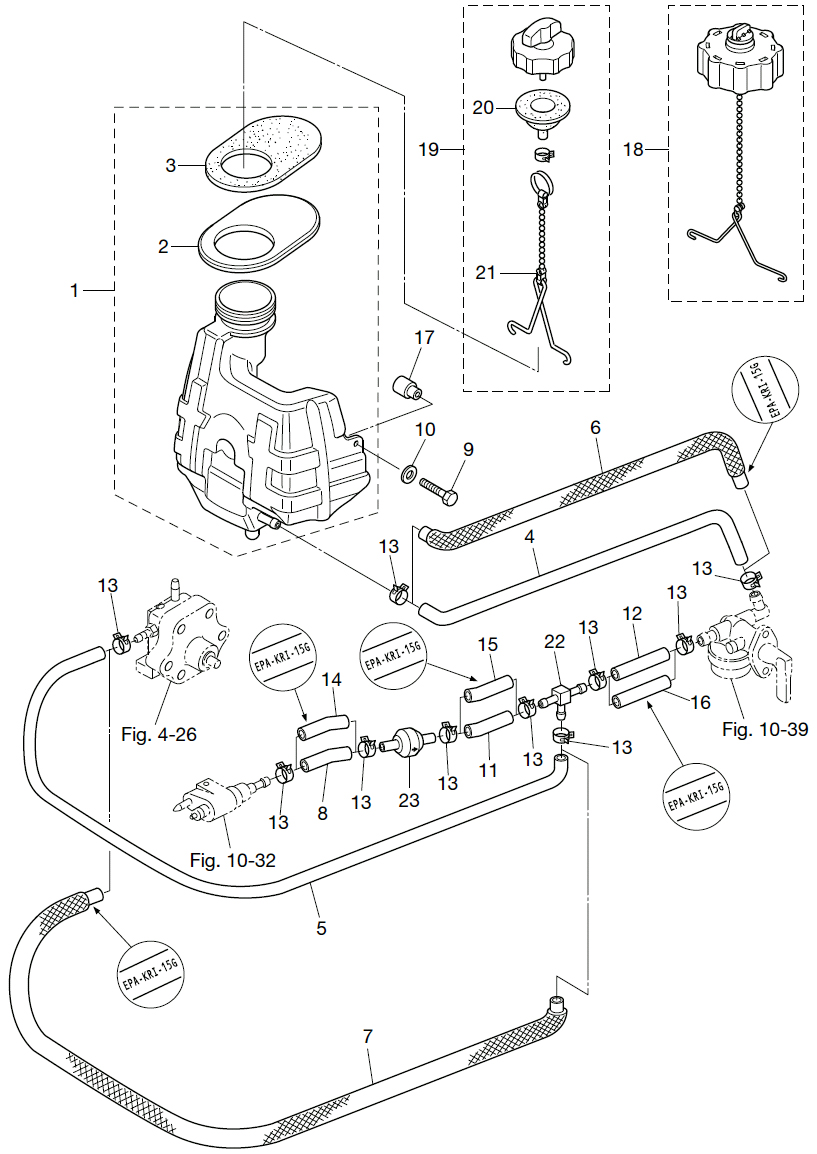

13. INTEGRAL FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK ASSY(1) FUEL TANK ASSY(2) SEALING PLATE(3) FUEL TANK SEAL(4) FUEL HOSE 275-20(5) FUEL HOSE 455-25(6) FUEL HOSE W/PROTECTOR 275-20(7) FUEL HOSE W/PROTECTOR 455-25(8) FUEL HOSE 30-25(9) BOLT(10) WASHER 6.5-23-1.5(11) FUEL HOSE L=35(12) FUEL HOSE L=90(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(13) CLIP o9.4(14) LOW PERMEATION HOSE 30-25(15) LOW PERMEATION HOSE L=35(16) LOW PERMEATION HOSE L=90(17) SPACER 7.2-10-6(18) FUEL TANK CAP ASSY(19) FUEL TANK CAP ASSY(20) TANK FILLER CAP GASKET(21) CAP HOOK(22) PIPE JOINT 4-4(23) NON-RETURN VALVE



Parts List
2013 :: 6 HP :: 4 Stroke Tohatsu MFS6C :: INTEGRAL FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY 3GR703102M 3GR703102M STD $108.65 1
(1) FUEL TANK ASSY 3JE703100M 3JE-70310-0 FOR USA MODEL $108.65 1
(2) SEALING PLATE 3JD051161M 3JD-05116-0 $3.62 1
(3) FUEL TANK SEAL 3JD700360M 3JD-70036-0 $5.93 1
(4) FUEL HOSE 275-20 3JK703260M 3JK-02161-0 STD / FUEL TANK-FUEL VALVE $10.10 1
(5) FUEL HOSE 455-25 3JS703150M 3JS-02161-0 STD / PIPE JOINT-FUEL PUMP $12.06 1
(6) FUEL HOSE W/PROTECTOR 275-20 3GR021600M 3GR-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $14.98 1
(7) FUEL HOSE W/PROTECTOR 455-25 3JK021600M 3JK-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $39.59 1
(8) FUEL HOSE 30-25 3JJ703250M 3JJ-70325-0 STD / FUEL CONNECTOR-VALVE $6.35 1
(9) BOLT 9101030630M 910103-0630 $1.21 2
(10) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 2
(11) FUEL HOSE L=35 3JD703250M 3JD-70325-0 STD / VALVE-PIPE JOINT $1.90 1
(12) FUEL HOSE L=90 3JD022040M 3JD-02204-0 STD / PIPE JOINT-FUEL VALVE $3.17 1
(13) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 10
(14) LOW PERMEATION HOSE 30-25 3LE022070M 3LE-02207-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $8.74 1
(15) LOW PERMEATION HOSE L=35 3GR021300M 3GR-02130-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $3.36 1
(16) LOW PERMEATION HOSE L=90 3JD021300M 3JD-02130-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $5.27 1 Sold Out View More Details
(17) SPACER 7.2-10-6 3GR700150M 3GR-70015-0 $5.27 2
(18) FUEL TANK CAP ASSY 3GT703210M 3GT-70321-0 LOW PERMEATION PARTS / FOR USA MODEL $33.52 1
(19) FUEL TANK CAP ASSY 3GR700200M 3H9-70020-0 STD $14.44 1 Sold Out View More Details
(20) TANK FILLER CAP GASKET 3GR700210M 3GR-70021-0 STD $4.00 1
(21) TANK CAP HOOK 3C8710170M 3C8-71017-0 STD $10.12 1
(22) HOSE JOINT T TYPE 394700130M 394-70013-0 $2.19 1
(23) NON RETURN VALVE 394703270M 394-70327-0 $14.90 1
