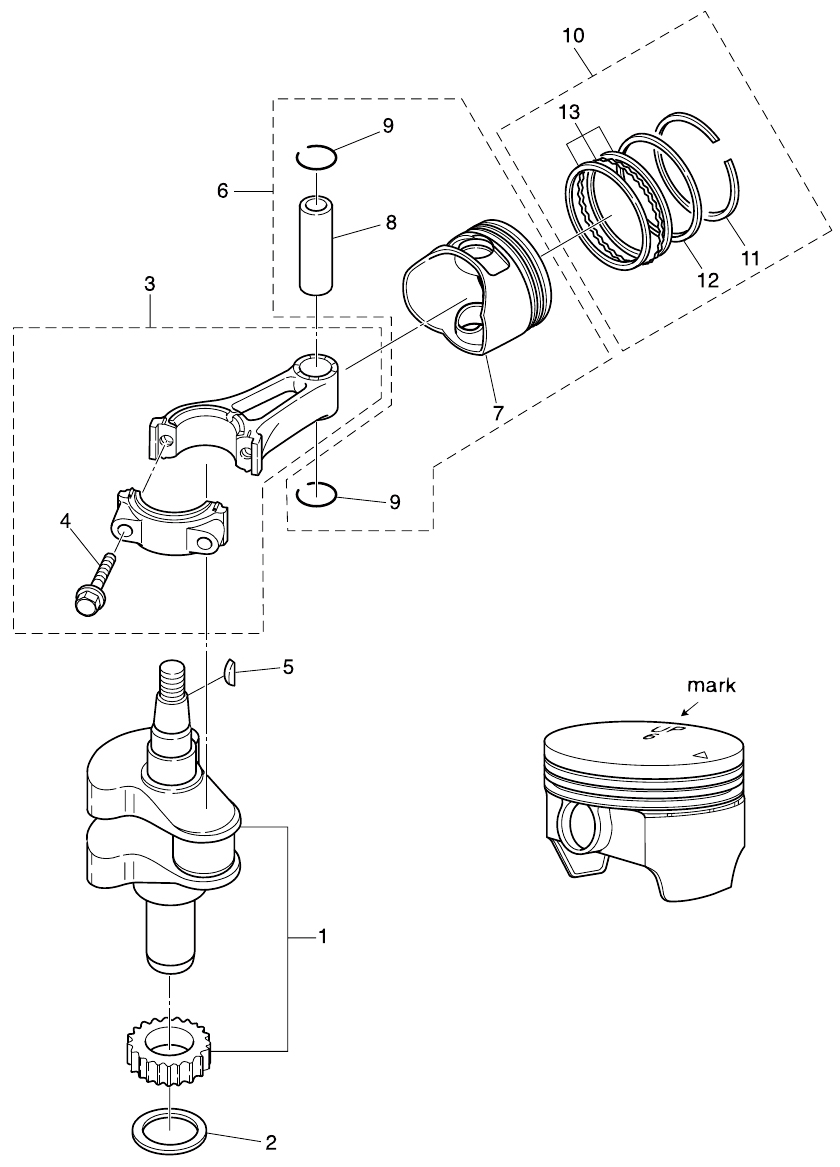

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(2) THRUST PLATE(3) CONNECTING ROD ASSY(4) CONNECTING ROD BOLT(5) KEY(6) PISTON REPAIR KIT(6) PISTON REPAIR KIT (0.5 O/S)(7) PISTON(7) PISTON (0.5 O/S)(8) PISTON PIN(9) PISTON PIN CLIP(9) PISTON PIN CLIP(10) PISTON RING SET(10) PISTON RING SET (0.5 O/S)(11) PISTON RING(11) PISTON RING (0.5 O/S)(12) PISTON RING(12) PISTON RING (0.5 O/S)(13) PISTON RING-OIL(13) PISTON RING-OIL (0.5 O/S)



Parts List
2013 :: 6 HP :: 4 Stroke Tohatsu MFS6C :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3H6000300M 3H6-00030-0 $183.18 1
(2) WASHER 25.4-36-1 3H6001150M 3H6-00115-0 $1.57 1
(3) CONNECTING ROD 3H6000400M 3H6-00040-0 $45.55 1
(4) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(5) MAGNETO KEY 338001310M 338-00131-0 MAGNETO $3.39 1
(6) PISTON REPAIR KIT 3JD871300M 3JD-87130-0 STD $0.00 1 Sold Out View More Details
(6) PISTON REPAIR KIT (0.5 O/S) 3JD871310M 3JD-87131-0 OPT $0.00 1 Sold Out View More Details
(7) PISTON 3R4000013M 3R4-00001-3 STD / MARK 6 $36.49 1
(7) PISTON (0.5 O/S) 3R4000043M 3R4-00004-3 OPT $0.00 1 Sold Out View More Details
(8) PISTON PIN 3AE000210M 3AE-00021-0 $8.63 1
(9) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 2
(10) PISTON RING SET 3JD871230M 3JD-87123-0 STD $18.69 1
(10) PISTON RING SET (0.5 O/S) 3JD871240M 3JD-87124-0 OPT $19.23 1
(11) PISTON RING TOP 3H6000110M 3H6-00011-0 STD 1ST $10.41 1
(11) PISTON RING TOP (0.5MM O/S) 3H6000140M 3H6-00014-0 OPT 1ST $7.62 1
(12) PISTON RING 2ND 3H6000120M 3H6-00012-0 STD 2ND $6.27 1
(12) PISTON RING 2ND (0.5MM O/S) 3H6000150M 3H6-00015-0 OPT 2ND $7.62 1
(13) PISTON RING OIL 3H6000130M 3H6-00013-0 STD OIL $8.47 1
(13) PISTON RING OIL (0.5MM O/S) 3H6000160M 3H6-00016-0 OPT OIL $7.62 1
