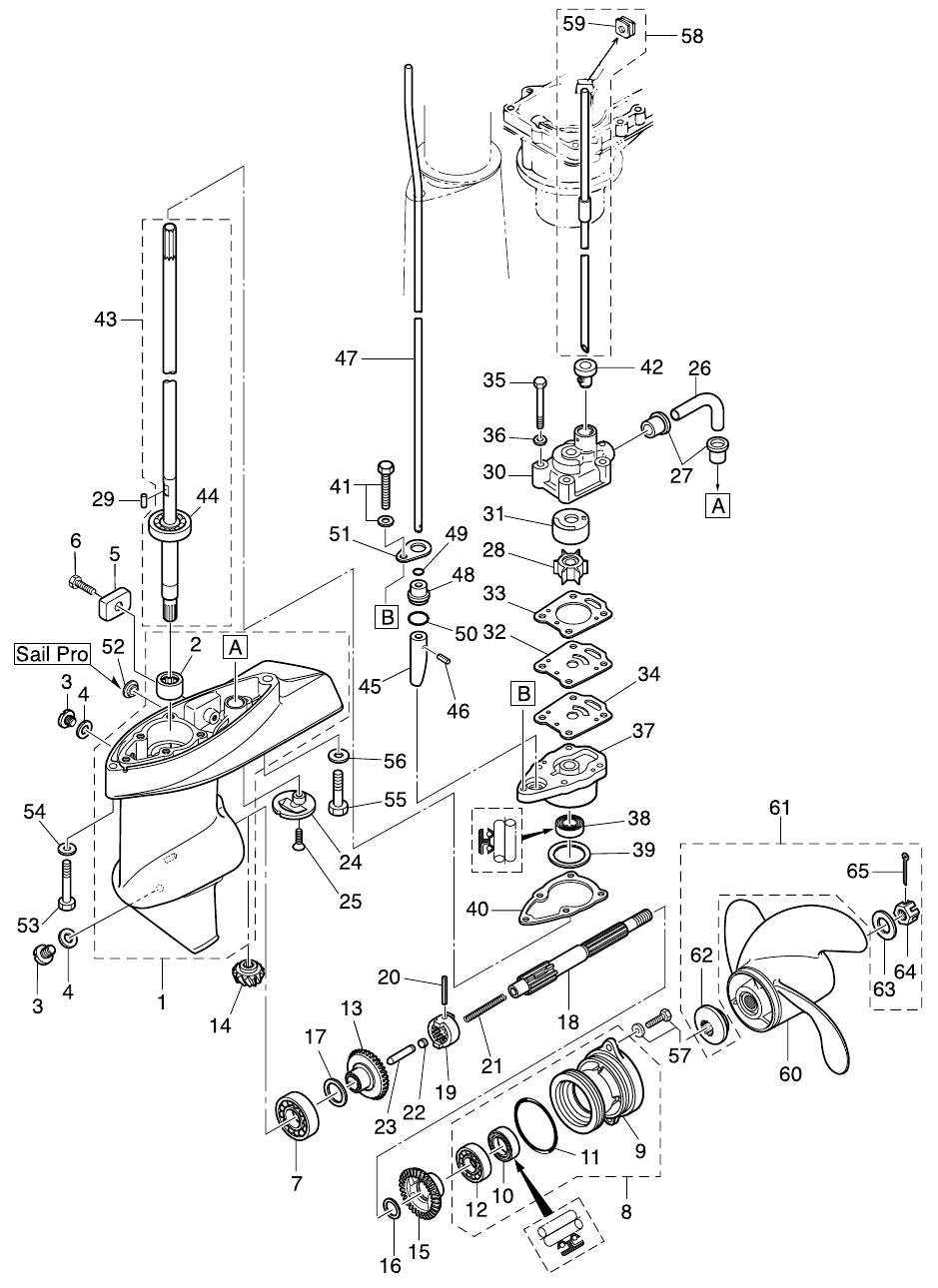

8. GEAR CASE

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(1) GEAR CASE ASSY(2) ROLLER BEARING 14-20-12(3) PLUG 8-8(3) PLUG 8-8(4) GASKET 8.1-15-1(4) GASKET 8.1-15-1(5) ANODE(6) BOLT(7) BALL BEARING 6004(8) PROPELLER SHAFT HOUSING ASSY(9) PROPELLER SHAFT HOUSING(10) OIL SEAL 15-28-10(11) O-RING 3.2-47(12) BALL BEARING 6002(13) BEVEL GEAR ASSY (A)(14) BEVEL GEAR B(15) BEVEL GEAR ASSY (C)(16) WASHER 15.2-19-1.9(17) SHIM 21-28-0.1(17) SHIM 21-28-0.15(18) PROPELLER SHAFT(19) CLUTCH(20) PIN 3.5-28(21) SPRING(22) SPRING RETAINER(23) PUSH ROD(24) WATER STRAINER(25) SCREW(26) WATER PIPE (LOWER)(27) SEAL(28) WATER PUMP IMPELLER(29) KEY o2-11(30) PUMP CASE (UPPER)(31) PUMP CASE LINER(32) WATER PUMP GUIDE PLATE(33) PUMP CASE GASKET(34) GUIDE PLATE GASKET(35) BOLT(36) WASHER(37) PUMP CASE (LOWER)(38) OIL SEAL 10-24-8(39) SHIM 26.5-34.8-0.1(39) SHIM 26.5-34.8-0.15(40) PUMP CASE GASKET (LOWER)(41) BOLT(42) WATER PIPE SEAL (LOWER)(43) DRIVE SHAFT ASSY (S)(43) DRIVE SHAFT ASSY (L)(43) DRIVE SHAFT ASSY (UL)(44) BALL BEARING 6300(45) CLUTCH CAM(46) SPRING PIN 3-10(47) CAM ROD (S)(47) CAM ROD (L)(47) CAM ROD (UL)(48) CAM ROD BUSHING(49) O-RING 2.5-4.9(50) O-RING 2.4-15.4(51) STOPPER(52) GROMMET(53) BOLT(54) WASHER(55) BOLT(56) WASHER(57) BOLT(58) WATER PIPE ASSY (S)(58) WATER PIPE ASSY (L)(58) WATER PIPE ASSY (UL)(59) GROMMET(60) PROPELLER ASSY (6")(60) PROPELLER ASSY (7")(60) PROPELLER ASSY (8")(60) PROPELLER ASSY (9")(61) PROPELLER HARDWARE KIT(62) THRUST HOLDER ASSY(63) WASHER 10.5-28-2(64) PROPELLER NUT(65) SPLIT PIN 3-18



Parts List
2013 :: 6 HP :: 4 Stroke Nissan NSF6C :: GEAR CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE ASSY 369Q600003 369Q60000-3 STD $139.87 1
(1) GEAR CASE UL 399Q600003 399Q60000-3 FOR 6PS / SAIL PRO $0.00 1 Sold Out View More Details
(2) NEEDLE BEARING 14-20-12 369602110M 369-60211-0 $26.40 1
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) ANODE 3H6602180M 3H6-60218-0 $5.53 1
(6) BOLT 9101030616M 910113-0616 $0.98 1
(7) BALL BEARING 6004 960106004M 9601-0-6004 $10.98 1
(8) PROPELLER SHAFT HOUSING ASSY 369Q873231 369Q87323-1 $75.08 1
(9) PROPELLER SHAFT HOUSING 369Q601011 369Q60101-1 $33.81 1 Sold Out View More Details
(10) OIL SEAL 15-28-10 369601110M 369-60111-0 $4.38 1
(11) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(12) BALL BEARING 6002 960106002M 9601-0-6002 $10.98 1
(13) BEVEL GEAR A 369640102M 369-64010-2 $44.34 1
(14) BEVEL GEAR B 369640202M 369-64020-2 $20.68 1
(15) BEVEL GEAR C 369640302M 369-64030-2 $44.34 1
(16) WASHER 15.2-19-1.9 369640320M 369-64032-0 $3.27 1
(17) SHIM 21-28-.01 369640140M 369-64014-0 $1.98 0
(17) SHIM 21-28-0.15 369640150M 369-64015-0 $1.98 0
(18) PROPELLER SHAFT 369642111M 369-64211-1 $132.17 1
(19) CLUTCH 301642151M 301-64215-1 $24.53 1
(20) SPRING PIN 3.5-28 301642170M 301-64217-0 $1.41 1
(21) CLUTCH SPRING 393642210M 393-64221-0 $1.73 1
(22) CLUTCH SPRING RETAINER 369642220M 369-64222-0 $1.85 1 Sold Out View More Details
(23) CLUTCH PUSH ROD 369642230M 369-64223-0 $4.83 1
(24) WATER STRAINER 369602060M 369-60206-0 $3.87 1
(25) SCREW 9218030620M 921803-0620 $1.06 1
(26) LOWER WATER PIPE 369650350M 369-65035-0 $5.13 1
(27) LOWER WATER PIPE SEAL 369650360M 369-65036-0 $2.07 2
(28) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.43 1
(29) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 PUMP IMPELLER $1.50 1
(30) PUMP CASE (UPPER) 369650160M 369-65016-0 $27.72 1
(31) PUMP CASE LINER 369650110M 369-65011-0 $5.29 1
(32) WATER PUMP GUIDE PLATE 369650250M 369-65025-0 $2.88 1
(33) PUMP CASE GASKET (UPPER) 369650180M 369-65018-0 $1.82 1
(34) PUMP GUIDE PLATE GASKET 369650290M 369-65029-0 $1.85 1
(35) BOLT 9161E30645M 916113-0645 $2.58 4
(36) WASHER 9401030600M 940103-0600 $0.70 4
(37) PUMP CASE (LOWER) 369650171M 369-65017-1 $29.88 1
(38) OIL SEAL 10-24-8 369602230M 369-60223-0 $4.03 1
(39) SHIM 26.5 - 34.8 - 0.1 369640811M 369-64081-1 $0.00 0 Sold Out View More Details
(39) SHIM 26.5 - 34.8 - 0.15 369640821M 369-64082-1 $0.00 0 Sold Out View More Details
(40) PUMP CASE GASKET (LOWER) 369650200M 369-65020-0 $2.31 1
(41) BOLT 9101035625M 910103-5625 $1.47 1
(42) WATER PIPE SEAL (LOWER) 369650140M 369-65014-0 $2.07 1
(43) DRIVE SHAFT S 369643010M 369-64301-0 FOR TRANSOM S $131.17 1
(43) DRIVE SHAFT L 369643020M 369-64302-0 FOR TRANSOM L $138.07 1
(43) DRIVE SHAFT UL 369643030M 369-64303-0 FOR TRANSOM UL $151.86 1
(44) BALL BEARING 6300 960106300M 9601-0-6300 $11.82 1
(45) CLUTCH CAM 369660110M 369-66011-0 $17.77 1
(46) SPRING PIN 3-10 9514070310M 951407-0310 $0.81 1
(47) CAM ROD (S) 369660121M 369-66012-0 FOR TRANSOM S $16.10 1
(47) CAM ROD (L) 369660131M 369-66013-1 FOR TRANSOM L $17.49 1
(47) CAM ROD (UL) 369660142M 369-66014-2 FOR TRANSOM UL $19.09 1
(48) CAM ROD BUSHING 369660310M 369-66031-0 $3.39 1
(49) O-RING 2.5-4.9 369660211M 369-66021-1 $1.27 1
(50) O-RING 2.4-15.4 332660320M 332-66032-0 $1.41 1
(51) STOPPER 369660330M 369-66033-0 $2.07 1
(52) GROMMET 3DK610160M 3DK-61016-0 FOR 6PS / SAIL PRO $2.25 2
(53) BOLT 9161E30645M 916113-0645 $2.58 1
(54) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(55) BOLT 9161E30835M 916113-0835 $2.01 1
(56) WASHER 9401E30800M 9401E3-0800 $0.65 1
(57) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 2
(58) WATER PIPE S 369651000M 369-65100-0 FOR TRANSOM S $17.77 1
(58) WATER PIPE L 369651100M 369-65110-0 FOR TRANSOM L $19.09 1
(58) WATER PIPE UL 369651200M 369-65120-0 FOR TRANSOM UL $20.02 1
(59) WATER PIPE GROMMER (UPPER) 369651950M 369-65195-0 $0.72 1
(60) PROPELLER (8.375d X 6p) High Thrust 399B645121 399B64512-1 SAIL PRO / STD 3 X 200 X 152 $91.23 1
(60) PROPELLER ASSY (7) 3R1B645141 369-64514-1 4PS / STD 3 X 198 X 178 $85.10 1
(60) PROPELLER ASSY (8) 3R1B645161 369-64516-2 5/6PS / STD 3 X 198 X 203 $87.72 1
(60) PROPELLER ASSY (9) 369B645181 369-64518-1 OPT 3 X 200 X 229 $88.69 1
(61) PROPELLER HARDWARE KIT 3H6873260M 3H6-87326-0 $14.22 1
(62) PROPELLER THRUST HOLDER 3AS642300M 369-64231-1 $8.63 1
(63) WASHER 10.5-28-2 369641240M 369-64124-0 $4.20 1
(64) PROPELLER NUT 369641210M 369-64121-0 $8.80 1
(65) SPLIT PIN 3-18 9515030318M 951503-0318 $0.95 1
