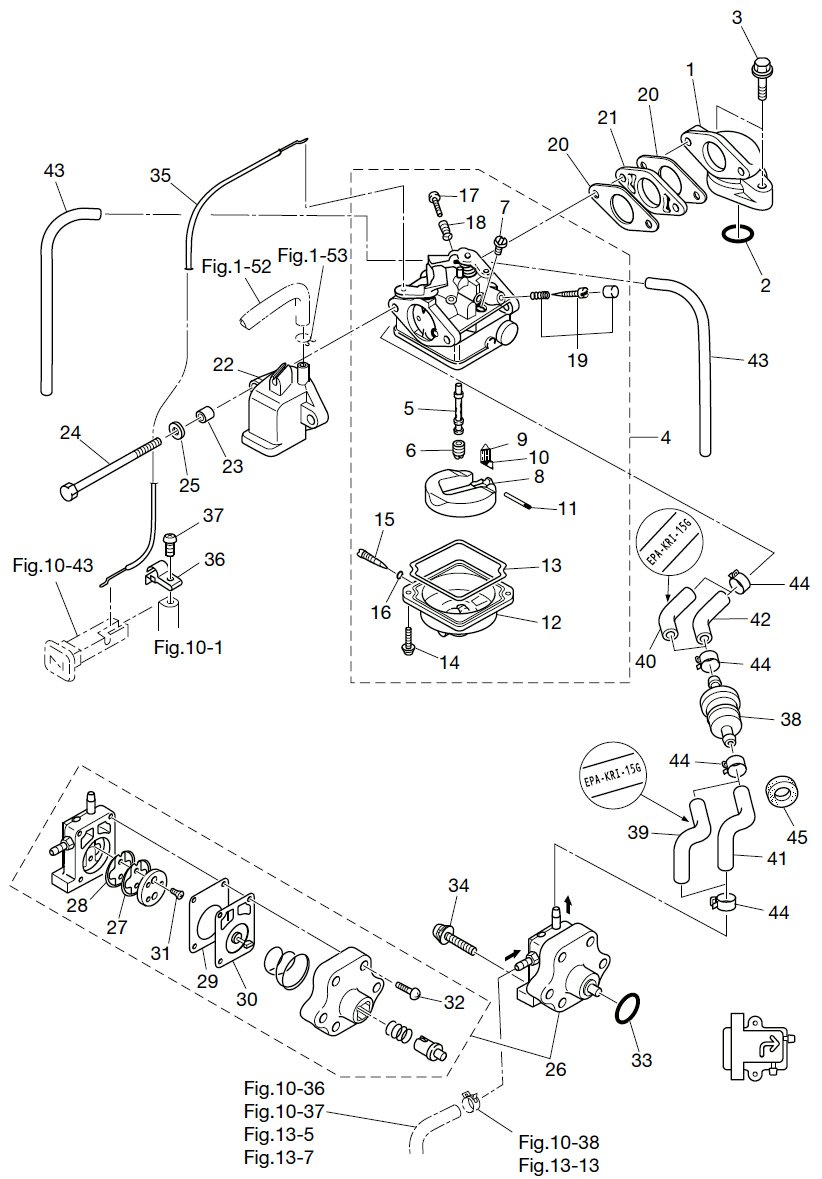

4. CARBURETOR & FUEL PUMP

Click Here for Microfiche Usage Tip
(1) INTAKE MANIFOLD ASSY(2) INTAKE MANIFOLD GASKET 2-33.5(3) BOLT(4) CARBURETOR ASSY(5) MAIN NOZZLE(6) MAIN JET (#70)(7) SLOW JET (#38)(8) FLOAT(9) FLOAT VALVE(10) CLIP(11) FLOAT ARM PIN(12) FLOAT CHAMBER(13) FLOAT CHAMBER O-RING(14) SCREW(15) DRAIN SCREW(16) O-RING(17) STOP SCREW(18) SPRING(19) PILOT SCREW(20) CARBURETOR GASKET(20) CARBURETOR GASKET(21) INSULATOR(22) INTAKE SILENCER ASSY(23) COLLAR 6.2-9-7.4(24) BOLT(25) WASHER(26) FUEL PUMP ASSY(27) CHECK VALVE(28) CHECK VALVE(29) PUMP BODY GASKET(30) PUMP DIAPHRAGM(31) SCREW(32) SCREW(33) O-RING 2.6-18.7(34) SCREW(35) CHOKE WIRE(36) CABLE HOLDER(37) SCREW(38) FUEL FILTER ASSY(39) LOW PERMEATION HOSE 24-29-24(40) LOW PERMEATION HOSE L=60(41) FUEL HOSE 24-29-24(42) FUEL HOSE L=60(43) HOSE(43) HOSE(44) CLIP o9.4(44) CLIP o9.4(44) CLIP o9.4(44) CLIP o9.4(45) RUBBER MOUNT 9-16-4.3



Parts List
2013 :: 6 HP :: 4 Stroke Nissan NSF6C :: CARBURETOR & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3H6B020100M 3H6B02010-0 $23.75 1
(2) O-RING 2-33.5 3H6021040M 3H6-02104-0 O-RING $2.60 1
(3) BOLT 9101245625M 910124-5625 $0.86 2
(4) CARBURETOR ASSY 3JE032000M 3JE-03200-0 3JEA / 6PS $188.55 1
(5) MAIN NOZZLE 3JE032520M 3JE-03252-0 6PS $13.60 1
(6) MAIN JET (#70) 3GR044700M 3GR-04470-0 6PS $7.55 1
(7) SLOW JET #38 3R1032540M 3R1-03254-0 4/5/6PS $6.49 1
(8) FLOAT 3H6032310M 3H6-03231-0 $16.34 1
(9) FLOAT VALVE 3H6032400M 3H6-03240-0 $10.17 1
(10) CLIP 3H6032440M 3H6-03244-0 $3.04 1
(11) FLOAT ARM PIN 3H6032320M 3H6-03232-0 $2.14 1
(12) FLOAT CHAMBER 3H6032210M 3H6-03221-0 $27.17 1
(13) FLOAT CHAMBER GASKET 3H6032220M 3H6-03222-0 $5.93 1
(14) SCREW 9225036412M 922503-6412 $1.47 2
(15) DRAIN SCREW 3H6032920M 3H6-03292-0 $3.55 1
(16) DRAIN SCREW O-RING 3H6032930M 3H6-03293-0 $1.79 1
(17) STOP SCREW 3H6032650M 3H6-03265-0 $5.58 1
(18) STOP SCREW SPRING 3H6032670M 3H6-03267-0 $1.18 1
(19) PILOT SCREW SET 3AS032660M 3AS-03266-0 5/6PS $14.08 1
(20) CARBURETOR GASKET 3H6020110M 3H6-02011-0 $1.93 2
(21) INSULATOR 3H6039521M 3H6-03952-1 $2.10 1
(22) INTAKE SILENCER ASSY 3GR024090M 3GR-02411-0 $7.55 1
(23) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(24) BOLT 9164F10685M 916481-0685 $1.98 2 Sold Out View More Details
(25) WASHER 9401030600M 940103-0600 $0.70 2
(26) FUEL PUMP ASSY 3H6040007M 3H6-04000-1 $66.10 1
(27) CHECK VALVE (P) 3H6040440M 3H6-04044-0 BLACK $2.58 1
(28) CHECK VALVE (R) 3H6040141M 3H6-04014-0 WHITE $5.57 1
(29) PUMP BODY GASKET 3H6040280M 3H6-04028-0 $7.02 1
(30) PUMP DIAPHRAGM 3H6040050M 3H6-04005-0 $30.87 1
(31) SCREW 9216030308M 921603-0308 $0.97 2
(32) SCREW 9225036418M 922503-6418 $0.76 4
(33) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(34) SCREW 9215037630M 921503-7630 $1.02 2
(35) CHOKE WIRE 3GR671970M 3GR-67197-0 $12.03 1
(36) CABLE HOLDER 3JD635050M 3JD-63505-0 $8.42 1
(37) SCREW 9215030510M 921503-0510 $0.81 1
(38) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(39) LOW PERMEATION HOSE 24-29-24 3GS022070M 3GS-02207-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $11.09 1 Sold Out View More Details
(40) LOW PERMEATION HOSE L=60 3JJ021300M 3JJ-02130-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $4.75 1
(41) FUEL HOSE 24-29-24 3GR022040M 3GR-02204-0 STD / FUEL PUMP-FUEL FILTER $8.42 1
(42) FUEL HOSE L=60 3JJ022040M 3JJ-02204-0 STD / FUEL FILTER-CARBURETOR $3.04 1
(43) HOSE 98AB30270M 98AB-30-270 98AB-301000 $10.72 2
(44) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 4
(45) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 1
