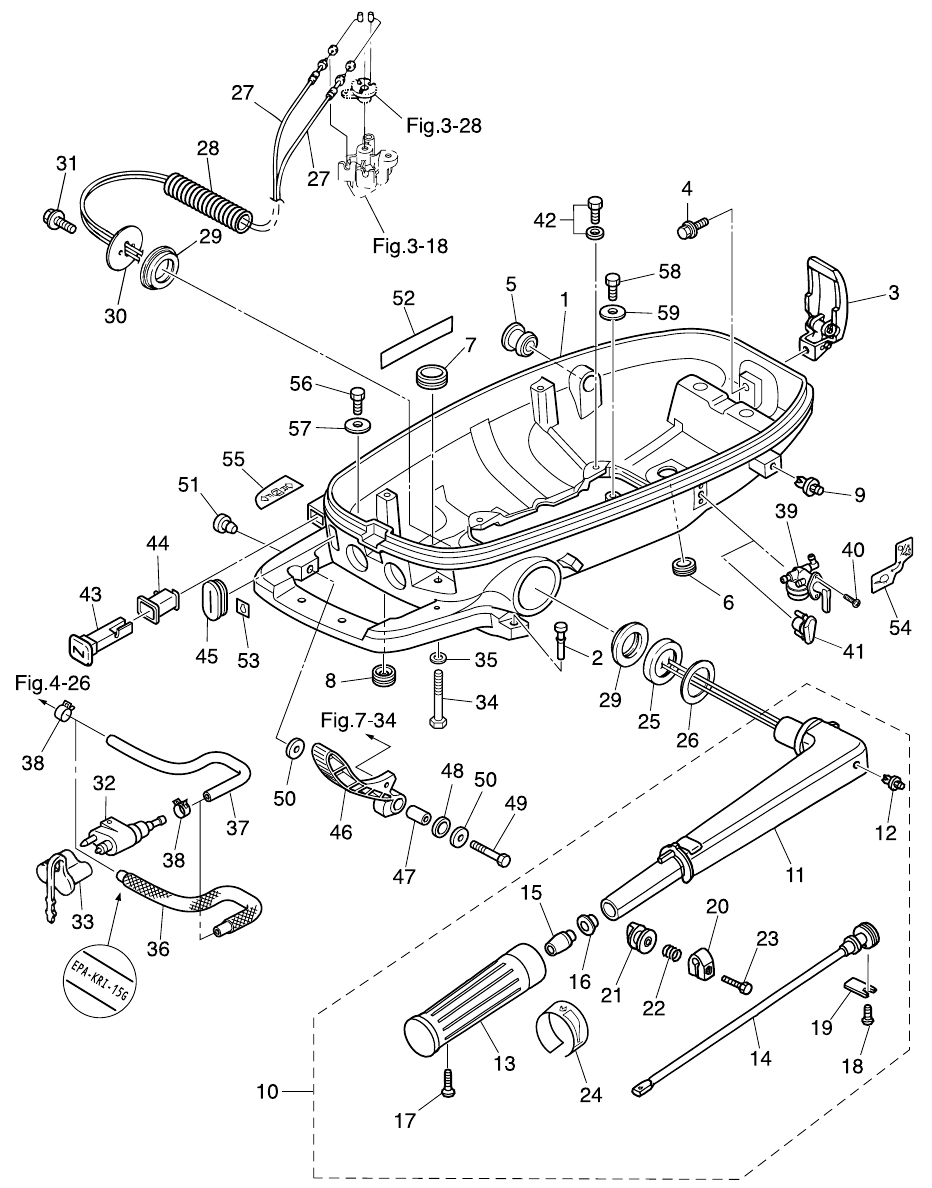

10. BOTTOM COWL & TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) GROMMET 22-3(3) COWL LATCH ASSY(4) BOLT(5) GROMMET 15.5-27(6) GROMMET 18-2.5(7) GROMMET 25-5(8) GROMMET 17-2.7(9) PLASTIC RIVET 6.5(10) TILLER HANDLE ASSY(11) TILLER HANDLE(12) PLASTIC RIVET 6.5(13) GRIP(14) THROTTLE SHAFT(15) THROTTLE SHAFT DAMPER(16) BUSHING 14-15.8-7(17) SCREW(18) SCREW(19) THROTTLE SHAFT SUPPORT(20) FRICTION PIECE(21) ADJUSTING NUT(22) SPRING(23) BOLT(24) THROTTLE DECAL(25) SPACER 33.5-55-3.3(26) WASHER 30-45-1(27) THROTTLE WIRE(27) THROTTLE WIRE(28) PROTECTOR(29) BUSHING(29) BUSHING(30) COVER(31) BOLT(32) FUEL CONNECTOR (MALE)(33) FUEL CONNECTOR PROTECTOR(34) BOLT(35) WASHER(36) FUEL HOSE W/PROTECTOR 353-40-30(37) FUEL HOSE 353-40-30(38) CLIP o9.4(38) CLIP o9.4(39) FUEL COCK ASSY(40) SCREW(41) GROMMET(42) BOLT(43) CHOKE ROD(44) CHOKE ROD BUSHING(45) GROMMET(46) SHIFT LEVER(47) COLLAR 15.9-17-9(48) WASHER 30-45-1(49) BOLT(50) WASHER 6.5-23-1.5(50) WASHER 6.5-23-1.5(51) CABLE TERMINAL PLUG(52) STORAGE DECAL(53) OIL PRESSURE DECAL(54) FUEL LEVER DECAL(55) SHIFT DECAL(56) BOLT(57) WASHER 6.5-23-1.5(58) BOLT(59) WASHER 6.5-23-1.5



Parts List
2013 :: 4 HP :: 4 Stroke Tohatsu MFS4C :: BOTTOM COWL & TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3GRQ671000 3GRQ67100-0 $174.29 1
(2) GROMMET 22-3 3GR671610M 3GR-67161-0 $2.22 1
(3) COWL LATCH ASSY 3AA671201M 3V1-67120-0 $20.93 1
(4) BOLT 9101035616M 910103-5616 $1.15 1
(5) GROMMET 15.5-27 3GR671870M 3GR-67187-0 $2.22 1
(6) GROMMET 18-2.5 338671630M 338-67163-0 $2.07 1
(7) GROMMET 25-5 3B7760930M 3B7-76093-0 $2.19 1
(8) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(9) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(10) TILLER HANDLE ASSY 3V1Q630034 3V1Q63003-0 $119.06 1
(11) TILLER HANDLE 3V1Q630113 3V1Q63011-0 $49.18 1
(12) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(13) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(14) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(15) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(16) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(17) SCREW 9208030518M 9208E3-0518 $0.92 1
(18) SCREW 9215E30612M 9215E3-0612 $0.93 1
(19) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(20) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(21) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(22) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(23) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(24) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(25) TILLER HANDLE SPACER 3H6630260M 3H6-63026-0 $3.51 1
(26) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(27) THROTTLE WIRE 3GR636000M 3GR-63600-0 $14.78 2 Sold Out View More Details
(28) PROTECTOR 3H6061330M 3H6-06133-0 $2.53 1
(29) TILLER HANDLE BUSHING 3H6631020M 3H6-63102-0 $3.37 2
(30) COVER 3GR631070M 3GR-63107-0 $7.60 1
(31) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 2
(32) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(33) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(34) BOLT 9101030625M 910113-0625 $0.95 1
(35) WASHER 9402030600M 940203-0600 $0.46 1
(36) FUEL HOSE W/PROTECTOR 353-40-30 3JF021600M 3JF-02160-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $36.46 0
(37) FUEL HOSE 353-40-30 3JG022030M 3JG-02161-0 SEPARATE FUEL TANK MODEL / STD CONNECTOR-F/PUMP $12.42 0
(38) CLIP ø 9.5 3AB351430M 121-35143-0 SEPARATE FUEL TANK MODEL $1.30 0
(39) FUEL COCK 3H9703110M 3H9-70311-0 FUEL VALVE / DUAL FUEL TANK MODEL $24.59 1 Sold Out View More Details
(40) SCREW 3GR838210M 3GR-83821-0 DUAL FUEL TANK MODEL $1.45 2
(41) GROMMET 3GR671290M 3GR-67129-0 SEPARATE FUEL TANK MODEL $4.12 0
(42) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 4
(43) CHOKE ROD 3H6671510M 3H6-67151-0 $4.09 1 Sold Out View More Details
(44) CHOKE ROD BUSHING 3GR671040M 3GR-67104-0 $3.50 1
(45) GROMMET 3GR662600M 3GR-66260-0 $3.68 1
(46) SHIFT LEVER 3GR661100M 3GR-66110-0 $25.35 1
(47) COLLAR 15.9-17-9 3GR630660M 3GR-63066-0 $7.82 1
(48) WASHER 30-45-1 3GR631080M 3GR-63108-0 $2.10 1
(49) BOLT 3H6624450M 3H6-62445-0 $2.10 1
(50) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 2
(51) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.50 1
(52) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(53) OIL PRESSURE DECAL 3BA761990M 3BA-76199-0 $1.20 1
(54) FUEL LEVER DECAL 3JJ720240M 3JJ-72024-0 $3.64 1
(55) SHIFT DECAL 3JJ675780M 3JJ-67578-0 $4.08 1
(56) BOLT 9101030612M 910113-0612 DUAL FUEL TANK MODEL $0.84 2
(57) WASHER 6.5-23-1.5 345051221M 345-05122-1 DUAL FUEL TANK MODEL $2.17 2
(58) BOLT 9101030612M 910113-0612 SEPARATE FUEL TANK MODEL / STD $0.84 0
(59) WASHER 6.5-23-1.5 345051221M 345-05122-1 SEPARATE FUEL TANK MODEL / STD $2.17 0
