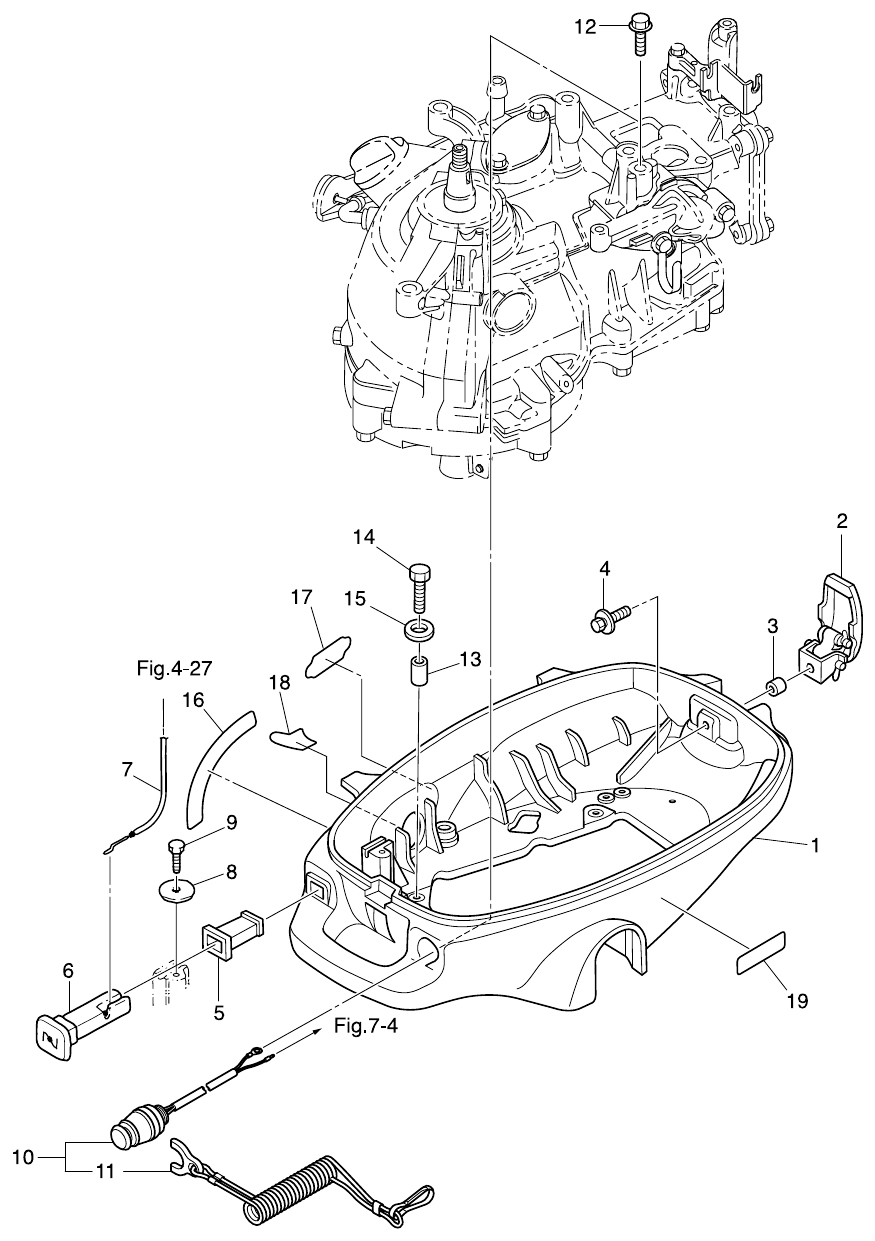

13. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) COWL LATCH ASSY(3) COLLAR 6.2-9-7.4(4) BOLT(5) CHOKE ROD BUSHING(6) CHOKE ROD(7) CHOKE WIRE(8) WASHER 6.5-21-1(9) BOLT(10) STOP SWITCH ASSY(11) STOP SWITCH LANYARD ASSY(12) BOLT(13) COLLAR 6.4-10-4.7(14) BOLT(15) WASHER 6-16-1.5(16) SHIFT DECAL(17) FUEL LEVER DECAL(18) OIL LEVEL DECAL(19) STORAGE DECAL



Parts List
2013 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3ABQ671000 3ABQ67100-0 $161.97 1
(2) COWL LATCH ASSY 3GT671201M 3GT-67120-1 $16.66 1
(3) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 1 Sold Out View More Details
(4) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 1
(5) CHOKE ROD BUSHING 3AB671040M 3AB-67104-0 $3.46 1
(6) CHOKE ROD 3H6671510M 3H6-67151-0 $4.09 1 Sold Out View More Details
(7) CHOKE LINK CABLE 3AB671970M 3AB-67197-0 $6.88 1
(8) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(9) BOLT 9101030612M 910113-0612 $0.84 1
(10) STOP SWITCH ASSY 3GR068700M 3GR-06870-0 $45.96 1
(11) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(12) BOLT 9101035612M 910103-5612 GROUND $1.07 1
(13) COLLAR 6.4-10-4.7 353062830M 353-06283-0 $4.03 4
(14) BOLT 9101E30616M 9101E3-0616 $0.98 4
(15) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(16) SHIFT DECAL 3BN675780M 3AB-67578-0 N - F $3.52 1
(17) FUEL LEVER DECAL 3AB720242M 3AB-72024-2 OFF - ON $3.51 1
(18) OIL LEVEL DECAL 3GT720460M 3GT-72046-0 LOWER $2.12 1
(19) STORAGE DECAL 3AB675720M 3AB-67572-0 UP $2.63 1
