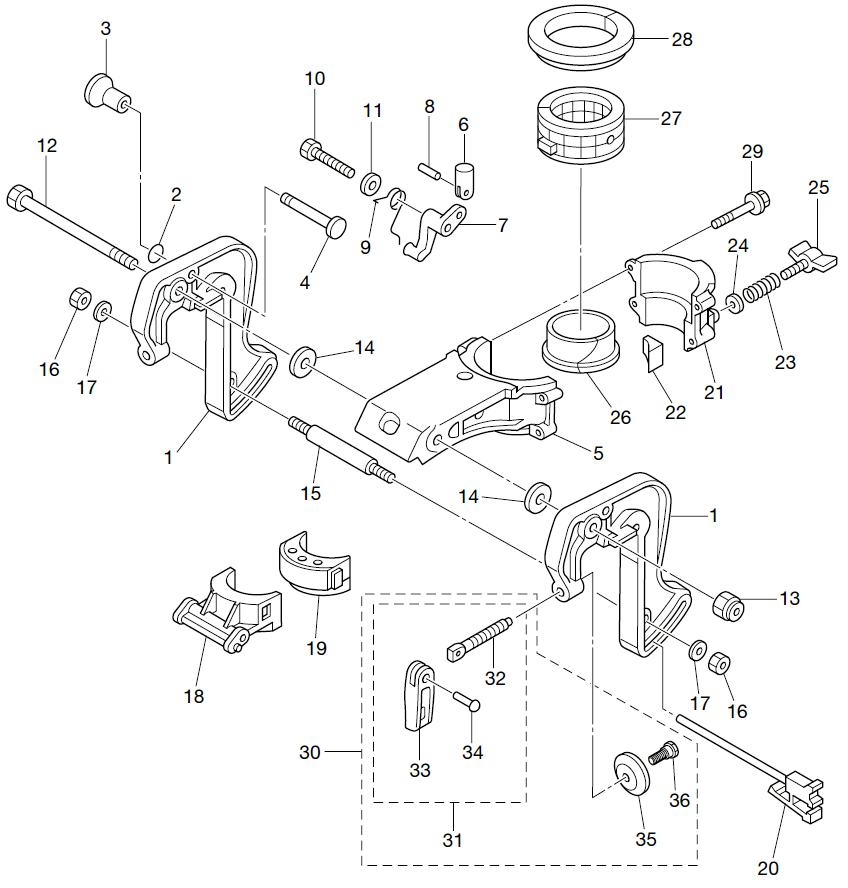

11. CLAMP BRACKET & SWIVEL BRACKET

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET(1) CLAMP BRACKET(2) O-RING 2.4-9.5(3) KNOB(4) TILT STOPPER(5) SWIVEL BRACKET(6) STOPPER(7) LEVER(8) SPRING PIN 2-12(9) SPRING(10) BOLT(11) WASHER(12) BOLT 8-122(13) NYLON NUT 8-P1.25(14) WASHER 8.5-28-1(14) WASHER 8.5-28-1(15) DISTANCE PIECE(16) NUT(16) NUT(17) WASHER(17) WASHER(18) THRUST SUPPORTER(19) DAMPER (LOWER)(20) THRUST ROD ASSY(21) SWIVEL BRACKET(22) FRICTION PIECE(23) SPRING(24) WASHER(25) FRICTION KNOB(26) BUSHING(27) BUSHING(28) THRUST BUSHING(29) BOLT 6-35(30) CLAMP SCREW KIT(31) CLAMP SCREW ASSY(32) CLAMP SCREW(33) CLAMP SCREW HANDLE(34) RIVET 3-22(35) CLAMP SCREW PAD(36) SHOULDER BOLT



Parts List
2013 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: CLAMP BRACKET & SWIVEL BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET 3ABQ621112 3ABQ62111-0 $41.59 1 Sold Out View More Details
(2) O-RING 2.4-9.5 301660230M 301-66023-0 $1.02 1
(3) TILT STOPPER KNOB 309624630M 309-62463-0 $4.19 1
(4) TILT STOPPER 3AB624643M 3AB-62464-3 $0.00 1 Sold Out View More Details
(5) SWIVEL BRACKET 3ABQ623911 3ABQ62391-0 $55.89 1
(6) STOPPER 3AB663341M 3AB-66334-1 $0.00 1 Sold Out View More Details
(7) LEVER 3AB630680M 3AB-63068-0 $2.70 1
(8) SPRING PIN 2-12 9514030212M 951403-0212 $0.70 1
(9) SPRING 3AB663360M 3AB-66336-0 $4.69 1
(10) BOLT 9161E30650M 916113-0650 $2.42 1
(11) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(12) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(13) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(14) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(15) DISTANCE PIECE 309621180M 309-62118-0 $7.05 1
(16) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(17) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(18) THRUST SUPPORTER 3AB622120M 3AB-62212-0 $5.25 1
(19) DAMPER (LOWER) 3AB613361M 3AB-61336-0 $23.56 1
(20) THRUST ROD 3F0621600M 3F0-62160-0 $12.08 1
(21) SWIVEL BRACKET 3ABQ623921 3ABQ62392-0 $30.92 1
(22) FRICTION PLATE 309624412M 309-62441-2 $5.55 1
(23) FRICTION PLATE SPRING 309624461M 309-62446-1 $1.59 1
(24) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(25) FRICTION PLATE SCREW 309Q624422 309Q62442-2 $8.17 1
(26) BUSHING 3AB623211M 3AB-62321-1 $4.51 1
(27) BUSHING 393624161M 393-62416-0 $12.66 1
(28) THRUST BUSHING 3H6623250M 3H6-62325-0 $9.92 1
(29) BOLT 6-35 PRE-COATED 3V1600011M 3V1-60001-1 $3.43 4
(30) CLAMP SCREW KIT 3GTQ621051 3GTQ621051 $26.51 2
(31) CLAMP SCREW ASSY 3GTQ621081 3GTQ621081 $0.00 1 Sold Out View More Details
(32) CLAMP SCREW 369621061M 369621061M $22.95 1
(33) CLAMP SCREW HANDLE 3ABQ621020 3AB-62102-0 $9.29 1
(34) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 1
(35) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(36) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
