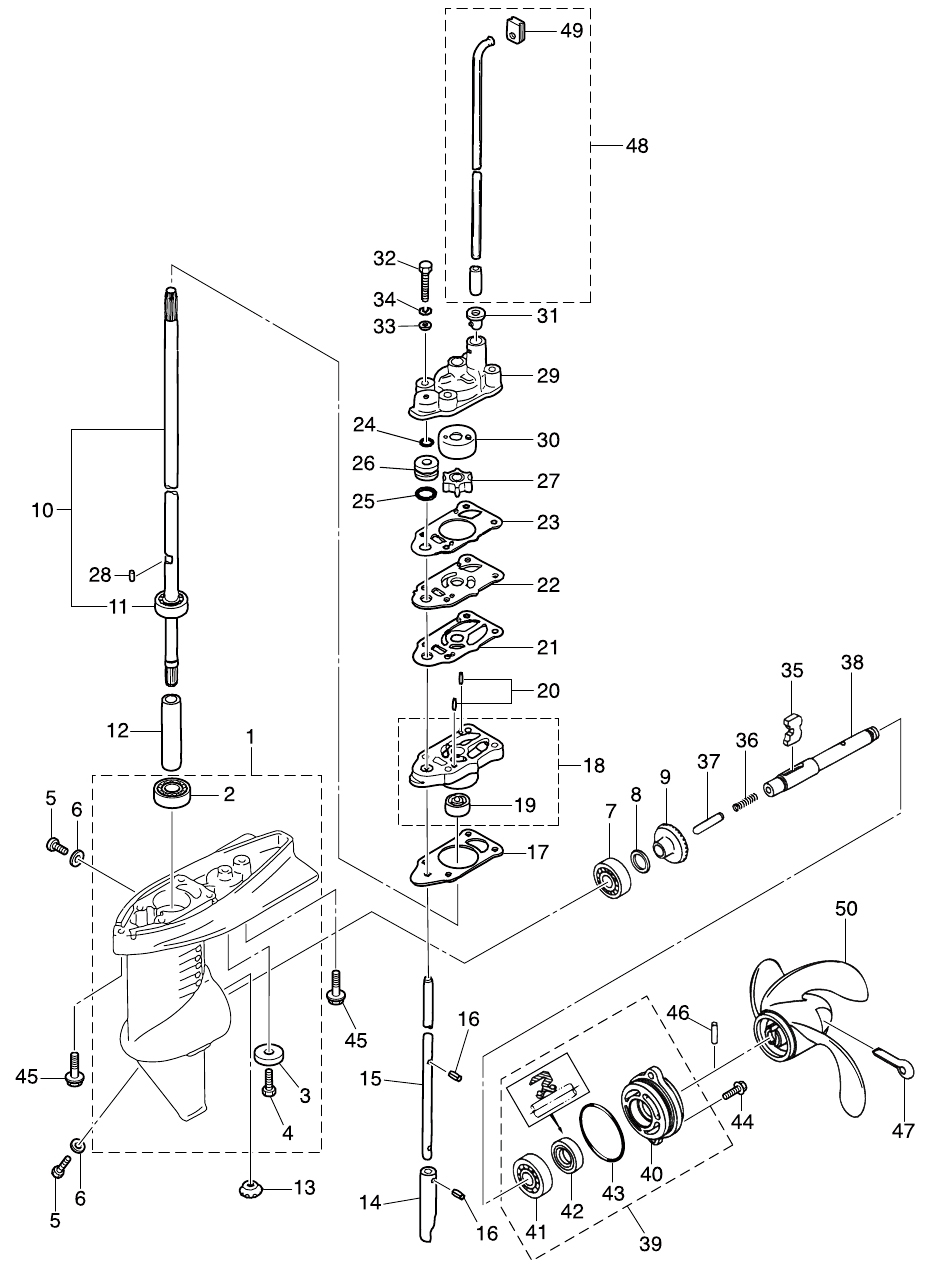

10. GEAR CASE

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) BALL BEARING 6000(3) ANODE(4) BOLT(5) PLUG 8-8(5) PLUG 8-8(6) GASKET8.1-15-1(6) GASKET8.1-15-1(7) BALL BEARING 6004(8) SHIM 21-28-0.1(8) SHIM 21-28-0.15(9) BEVEL GEAR ASSY (A)(10) DRIVE SHAFT ASSY (S)(10) DRIVE SHAFT ASSY (L)(11) BALL BEARING 6000(12) SPACER 10.1-15-72(13) BEVEL GEAR B(14) CLUTCH CAM(15) CAM ROD (S)(15) CAM ROD (L)(16) SPRING PIN 3-8(16) SPRING PIN 3-8(17) PUMP CASE GASKET (LOWER)(18) PUMP CASE ASSY (LOWER)(19) OIL SEAL 10-22-8(20) KEY o3-11(21) GUIDE PLATE GASKET(22) WATER PUMP GUIDE PLATE(23) PUMP CASE GASKET(24) O-RING 2.5-4.9(25) O-RING 2.4-9.5(26) CAM ROD BUSHING(27) WATER PUMP IMPELLER(28) KEY o2-11(29) PUMP CASE (UPPER)(30) PUMP CASE LINER(31) GROMMET(32) BOLT(33) WASHER(34) SPRING WASHER(35) CLUTCH(36) SPRING(37) PUSH ROD(38) PROPELLER SHAFT(39) PROPELLER SHAFT HOUSING ASSY(40) PROPELLER SHAFT HOUSING(41) BALL BEARING 6001(42) OIL SEAL 12-24-8(43) O-RING 3.2-47(44) BOLT(45) BOLT(45) BOLT(46) SHEAR PIN 4-24(47) SPLIT PIN 4-35(48) WATER PIPE ASSY (S)(48) WATER PIPE ASSY (L)(49) GROMMET(50) PROPELLER ASSY (4.5")(50) PROPELLER ASSY (6")(50) PROPELLER ASSY (7")(50) PROPELLER ASSY (6")



Parts List
2013 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: GEAR CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE ASSY 3BMQ600001 3BMQ60000-1 $129.58 1
(2) BALL BEARING 6000 3AB602130M 3AB-60213-0 $11.19 1
(3) ANODE 338602182M 338-60218-2 $9.20 1
(4) BOLT 9101030616M 910113-0616 $0.98 1
(5) WATER PLUG 332600052M 332-60005-2 $5.07 2
(6) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(7) BALL BEARING 6004 960106004M 9601-0-6004 $10.98 1
(8) SHIM 21-28-.01 369640140M 369-64014-0 $1.98 0
(8) SHIM 21-28-0.15 369640150M 369-64015-0 $1.98 0
(9) BEVEL GEAR A 369640102M 369-64010-2 $44.34 1
(10) DRIVE SHAFT S 3AB643060M 3AB-64306-0 FOR TRANSOM S $117.39 1
(10) DRIVE SHAFT L 3AB643070M 3AB-64307-0 FOR TRANSOM L $124.25 1
(11) BALL BEARING 6000 3AB602130M 3AB-60213-0 $11.19 1
(12) SPACER 10.1-15-72 3F0643210M 3F0-64321-0 $7.59 1
(13) BEVEL GEAR B 369640202M 369-64020-2 $20.68 1
(14) CLUTCH CAM 3F0660110M 3F0-66011-0 $25.08 1
(15) CAM ROD S 3F0660120M 3F0-66012-0 FOR TRANSOM S $15.64 1
(15) CAM ROD L 3F0660130M 3F0-66013-0 FOR TRANSOM L $0.00 1 Sold Out View More Details
(16) SPRING PIN 3-8 9514070308M 951407-0308 $0.90 2
(17) PUMP CASE GASKET (LOWER) 3F0650200M 3F0-65020-0 $2.56 1
(18) PUMP CASE ASSY (LOWER) 3H2650401M 3H2-65040-1 $31.51 1
(19) OIL SEAL 10-22-8 3F0602230M 3F0-60223-0 $7.71 1
(20) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.45 2
(21) PUMP GUIDE PLATE GASKET 3F0650290M 3F0-65029-0 $2.07 1
(22) WATER PUMP GUIDE PLATE 3AB650250M 3AB-65025-0 $4.86 1
(23) PUMP CASE GASKET (UPPER) 3F0650180M 3F0-65018-0 $2.07 1
(24) O-RING 2.5-4.9 369660211M 369-66021-1 $1.27 1
(25) O-RING 2.4-9.5 301660230M 301-66023-0 $1.02 1
(26) CAM ROD BUSHING 3F0660310M 3F0-66031-0 $3.27 1
(27) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.43 1
(28) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 $1.50 1
(29) PUMP CASE (UPPER) 3F0650160M 3F0-65016-0 $25.33 1
(30) PUMP CASE LINER 3F0650110M 3F0-65011-0 $9.20 1
(31) WATER PIPE GROMMET (LOWER) 3F0650320M 3F0-65032-0 $2.07 1
(32) BOLT 9161E30645M 916113-0645 $2.58 4
(33) WASHER 9401030600M 940103-0600 $0.70 4
(34) SPRING WASHER 9413030600M 941303-0600 $0.84 4
(35) CLUTCH 3F0642150M 3F0-64215-0 $12.88 1
(36) CLUTCH SPRING 3F0642210M 3F0-64221-0 $1.45 1
(37) CLUTCH PUSH ROD 3F0642230M 3F0-64223-0 $5.55 1
(38) PROPELLER SHAFT 3F0642110M 3F0-64211-0 $101.29 1
(39) PROPELLER SHAFT HOUSING ASSY 3F0Q873231 3F0-Q87323-1 $37.70 1
(40) PROPELLER SHAFT HOUSING 3F0Q601011 3F0Q60101-1 $27.97 1
(41) BALL BEARING 6001 960106001M 9601-0-6001 $10.01 1
(42) OIL SEAL 12-24-8 309601110M 309-60111-0 $6.90 1
(43) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(44) BOLT 9101E35620M 910113-5620 $1.30 2
(45) BOLT 3AB600011M 3AB-60001-0 $3.05 2
(46) SHEAR PIN 4-24 309641261M 309-64126-0 $2.05 1
(47) SPLIT PIN 4-35 9515030435M 951503-0435 $1.09 1
(48) WATER PIPE S 3AB651910M 3AB-65191-0 FOR TRANSOM S $16.24 1
(48) WATER PIPE L 3AB651920M 3AB-65192-0 FOR TRANSOM L $19.10 1
(49) WATER PIPE GROMMET (UPPER) 3AB650310M 3AB-65031-0 $2.62 1
(50) PROPELLER 4.5 (PLASTIC) 3X7.4X4.3 314641030M 314-64103-0 PLASTIC / OPT 3 X 188 X 110 $30.92 1
(50) PROPELLER 6 (PLASTIC) 3X7.4X5.7 309641060M 309-64106-0 PLASTIC / OPT 3 X 188 X 145 $28.90 1
(50) PROPELLER 7 (PLASTIC) 3X7.4X7.0 3F0641010M 3F0-64101-0 PLASTIC / STD 3 X 188 X 178 $25.40 1
(50) PROPELLER ASSY (6) 3F0B645120 3F0-64102-0 ALUMINUM W/RUBBER HUB / OPT 3 X 188 X 145 $110.58 1
