8. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

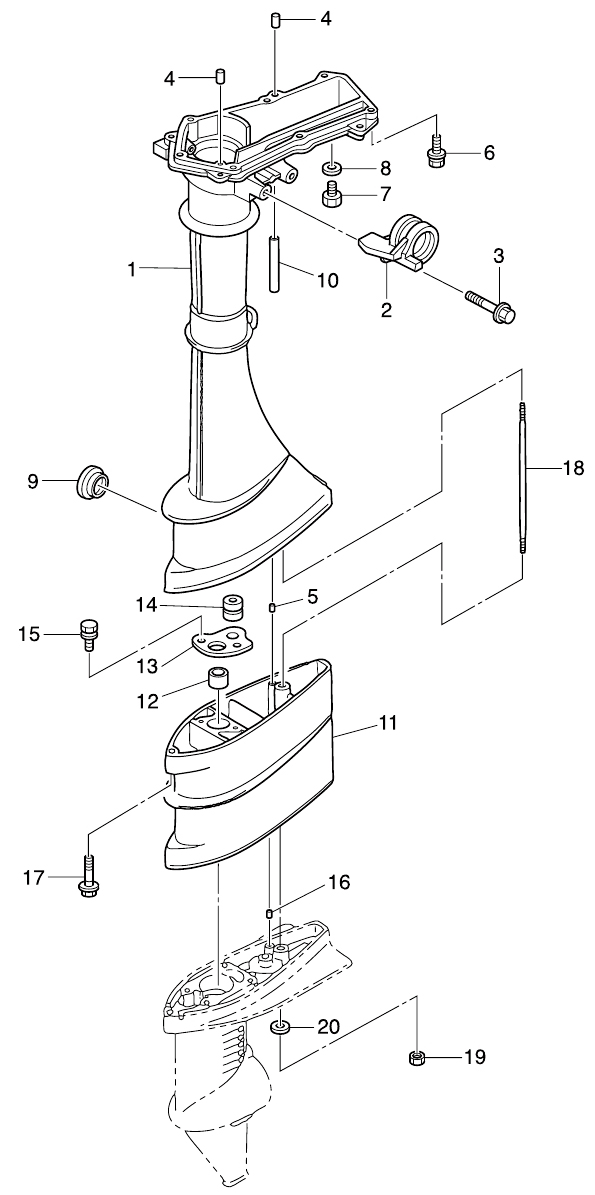

(1) DRIVE SHAFT HOUSING ASSY (S)(2) STEERING BRACKET(3) BOLT(4) DOWEL PIN 6-12(4) DOWEL PIN 6-12(5) DOWEL PIN 6-12(6) BOLT(7) BOLT(8) GASKET 8.1-15-1(9) GROMMET 29-3(10) HOSE(11) EXTENSION HOUSING(12) DRIVE SHAFT BUSHING(13) STOPPER(14) GROMMET 13-2(15) BOLT(16) DOWEL PIN 6-12(17) BOLT(18) STUD 6-171(19) NUT(20) WASHER



Parts List
2013 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING ASSY (S) 3ABQ610202 3ABQ61020-0 $272.58 1
(2) STEERING BRACKET 3ABQ620011 3ABQ62001-0 $51.53 1
(3) BOLT 9101E35835M 910113-5835 $3.28 2
(4) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(5) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 $2.58 1 Sold Out View More Details
(6) BOLT 9101E35630M 9101E3-5630 $1.15 7 Sold Out View More Details
(7) BOLT 9106E30808M 910613-0808 $2.12 1
(8) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 1
(9) GROMMET 29-3 369610160M 369-61016-0 $3.27 1
(10) RUBBER HOSE 98AB30050M 98AB-3-0050 98AB-301000 $10.72 1
(11) EXTENSION HOUSING L 3ABQ611000 3ABQ61100-0 FOR TRANSOM L $119.60 1
(12) DRIVE SHAFT BUSHING 3AB600030M 3AB-60003-0 FOR TRANSOM L $53.53 1
(13) DRIVE SHAFT BUSHING STOPPER 3AB643320M 3AB-64332-0 FOR TRANSOM L $5.29 1
(14) GROMMET 13.2 172360080M 172-36008-0 FOR TRANSOM L $2.40 1
(15) BOLT 9101E35612M 910103-5612 FOR TRANSOM L $1.07 2
(16) DOWEL PIN 6-12 3AB011110M 3AB-01111-0 FOR TRANSOM L $2.58 1 Sold Out View More Details
(17) BOLT 3AB600011M 3AB-60001-0 FOR TRANSOM L $3.05 1
(18) STUD BOLT 6-171 3F0611011M 3F0-61101-1 FOR TRANSOM L $14.95 1
(19) NUT 9301E30600M 9301E3-0600 FOR TRANSOM L $0.52 1 Sold Out View More Details
(20) WASHER 9401E30600M 9401E3-0600 FOR TRANSOM L $0.00 1 Sold Out View More Details
