24. OPTIONAL PARTS (2)

Click Here for Microfiche Usage Tip

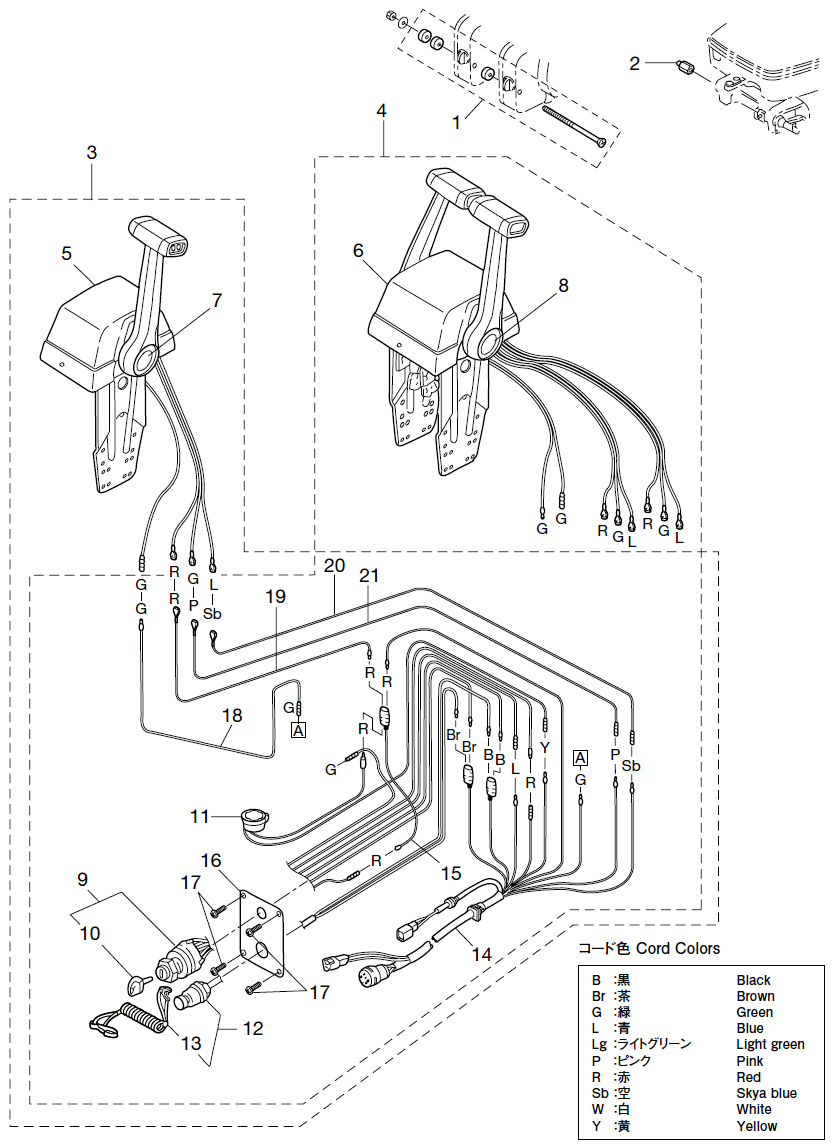

(1) TWIN REMOTE CONTROL KIT(2) DRAG LINK SPACER(3) CONTROL HEAD ASSY (TOP-SINGLE)(4) CONTROL HEAD ASSY (TOP-TWIN)(5) REMOTE CONT HEAD (TOP-SINGLE)(6) REMOTE CONT HEAD (TOP-TWIN)(7) DECAL (TOHATSU)(8) DECAL (TOHATSU)(9) MAIN SWITCH ASSY(10) MAIN SWITCH KEY NO.301(10) MAIN SWITCH KEY NO.302(10) MAIN SWITCH KEY NO.303(11) OVERHEAT BUZZER(12) STOP SWITCH ASSY(13) STOP SWITCH LANYARD ASSY(14) CORD ASSY L=6200(15) ASSIST CORD (RED) L=200(16) MAIN SWITCH PANEL(17) SCREW(18) NEUTRAL SWITCH CORD(19) PTT SWITCH CORD(20) PTT SWITCH CORD(21) PTT SWITCH CORD



Parts List
2012 :: 115 HP :: TLDI Tohatsu MD115A2 :: OPTIONAL PARTS (2)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TWIN REMOTE CONTROL BOX KIT 3A3813010M 3A3-81301-0 FOR TWIN OUTBOARDS $52.86 1
(2) DRAG LINK SPACER 353849040M 353-84904-0 $66.76 1
(3) CONTROL HEAD ASSY (TOP-SINGLE) 3T5844902M 3T5-84490-2 FOR SINGLE $389.01 1
(4) CONTROL HEAD ASSY (TOP-TWIN) 3T5845402M 3T5-84540-2 FOR TWIN $0.00 1 Sold Out View More Details
(5) REMOTE CONT HEAD (TOP-SINGLE) 3T5844801M 3T5-84480-1 FOR SINGLE $389.01 1
(6) REMOTE CONT HEAD (TOP-TWIN) 3T5845201M 3T5-84520-1 FOR TWIN $0.00 1 Sold Out View More Details
(7) DECAL (TOHATSU) 3Z5844620M 3Z5-84462-0 FOR SINGLE $0.00 1 Sold Out View More Details
(8) DECAL (TOHATSU) 3Z5844620M 3Z5-84462-0 FOR TWIN $0.00 2 Sold Out View More Details
(9) MAIN SWITCH 353760203M 353-76020-3 SINGLE X1 TWIN X2 $56.65 1
(10) MAIN SWITCH KEY (NO.301) 3F3762170M 3F3-76217-0 $17.62 0
(10) MAIN SWITCH KEY (NO.302) 3F3762180M 3F3-76218-0 $17.62 0
(10) MAIN SWITCH KEY (NO.303) 3F3762190M 3F3-76219-0 $17.62 0
(11) OVER-HEAT BUZZER 3C8761710M 3C8-76171-0 SINGLE X1 TWIN X2 $34.51 1
(12) STOP SWITCH 3A3068300M 3A3-06830-0 SINGLE X1 TWIN X2 $39.63 1
(13) STOP SWITCH LANYARD 353068210M 353-06821-0 SINGLE X1 TWIN X2 $16.48 1 Sold Out View More Details
(14) CORD ASSY L=6200 3T5761151M 3T5-76115-0 SINGLE X1 TWIN X2 $380.60 1
(15) ASSIST CORD (RED) 353725460M 353-72546-0 SINGLE X1 TWIN X2 $5.92 1
(16) MAIN SWITCH PANEL 3T5762010M 3T5-76201-0 SINGLE X1 TWIN X2 $54.33 1
(17) SCREW 9211464516M 921146-4516 SINGLE X4 TWIN X8 $0.65 4 Sold Out View More Details
(18) NEUTRAL SWITCH CORD ( GREEN 3C7844711M 3C7-84471-1 GREEN / SINGLE X1 TWIN X2 $6.30 1
(19) PTT SWITCH CORD RED 3C7844750M 3C7-84475-0 RED / SINGLE X1 TWIN X2 $3.11 1
(20) PTT SWITCH CORD SKY BLUE 3C7844760M 3C7-84476-0 SKY BLUE / SINGLE X1 TWIN X2 $3.11 1
(21) PTT SWITCH CORD PINK 3C7844770M 3C7-84477-0 PINK / SINGLE X1 TWIN X2 $3.11 1
