10. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU ASSY(2) BOLT(2) BOLT(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(6) SPACER 6.2-9-16.6(6) SPACER 6.2-9-16.6(7) STARTER SOLENOID(8) BOLT(9) FUSE 30A(10) FUSE 25A(11) FUSE 15A(12) RELAY(13) PTT SOLENOID SWITCH (A)(14) PTT SOLENOID SWITCH (B)(15) GROUND CABLE L=270(16) TERMINAL CAP(17) TERMINAL CAP(18) BATTERY CABLE L=3000(19) TERMINAL CAP(20) BAND 158(21) RECTIFIER COMPLETE(22) PLATE(22) PLATE(23) BOLT(23) BOLT(24) CORD ASSY(25) BOLT(25) BOLT(25) BOLT(25) BOLT(26) IGNITION COIL W/R-CAP(27) PLUG CAP W/RESISTANCE(28) IGNITION COIL W/R-CAP(28) IGNITION COIL W/R-CAP(28) IGNITION COIL W/R-CAP(29) PLUG CAP W/RESISTANCE(30) BOLT(30) BOLT(30) BOLT(30) BOLT(31) WATER TEMPERATURE SENSOR(32) O-RING 2-10(33) WATER TEMPERATURE SENSOR(34) O-RING 2-10(35) BRACKET ASSY(36) COVER(37) BOLT(38) WASHER 6-16-1.5(38) WASHER 6-16-1.5(39) MOUNT 8.5-14-2.5(40) RUBBER MOUNT 8.5-14-2.5(41) SPACER 6.2-9-15.7



Parts List

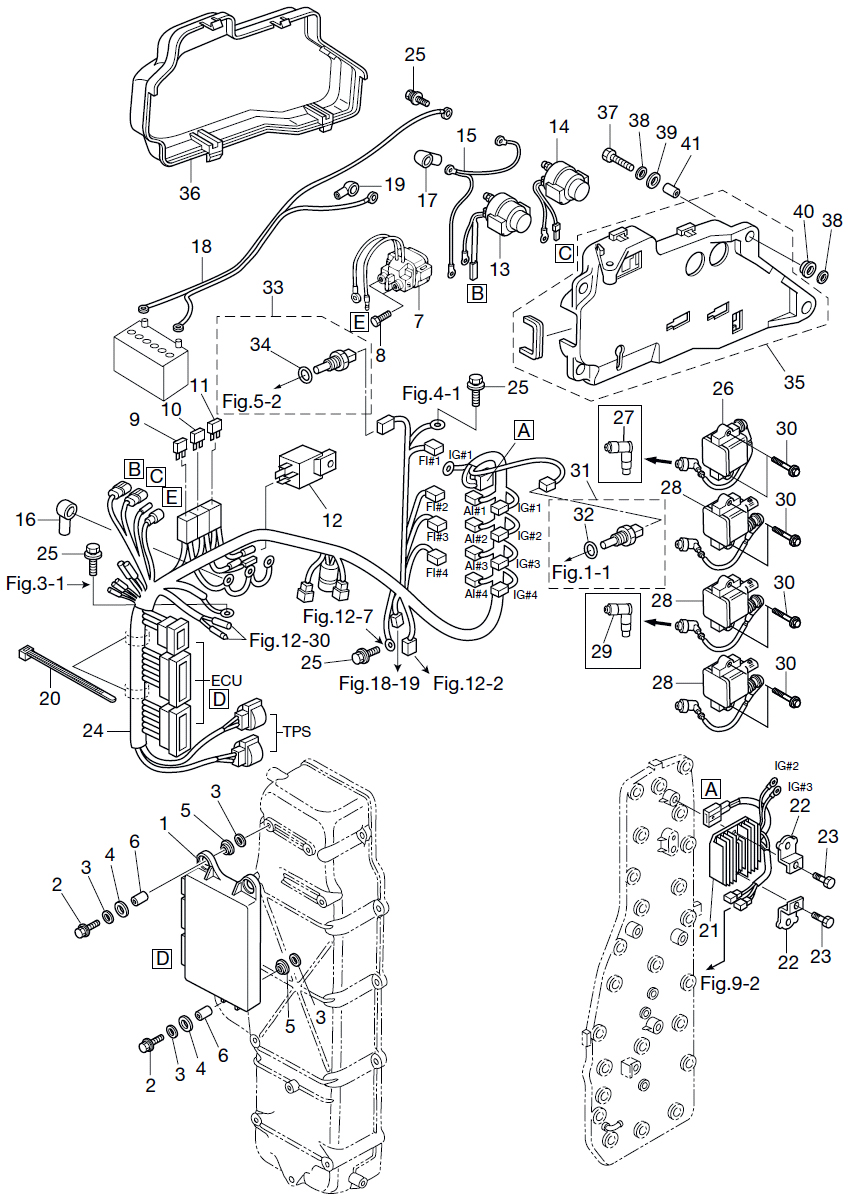

2012 :: 115 HP :: TLDI Tohatsu MD115A2 :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU ASSY 3HK064010M 3HK-06401-0 $1,873.56 1 Sold Out View More Details
(2) BOLT 9101036630M 910103-6630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(8) BOLT 9101035610M 910103-5610 $1.02 2
(9) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 2
(10) FUSE 25A 3Y9762480M 3Y9-76248-0 $1.98 2
(11) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 2
(12) RELAY 3T1063300M 3T1-06330-0 $50.37 1
(13) PTT SOLENOID SWITCH A 3AC725800M 3AC-72580-0 UP $72.11 1
(14) PTT SOLENOID SWITCH B 3AC725810M 3AC-72581-0 DN $72.11 1
(15) GROUND CABLE L=140&285 3T5761421M 3T5-76142-1 $8.60 1
(16) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(17) CAP CORD 3A3761450M 3A3-76145-0 PTT SOLENOID SWITCH $3.39 2
(18) BATTERY CABLE L=3000 3B7761202M 3B7-76120-0 $140.39 1
(19) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(20) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(21) RECTIFIER COMPLETE 3T1760602M 3T1-76060-2 $251.21 1
(22) RECTIFIER PLATE 3T1072331M 3T1-07233-1 $7.36 2 Sold Out View More Details
(23) BOLT 3AB600011M 3AB-60001-0 $3.05 2
(24) CORD ASSY 3HK761100M 3HK-76110-0 $752.01 1 Sold Out View More Details
(25) BOLT 9101035612M 910103-5612 $1.07 5
(26) IGNITION COIL # 1 3T1064700M 3T1-06470-0 #1 $122.77 1
(27) PLUG CAP (WITH RESISTANCE) 3T1069990M 3T1-06999-0 $44.37 1
(28) IGNITION COIL # 2 & # 3 & # 4 3T1064690M 3T1-06469-0 #2 #3 #4 $119.37 3
(29) PLUG CAP (WITH RESISTANCE) 3T1069990M 3T1-06999-0 $44.37 1
(30) BOLT 9101037635M 910103-7635 $2.35 8
(31) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 CYLINDER BLOCK $26.18 1
(32) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(33) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 AIR COMPRESSOR $26.18 1
(34) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(35) SOLENOID SWITCH BRACKET 3T1725930M 3T1-72593-0 RUBBER PROTECTOR $0.00 1 Sold Out View More Details
(36) BRACKET COVER 3T1069020M 3T1-06902-0 $25.74 1
(37) BOLT 9101036630M 910103-6630 $1.30 4
(38) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 8
(39) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 4
(40) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 4
(41) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
