9. MAGNETO

Click Here for Microfiche Usage Tip

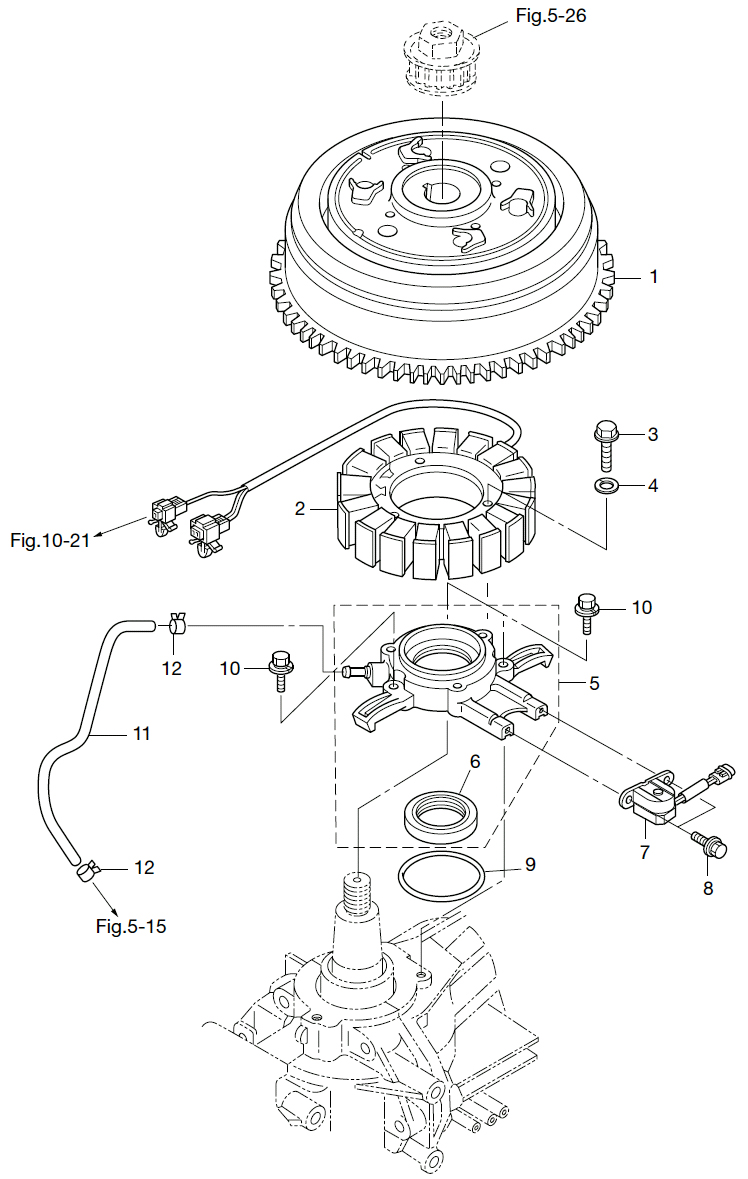

(1) FLYWHEEL W/RING GEAR(2) ALTERNATOR ASSY(3) BOLT(4) SPRING WASHER(5) COIL BRACKET ASSY(6) OIL SEAL 40-52-6(7) PICK-UP COIL(8) BOLT(9) O-RING 2.4-59.6(10) BOLT(10) BOLT(11) PIPE(12) CLIP o6.9(12) CLIP o6.9



Parts List
2012 :: 115 HP :: TLDI Tohatsu MD115A2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3T1061910M 3T1-06191-0 $891.19 1
(2) ALTERNATOR 3T1061230M 3T1-06123-0 $430.59 1
(3) BOLT 9101035635M 910103-5635 $2.10 3
(4) SPRING WASHER 9413030600M 941303-0600 $0.90 3
(5) COIL BRACKET ASSY 3T1060070M 3T1-06007-0 $55.14 1
(6) OIL SEAL 35-58-9 3T1001210M 3T1-00121-0 $36.14 1
(7) PICK-UP COIL 3T1061450M 3T1-06145-0 CRANK POSITION SENSOR $51.24 1
(8) BOLT 9101036512M 9101036512M $0.97 2
(9) O-RING 2.4-59.6 3C7014030M 121-32071-0 $6.76 1
(10) BOLT 9101035620M 910103-5620 $1.39 3 Sold Out View More Details
(11) PIPE 99AA20360M 99AA-2-0360 COMPRESSOR-COIL BRACKET / 99AA-2-1000 $14.55 1
(12) CLIP ø 6.9 3B7090520M 3B7-09052-0 $0.00 2 Sold Out View More Details
