3. AIR CHAMBER

Click Here for Microfiche Usage Tip

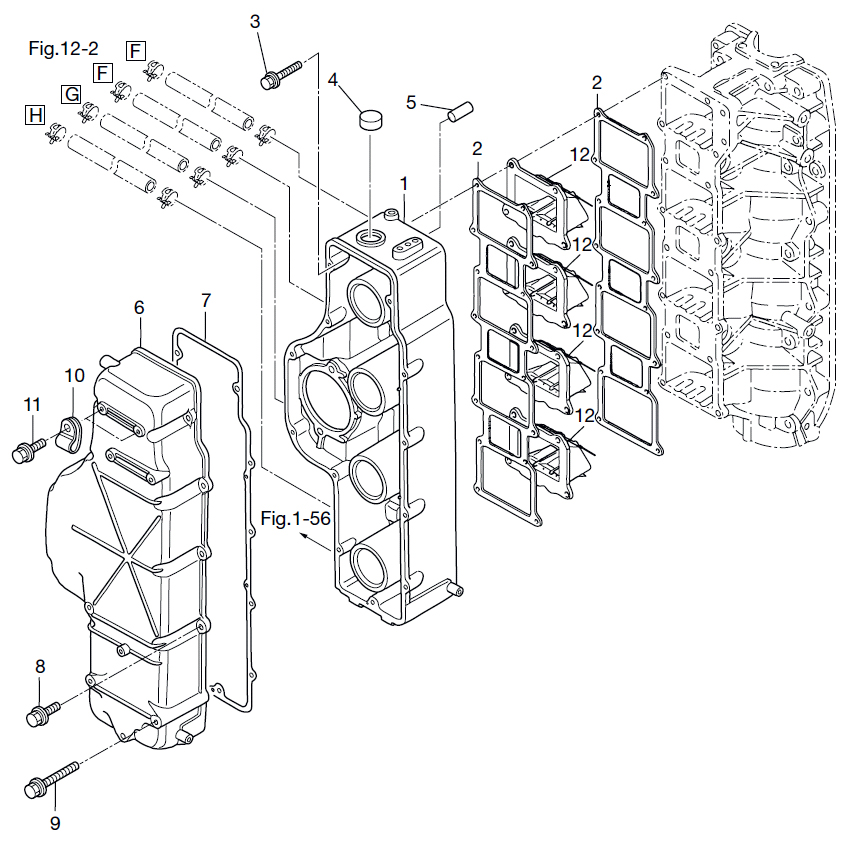

(1) AIR CHAMBER ASSY(2) INTAKE MANIFOLD GASKET(2) INTAKE MANIFOLD GASKET(3) BOLT(4) GROMMET(5) SEALING CAP(6) AIR CHAMBER COVER(7) AIR CHAMBER COVER GASKET(8) BOLT(9) BOLT(10) CLAMP 6.5-11L(11) BOLT(12) REED VALVE ASSY(12) REED VALVE ASSY(12) REED VALVE ASSY(12) REED VALVE ASSY



Parts List
2012 :: 115 HP :: TLDI Tohatsu MD115A2 :: AIR CHAMBER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER 3T1B022400 3T1B02240-0 $349.15 1 Sold Out View More Details
(2) INTAKE MANIFOLD GASKET 3C7021041M 3C7-02104-1 $45.02 2
(3) BOLT 6-35 PRE-COATED 3V1600011M 3V1-60001-1 $3.43 16
(4) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.38 1
(5) SEALING CAP 3GF011390M 3GF-01139-0 $2.83 1 Sold Out View More Details
(6) AIR CHAMBER COVER 3T1B022440 3T1B02244-0 $0.00 1 Sold Out View More Details
(7) AIR CHAMBER COVER GASKET 3T1022450M 3T1-02245-0 $30.19 1
(8) BOLT 9101035625M 910103-5625 $1.47 8
(9) BOLT 9101035665M 910103-5665 $0.00 4 Sold Out View More Details
(10) CLAMP 3P0069150M 3P0-06915-0 $3.31 2 Sold Out View More Details
(11) BOLT 9101E35612M 910103-5612 $1.07 2
(12) REED VALVE ASSY 3A3021000M 3A3-02100-0 $68.83 4
