2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

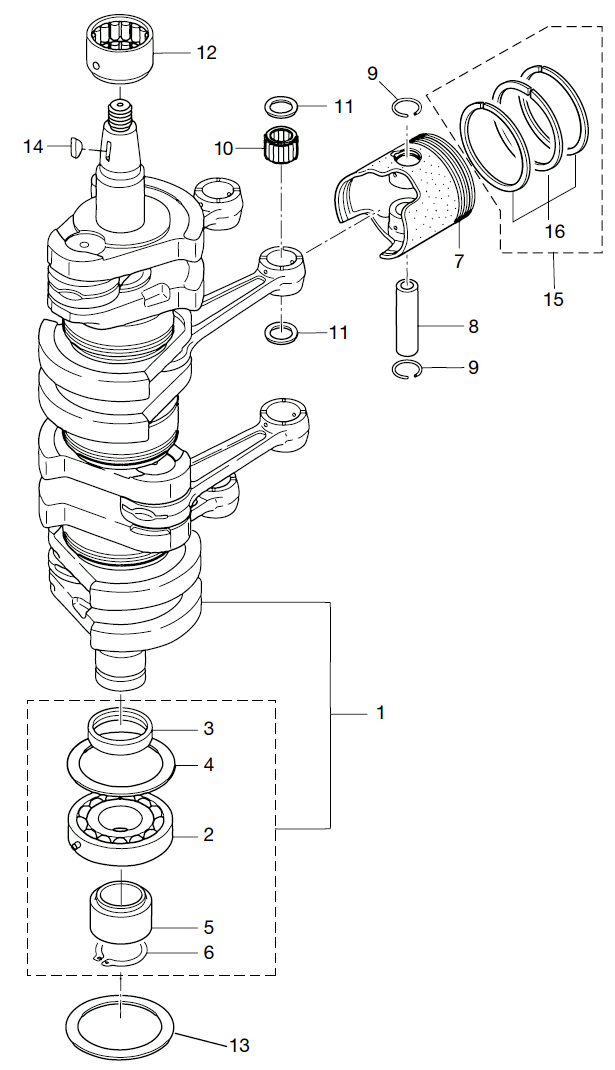

(1) CRANKSHAFT ASSY(2) MAIN BEARING 6208(3) SPACER 40-52-7(4) THRUST PLATE 66-85-2(5) SPACER 35-48.6-16(6) C-RING D=35(7) PISTON(7) PISTON (0.5 O/S)(8) PISTON PIN(9) PISTON PIN CLIP(9) PISTON PIN CLIP(10) ROLLER BEARING 23-28-28(11) SMALL END BEARING WASHER(11) SMALL END BEARING WASHER(12) MAIN BEARING(13) THRUST PLATE 66-85-2(14) KEY(15) PISTON RING SET(15) PISTON RING SET (0.5 O/S)(16) PISTON RING(16) PISTON RING (0.5 O/S)



Parts List
2012 :: 115 HP :: TLDI Tohatsu MD115A2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT ASSY 3T1000300M 3T1-00030-0 $0.00 1 Sold Out View More Details
(2) BALL BEARING 6208 3C7001180M 3C7-00118-0 $55.07 1
(3) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(4) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(5) SPACER 35-48.6-16 3T7001190M 3T7-00119-0 $0.00 1 Sold Out View More Details
(6) C-RING D=35 9451073500M 945107-3500 $0.99 1
(7) PISTON (STD) 3T1000010M 3T1-00001-0 STD $0.00 4 Sold Out View More Details
(7) PISTON (0.5MM O/S) 3T1000040M 3T1-00004-0 OPT $0.00 4 Sold Out View More Details
(8) PISTON PIN ø23 3T1000211M 3T1-00021-1 $27.89 4
(9) PISTON PIN CLIP 3T1000240M 3T1-00024-0 $1.27 8
(10) NEEDLE BEARING 23-28-28 3T1000420M 3T1-00042-0 $26.50 4
(11) SMALL END BEARING WASHER 3T1000460M 3T1-00046-0 $6.19 8
(12) MAIN BEARING (UPPER) 3C7001130M 3C7-00113-0 $91.41 1
(13) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(14) KEY MAGNETO 334001310M 334-00131-0 MAGNETO $3.39 1
(15) PISTON RING SET 3HK871230M 3HK-87123-0 STD $48.05 4
(15) PISTON RING SET (0.5 O/S) 3HK871240M 3HK-87124-0 OPT $0.00 4 Sold Out View More Details
(16) PISTON RING 1ST ( STD ) 3C7000110M 3C7-00011-0 STD $33.06 3
(16) PISTON RING 1ST ( 0.5MM O/S ) 3C7000140M 3C7-00014-0 OPT $37.45 3
