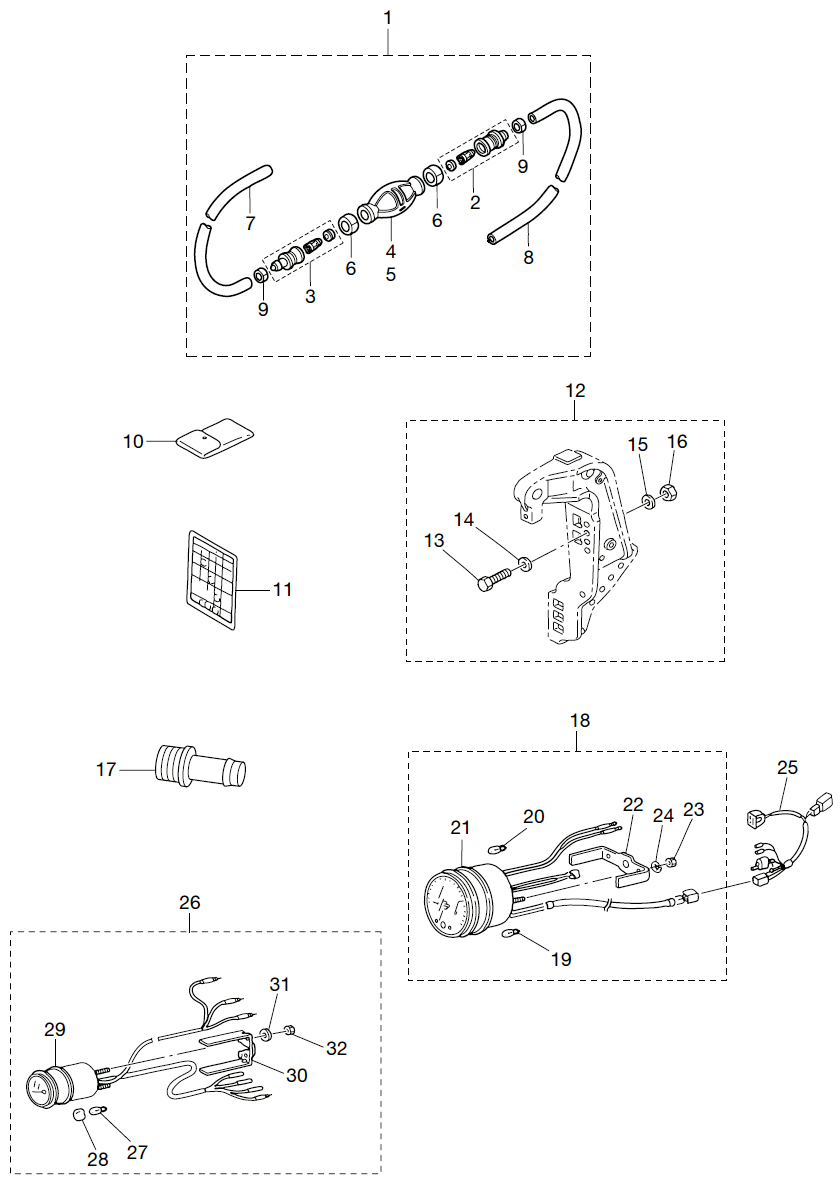

21. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) PRIMER BULB ASSY(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(5) PRIMER BULB(6) CLAMP(6) CLAMP(7) HOSE L=700(7) LOW PERMEATION HOSE L=700(8) HOSE L=1600(8) LOW PERMEATION HOSE L=1600(9) CLAMP(9) CLAMP(10) TOOL KIT(11) BUZZER CAUTION DECAL(12) RIGGING BOLT SET(13) BOLT 12-105 P1.25(14) WASHER 13-34-3(15) WASHER(16) NUT 12-P1.25(17) HOSE JOINT (WATER-WORKS)(18) TACHOMETER (BLACK)(18) TACHOMETER (WHITE)(18) TACHOMETER W/OIL LAMP(19) OIL BULB 12V-1.7W(20) METER BULB 12V-1.8W(21) METER DAMPER(22) FITTING PLATE(23) NUT(24) SPRING WASHER(25) METER LEAD WIRE L=8000(26) TRIM METER (BLACK)(26) TRIM METER (WHITE)(26) TRIM METER ASSY(27) METER BULB 12V-1.7W(28) METER BULB CAP(29) METER DAMPER(30) FITTING PLATE(31) SPRING WASHER(32) NUT



Parts List
2012 :: 115 HP :: TLDI Nissan NSD115A2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3T1702001M 3T1-70200-1 STD $87.03 1
(1) PRIMER BULB ASSY 3FF702004M 3FF-70200-4 LOW PERMEATION PARTS / FOR USA MODEL $87.03 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $9.12 1 Sold Out View More Details
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $9.38 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 STD $23.87 1
(5) PRIMER BULB 3GF702111M 3GF-70211-0 LOW PERMEATION PARTS / FOR USA MODEL $56.81 1 Sold Out View More Details
(6) CLAMP 3C7702170M 3C7-70217-0 $3.50 2
(7) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $14.38 1
(7) LOW PERMEATION HOSE L=700 3GF702411M 3GF-70241-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(8) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 X2 $14.38 1
(8) LOW PERMEATION HOSE L=1600 3GF702401M 3GF-70240-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(9) CLAMP 332702010M 332-70201-0 $2.21 2
(10) TOOL 3H6721000M 3H6-72100-0 $30.02 1
(11) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.89 2
(12) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $50.88 1
(13) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.78 4
(14) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 4
(15) WASHER 9401031200M 940103-1200 $0.53 4
(16) NUT P1.25 3C7621391M 3C7-62139-1 $1.73 4
(17) HOSE JOINT 3T1724050M 3T1-72405-0 $6.13 1
(18) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(18) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(18) TACHOMETER 3Z5726401M 3Z5-72640-1 $0.00 1 Sold Out View More Details
(19) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 $3.50 3
(20) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(21) METER DAMPER 3B7726560M 3B7-72656-0 $3.50 1
(22) FITTING PLATE 3B7726610M 3B7-72661-0 $27.10 1
(23) NUT 9302030500M 930203-0500 $0.64 2
(24) SPRING WASHER 9413030500M 941303-0500 $0.97 2
(25) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $215.66 1
(26) TRIM METER KIT 3GF725710M 3GF725710M $105.57 1
(26) TRIM METER KIT 3GL725710M 3GL725710M $105.57 1
(26) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(27) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 $4.12 1 Sold Out View More Details
(28) METER BULB CAP 3T1726530M 3T1-72653-0 $2.58 1 Sold Out View More Details
(29) METER DAMPER 3B7726550M 3B7-72655-0 $2.86 1
(30) FITTING PLATE 3T1726650M 3T1-72665-0 $13.51 1 Sold Out View More Details
(31) SPRING WASHER 9413030400M 941303-0400 $0.97 2
(32) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
