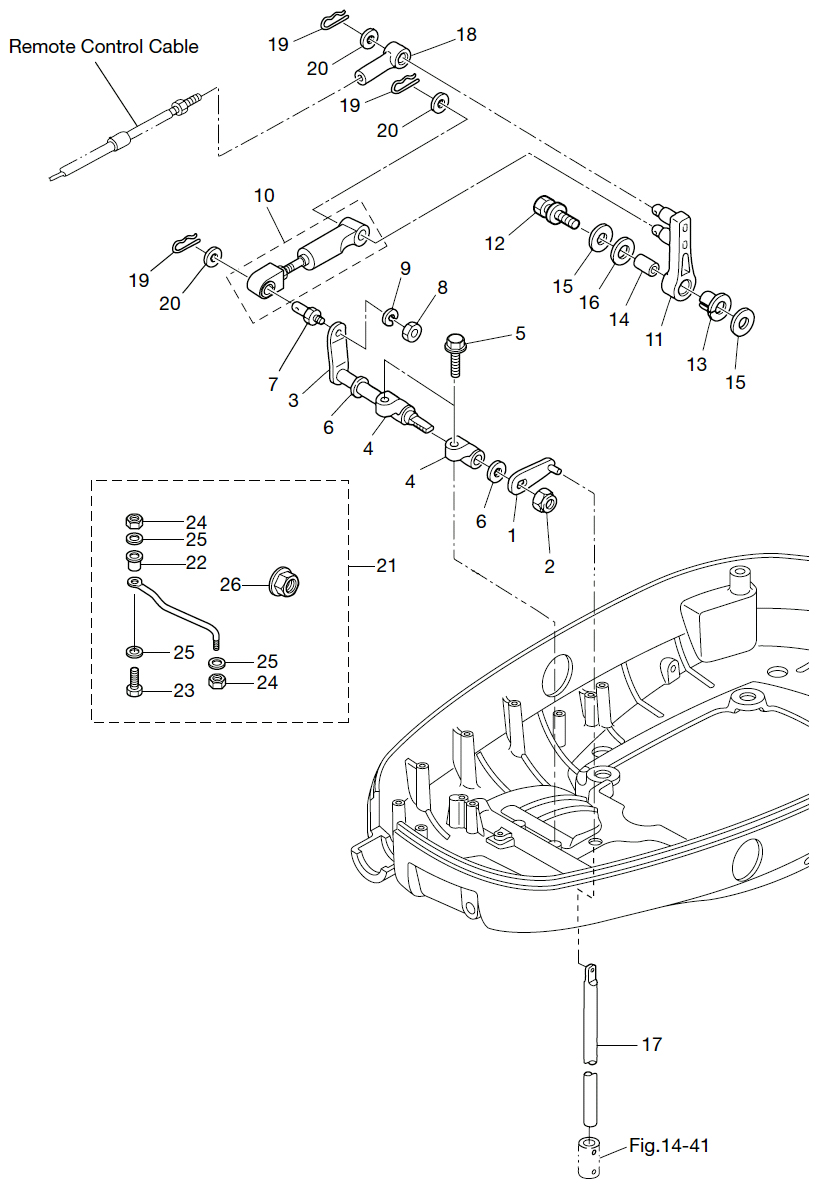

19. SHIFT

Click Here for Microfiche Usage Tip
(1) SHIFT ROD LEVER(2) NYLON NUT 10-P1.5(3) SHIFT LEVER SHAFT(4) HOLDER(4) HOLDER(5) PRE-COATED BOLT(6) WASHER 10.5-18-1.5(6) WASHER 10.5-18-1.5(7) PIN(8) NUT(9) SPRING WASHER(10) SHIFT ASSIST ASSY(11) SHIFT ARM(12) BOLT(13) BUSHING 12-14-15.5(14) COLLAR 8.4-12-17(15) WASHER 8.5-24-1.5(15) WASHER 8.5-24-1.5(16) WASHER 12.5-24-1(17) SHIFT ROD (L)(18) CABLE JOINT(19) SNAP PIN D=8(19) SNAP PIN D=8(19) SNAP PIN D=8(20) WASHER 8.5-18-1.6(20) WASHER 8.5-18-1.6(20) WASHER 8.5-18-1.6(21) DRAG LINK ASSY(22) SPACER(23) BOLT 3/8-50(24) NYLON NUT 3/8-24UNF(24) NYLON NUT 3/8-24UNF(25) WASHER 9.6-18-2(25) WASHER 9.6-18-2(25) WASHER 9.6-18-2(26) SEAL RING



Parts List
2012 :: 115 HP :: TLDI Nissan NSD115A2 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT ROD LEVER 3C7661100M 3C7-66110-0 $29.59 1
(2) NYLON NUT 9304031000M 930403-1000 $4.89 1
(3) SHIFT LEVER SHAFT 3C7662250M 3C7-66225-0 $64.01 1
(4) SHIFT LEVER SHAFT HOLDER 353661451M 353-66145-1 $5.43 2
(5) BOLT 8-25 PRE-COATED 3T1601080M 3T1-60108-0 $2.81 2 Sold Out View More Details
(6) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.97 2
(7) CABLE PIN 353837281M 353-83728-0 $9.60 1
(8) NUT 9301030600M 930113-0600 $0.90 1
(9) SPRING WASHER 9413030600M 941303-0600 $0.90 1
(10) SHIFT ASSIST ASSY 3T9661502M 3T9-66150-2 $28.04 1
(11) SHIFT ARM 3B7661222M 3B7-66122-2 $24.44 1
(12) BOLT 9101036835M 910103-6835 $2.14 1
(13) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.21 1
(14) COLLAR 8.4-12-17 3B7637321M 3B7-63732-0 $2.28 1
(15) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.98 2
(16) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.48 1
(17) SHIFT ROD 353662151M 353-66215-1 $34.48 1
(18) CABLE JOINT 3B7837151M 3B7-83715-1 $5.16 1
(19) SNAP PIN D=8 9516030800M 951603-0800 $0.75 3
(20) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.56 3
(21) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $164.98 1
(22) SPACER 3E0849140M 3E0-84914-0 $7.83 1
(23) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $12.08 1
(24) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(25) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 3
(26) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.74 1
