15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip

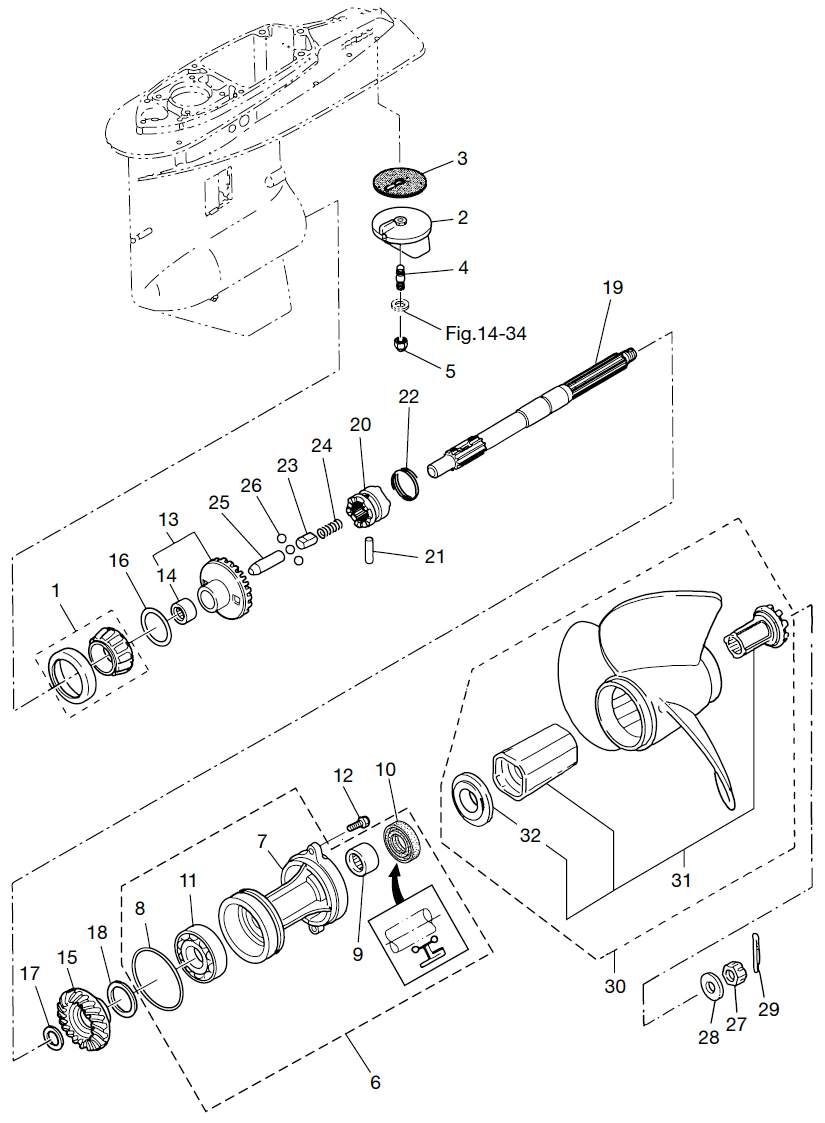

(1) TAPERED ROLLER BEARING 30209(2) TRIM TAB(3) TRIM TAB GASKET(4) STUD(5) NYLON NUT 8-P1.25(6) PROPELLER SHAFT HOUSING ASSY(7) PROPELLER SHAFT HOUSING(8) O-RING 3.1-94.4(9) ROLLER BEARING 30-40-30(10) OIL SEAL 30-50-12(11) BALL BEARING 6208(12) PRE-COATED BOLT 8-30(13) BEVEL GEAR ASSY (A)(14) ROLLER BEARING 25-32-26(15) BEVEL GEAR C(16) SHIM 47-57-0.15(16) SHIM 47-57-0.1(17) WASHER T=3.2(17) WASHER T=3.0(17) WASHER T=2.8(18) SHIM 42-50-0.15(18) SHIM 42-50-0.1(19) PROPELLER SHAFT(20) CLUTCH(21) PIN(22) SNAP(23) SPRING RETAINER L=30.5(24) SPRING(25) PUSH ROD(26) BALL(27) PROPELLER NUT(28) WASHER 17-32-3(29) SPLIT PIN 3-25(30) PROPELLER ASSY (11")(30) PROPELLER ASSY (13")(30) PROPELLER ASSY (15")(30) PROPELLER ASSY (16")(30) PROPELLER ASSY (17")(30) PROPELLER ASSY (19")(30) PROPELLER ASSY (21")(31) PROPELLER HUB KIT(32) FORWARD THRUST WASHER



Parts List
2012 :: 115 HP :: TLDI Nissan NSD115A2 :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $65.99 1
(2) TRIM TAB 3B7602171M 3B7-60217-1 $28.25 1
(3) TRIM TAB 3B7602190M 3B7-60219-0 $3.64 1 Sold Out View More Details
(4) STUD BOLT 9153030825M 915303-0825 $3.75 1
(5) NYLON NUT 8P-1.25 9304030800M 930446-0800 $2.13 1
(6) PROPELLER SHAFT HOUSING ASSY 3B7Q873231 3B7Q87323-1 $168.73 1
(7) PROPELLER SHAFT HOUSING 3B7Q601011 3B7S60101-1 $86.66 1
(8) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.86 1 Sold Out View More Details
(9) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $35.37 1
(10) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.96 1
(11) BEARING 6208 960106208M 9601-0-6208 $32.92 1
(12) PRE-COATED BOLT 8-30 3C7601082M 3C7-60108-0 $6.33 2
(13) BEVEL GEAR A 3C7640100M 3C7-64010-0 $393.95 1
(14) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $36.94 1
(15) BEVEL GEAR C 3T1640930M 3T1-64093-0 $174.00 1 Sold Out View More Details
(16) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.93 0
(16) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.50 0
(17) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 $36.46 0
(17) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 $36.46 0
(17) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 $7.74 0
(18) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.98 0 Sold Out View More Details
(18) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.93 0 Sold Out View More Details
(19) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $316.55 1 Sold Out View More Details
(20) CLUTCH 3T1642152M 3T1-64215-2 $238.46 1
(21) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.62 1
(22) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 $5.55 1
(23) SPRING RETAINER L=30.5 3T1642220M 3T1-64222-0 $11.78 1
(24) CLUTCH SPRING 346642210M 346-64221-0 $1.71 1
(25) PUSH ROD 3T1642230M 3T1-64223-0 $10.79 1
(26) BALL 3T1642240M 3T1-64224-0 $1.36 3
(27) PROPELLER NUT 353641210M 353-64121-0 $16.51 1
(28) WASHER 17-32-3 345641240M 345-64124-0 $3.62 1
(29) SPLIT PIN 3-25 9515030325M 951503-0325 $0.92 1
(30) PROPELLER ASSY (11) 3T1B645230 3T1B64523-0 OPT 3 X 355 X 279 $152.33 1
(30) PROPELLER ASSY (13) 3T1B645270 3T1B64527-0 OPT 3 X 355 X 330 $152.33 1
(30) PROPELLER ASSY (15) 3T1B645320 3T1B64532-0 OPT 3 X 349 X 381 $152.33 1
(30) PROPELLER ASSY (16) 3T1B645340 3T1B64534-0 OPT 3 X 336 X 406 $0.00 1 Sold Out View More Details
(30) PROPELLER ASSY (17) 3T1B645360 3T1B64536-0 OPT 3 X 336 X 432 $152.33 1
(30) PROPELLER ASSY (19) 3T1B645410 3T1B64541-0 OPT 3 X 330 X 483 $0.00 1 Sold Out View More Details
(30) PROPELLER ASSY (21) 3T1B645450 3T1B645450 OPT 3 X 324 X 533 $0.00 1 Sold Out View More Details
(31) PROPELLER HUB KIT 3T1642380M 3E0-64238-0 OPT $124.96 1
(32) FORWARD THRUST WASHER 3E0642350M 3E0-64235-0 OPT $37.90 1 Sold Out View More Details
