23. RIGGING KIT

Click Here for Microfiche Usage Tip

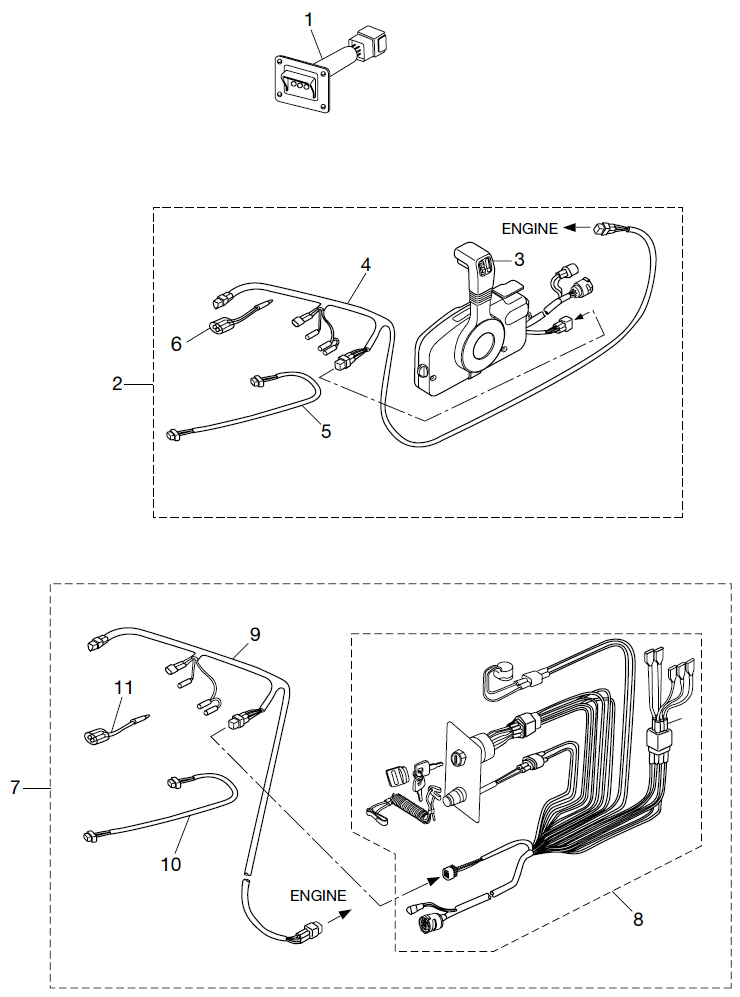

(1) PILOT LAMP ASSY(2) PRE-RIGGING KIT(3) REMOTE CONTROL HEAD ASSY - TOHATSU(3) REMOTE CONTROL HEAD ASSY - NISSAN(4) METER LEAD WIRE L=8000(5) EXTENSION CORD (TRIM SENSOR) L=6000(6) ASSIST CORD (BLK) L=200(7) PRE-RIGGING KIT(8) RIGGING CORD KIT(9) METER LEAD WIRE L=8000(10) EXTENSION CORD (TRIM SENSOR) L=6000(11) ASSIST CORD (BLK) L=200



Parts List
2012 :: 90 HP :: TLDI Nissan NSD90C2 :: RIGGING KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) WARNING LAMP 3T5710400M 3T5-71040-0 $81.66 1 Sold Out View More Details
(2) PRE-RIGGING KIT 3GLQ845501 3GLQ84550-1 WITH REMOTE CONTROL / WITHOUT METER $490.66 1
(3) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 RC5F / TOHATSU $490.66 1
(3) REMOTE CONTROL HEAD ASSY (RC5F) 3GHQ845000 3U5Q84500-1 NISSAN $490.66 1
(4) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $215.66 1
(5) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(6) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
(7) PRE-RIGGING KIT 3GM845501M 3GM-84550-0 WITHOUT REMOTE CONTROL & METER $707.37 1
(8) RIGGING CORD KIT 3GF845600M 3GF-84560-0 WITH PANEL MAIN SWITCH & OVER HEAT BUZZER $0.00 1 Sold Out View More Details
(9) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $215.66 1
(10) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(11) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
