20. ACCESSORIES

Click Here for Microfiche Usage Tip

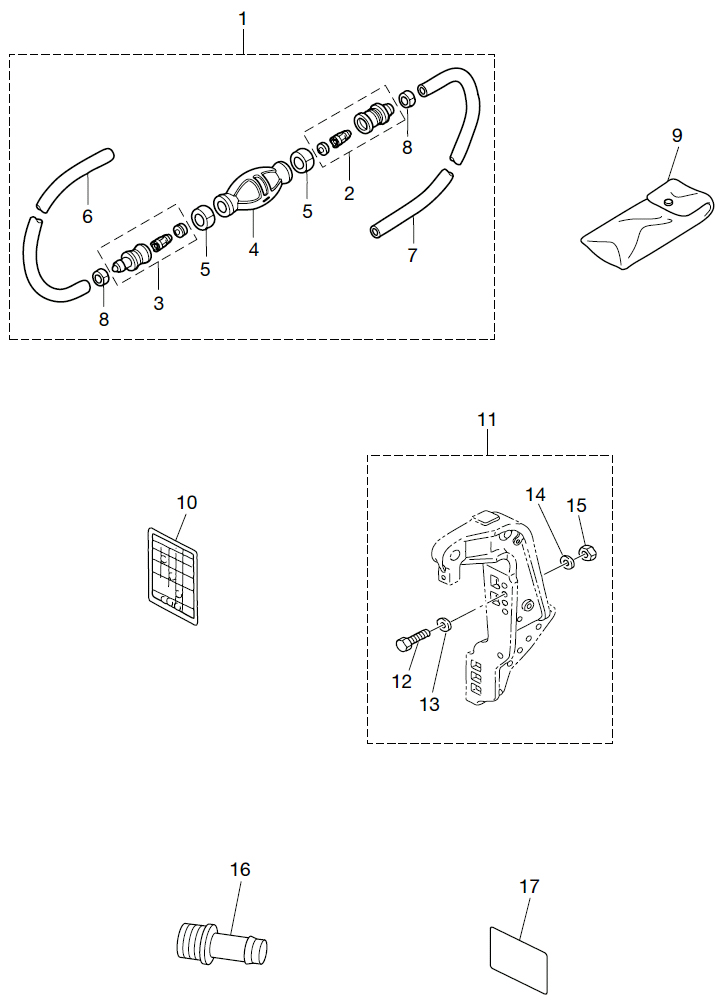

(1) PRIMER BULB ASSY(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(4) PRIMER BULB(5) CLAMP(5) CLAMP(6) HOSE(6) LOW PERMEATION HOSE L=700(7) HOSE(7) LOW PERMEATION HOSE L=1600(8) CLAMP(8) CLAMP(9) TOOL KIT(10) BUZZER CAUTION DECAL(11) RIGGING BOLT SET(12) BOLT 12-105 P1.25(13) WASHER 13-34-3(14) WASHER(15) NUT 12-P1.25(16) HOSE JOINT (WATER-WORKS)(17) OIL CAUTION DECAL(17) OIL CAUTION DECAL



Parts List
2012 :: 90 HP :: TLDI Nissan NSD90C2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3T1702001M 3T1-70200-1 STD $81.34 1
(1) PRIMER BULB ASSY 3FF702004M 3FF-70200-4 LOW PERMEATION PARTS / FOR USA MODEL $81.34 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 STD $22.31 1
(4) PRIMER BULB 3GF702111M 3GF-70211-0 LOW PERMEATION PARTS / FOR USA MODEL $53.09 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $13.44 1
(6) LOW PERMEATION HOSE L=700 3GF702411M 3GF-70241-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(7) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 X2 $13.44 1
(7) LOW PERMEATION HOSE L=1600 3GF702401M 3GF-70240-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(8) CLAMP 332702010M 332-70201-0 $2.07 2
(9) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(10) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(11) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(12) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(13) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(14) WASHER 9401031200M 940103-1200 $0.51 4
(15) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(16) HOSE JOINT 3T1724050M 3T1-72405-0 STD $5.73 1
(17) LABEL OIL CAUTION (D) 3B7720420M 3B7-72042-0 FOR DOMESTIC MARKET $0.00 1 Sold Out View More Details
(17) LABEL OIL CAUTION (X) 3B7720430M 3B7-72043-0 FOR EXPORT MARKET $1.76 1 Sold Out View More Details
