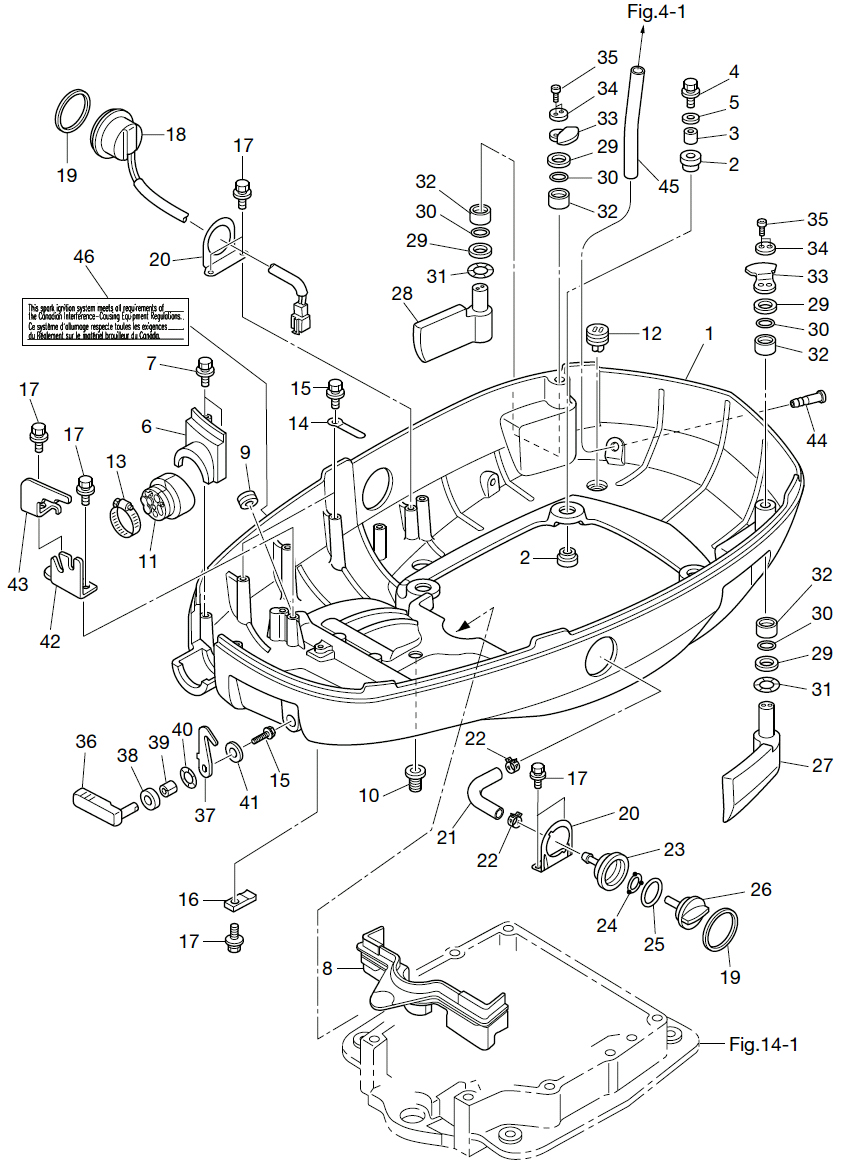

17. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(3) SPACER 8.4-12-17(4) BOLT(5) WASHER 8.5-24-1.5(6) CLAMP(7) BOLT(8) GROMMET(9) GROMMET(10) GROMMET 17-3(11) GROMMET(12) GROMMET(13) CLAMP 60(14) CLAMP 6.5-67P(15) BOLT(15) BOLT(16) CLAMP(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(18) PTT SWITCH ASSY(19) GASKET(19) GASKET(20) PTT SWITCH ASSY BRACKET(20) PTT SWITCH ASSY BRACKET(21) FLUSHING HOSE(22) CLIP o17.8(22) CLIP o17.8(23) FLUSHING CONNECTOR(24) SEAL RING(25) O-RING 3.1-24.4(26) FLUSHING CONNECTOR CAP(27) HOOK LEVER ASSY (LEFT)(28) HOOK LEVER ASSY (RIGHT)(29) WASHER 18.5-30-1(29) WASHER 18.5-30-1(29) WASHER 18.5-30-1(29) WASHER 18.5-30-1(30) O-RING o3.5-18(30) O-RING o3.5-18(30) O-RING o3.5-18(30) O-RING o3.5-18(31) WAVE WASHER(31) WAVE WASHER(32) BUSHING 18-24-19(32) BUSHING 18-24-19(32) BUSHING 18-24-19(32) BUSHING 18-24-19(33) COVER HOOK(33) COVER HOOK(34) WASHER(34) WASHER(35) BOLT(35) BOLT(36) HOOK LEVER(37) COVER HOOK(38) SEAL RING(39) HOOK LEVER BUSHING 14-16-1.8(40) WAVE WASHER D=14(41) WASHER 6-16-1.5(42) CABLE CLIP(43) CABLE CLIP(44) NIPPLE(45) HOSE(46) INTERFERENCE DECAL



Parts List
2012 :: 90 HP :: TLDI Nissan NSD90C2 :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3T1Q671002 3T1Q67100-2 MOTOR COVER $2,634.89 1
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 $1.61 8
(3) SPACER 8.4-12-17 3C7671141M 3C7-67114-1 $2.31 4
(4) BOLT 9101E30835M 9101E3-0835 $1.67 4
(5) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 4
(6) CLAMP 3KVQ761180 3KVQ76118-0 $32.61 1
(7) BOLT 9101035625M 910103-5625 $1.47 2
(8) BOTTOM COWL GROMMET A 3C7671640M 3C7-67164-0 $48.31 1
(9) POWER TRIM & TILT CORD GROMMET 3C7771560M 3C7-77156-0 $2.68 1
(10) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(11) GROMMET 3T1761161M 3T1-76116-1 $17.66 1
(12) GROMMET 3T1671610M 3T1-67161-0 $4.78 4
(13) CLAMP 60 3R0024260M 3R0-02426-0 $3.54 1
(14) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 2
(15) BOLT 9101035612M 910103-5612 CLAMP CABLE CLIP / FRONT HOOK $1.07 4
(16) POWER TRIM & TILT CORD CLAMP 3C7725770M 3C7-72577-0 $0.00 1 Sold Out View More Details
(17) BOLT 9101035616M 910103-5616 PTT CLAMP CABLE CLIP PTT SW BRACKET $1.15 7
(18) PTT SWITCH 3AC726150M 3AC-72615-0 $61.81 1
(19) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 $3.27 2
(20) PTT SWITCH BRACKET 3T1726170M 3T1-72617-0 $0.00 2 Sold Out View More Details
(21) FLUSHING HOSE 3FW724100M 3FW-72410-0 $14.18 1
(22) CLIP ø17.8 3T1077371M 3T1-07737-1 $2.37 2
(23) FLUSHING CONNECTOR 3T1724030M 3T1-72403-0 $9.85 1
(24) SEAL RING 3T1671470M 3T1-67147-0 $6.76 1
(25) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(26) FLUSHING CONNECTOR CAP 3T1724040M 3T1-72404-0 $10.98 1
(27) HOOK LEVER (LEFT) 3T1676800M 3T1-67680-0 $0.00 1 Sold Out View More Details
(28) HOOK LEVER (RIGHT) 3T1676810M 3T1-67681-0 $0.00 1 Sold Out View More Details
(29) WASHER 3T1637310M 3T1-63731-0 $1.27 4 Sold Out View More Details
(30) O-RING 4 3.5-18 3T1624350M 3T1-62435-0 $1.21 4 Sold Out View More Details
(31) WAVE WASHER 3T1631090M 3T1-63109-0 $1.27 2 Sold Out View More Details
(32) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 4
(33) COVER HOOK 3T1671420M 3T1-67142-0 $36.81 2
(34) WASHER 3T1671460M 3T1-67146-0 $2.31 2 Sold Out View More Details
(35) BOLT 9102030520M 910203-0520 HEXAGON CAP BOLT $0.00 4 Sold Out View More Details
(36) HOOK LEVER 3R3Q671410 3R3Q67141-0 $15.25 1
(37) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(38) SEAL RING 338671470M 338-67147-0 $1.85 1
(39) HOOK LEVER BUSHING 14-16-1.8 332671051M 332-67105-1 $2.07 1
(40) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(41) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(42) CABLE CLIP 3FW837340M 3FW-83734-0 $9.84 1
(43) CABLE CLIP 3FW837350M 3FW-83735-0 $7.55 1
(44) WATER NIPPLE 3T1011380M 3T1-01138-0 $2.94 1
(45) HOSE 98AB50180M 98AB-50-180 98AB-501000 $11.41 1
(46) INTERFERENCE DECAL 3C7720300M 3C7-72030-0 $0.00 1 Sold Out View More Details
