9. MAGNETO

Click Here for Microfiche Usage Tip

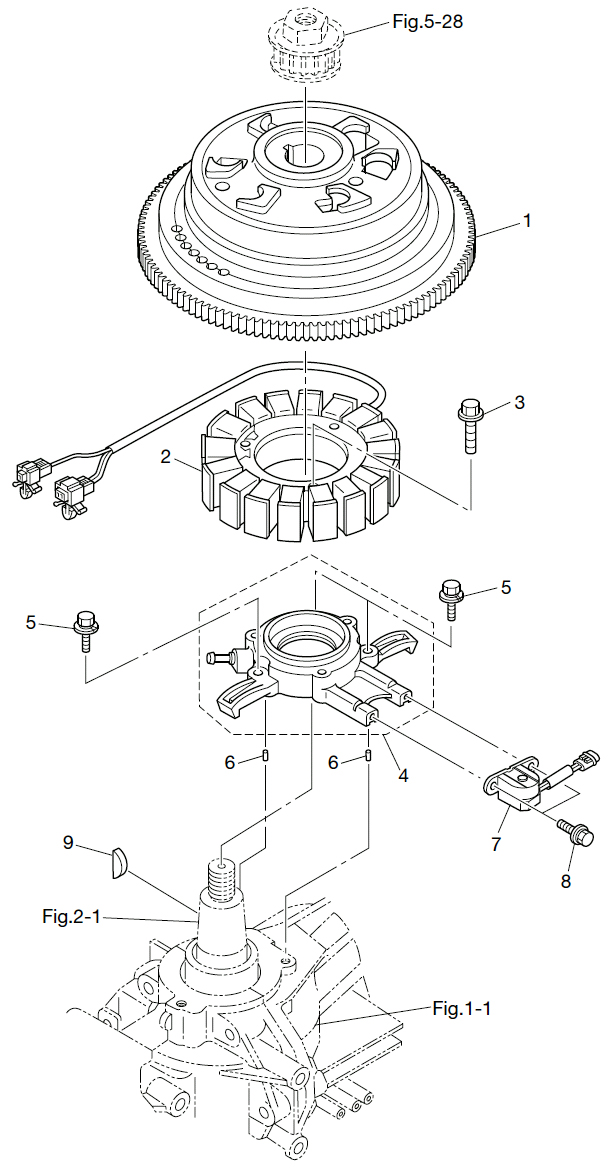

(1) FLYWHEEL W/GEAR(2) ALTERNATOR ASSY(3) BOLT(4) COIL BRACKET(5) BOLT(5) BOLT(6) DOWEL PIN 6-12(6) DOWEL PIN 6-12(7) PICK-UP COIL(8) BOLT(9) KEY



Parts List
2012 :: 90 HP :: TLDI Nissan NSD90C2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL W/GEAR 3FW060910M 3FW-06091-0 ZF916 $0.00 1 Sold Out View More Details
(2) ALTERNATOR ASSY 3FW060230M 3FW-06023-0 $410.27 1 Sold Out View More Details
(3) BOLT 9101035630M 910113-5630 $1.22 3 Sold Out View More Details
(4) COIL BRACKET 3FW060080M 3FW-06008-0 $33.96 1
(5) BOLT 9101035630M 910113-5630 $1.22 4 Sold Out View More Details
(6) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 2
(7) PICK-UP COIL 3T5061450M 3T5-06145-0 $58.63 1
(8) BOLT 9101035512M 9101E3-5512 $0.00 2 Sold Out View More Details
(9) KEY MAGNETO 334001310M 334-00131-0 MAGNETO $3.62 1
