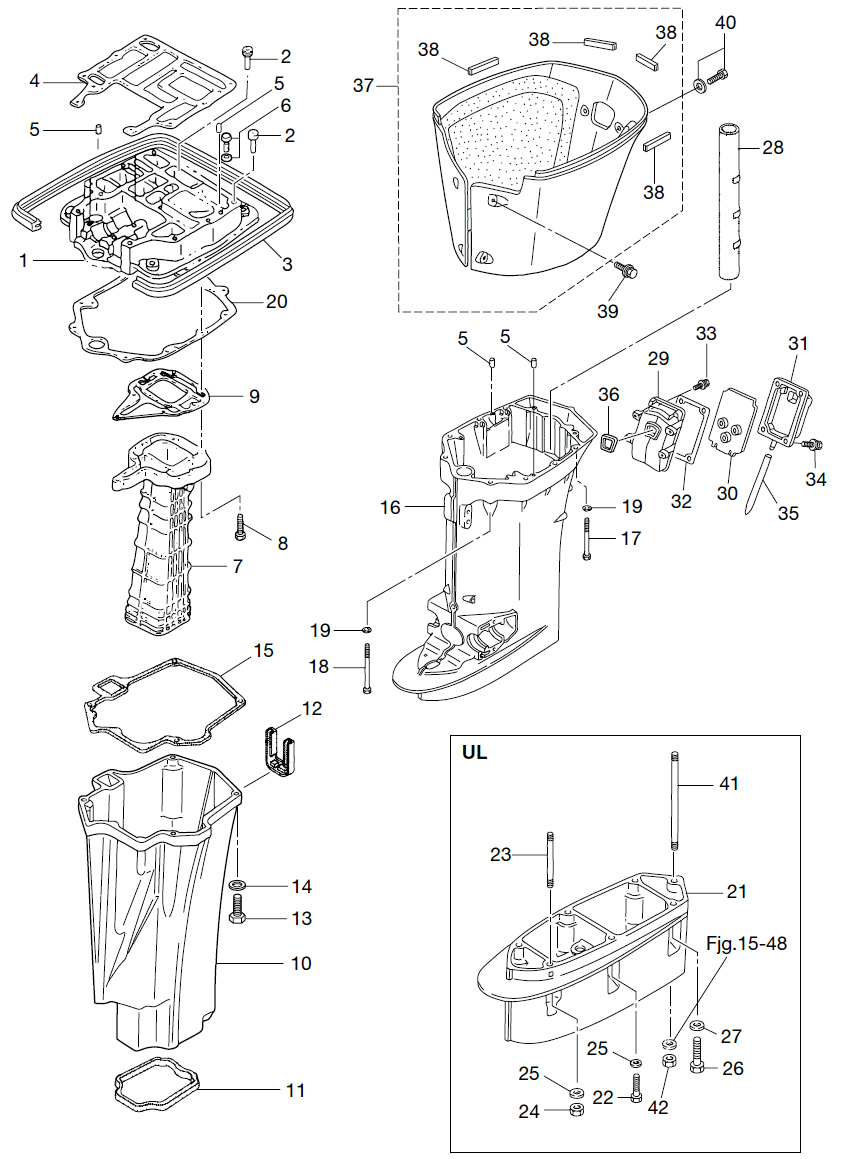

14. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) ENGINE BASEMENT(2) DRAIN PLUG (ENGINE BASEMENT)(2) DRAIN PLUG (ENGINE BASEMENT)(3) ENGINE BASEMENT SEAL L=690(4) ENGINE BASEMENT GASKET(5) DOWEL PIN 6-12(5) DOWEL PIN 6-12(5) DOWEL PIN 6-12(5) DOWEL PIN 6-12(6) BOLT(7) EXHAUST PIPE(8) BOLT 6-35(9) EXHAUST PIPE GASKET(10) EXHAUST HOUSING(11) GROMMET(12) IDLE EXHAUST PORT GROMMET(13) BOLT(14) WASHER(15) EXHAUST HOUSING GASKET(16) DRIVE SHAFT HOUSING (L)(17) BOLT 8-105(18) BOLT 8-115(19) WASHER(19) WASHER(20) DRIVE SHAFT HOUSING GASKET(21) EXTENSION HOUSING(22) BOLT 8-35(23) STUD(24) NUT(25) WASHER(25) WASHER(26) BOLT 10-40(27) WASHER(28) REVERSE GAS PASSAGE PIPE(29) IDLE EXHAUST PASSAGE(30) IDLE EXH PASSAGE SEPARATION(31) IDLE EXH PASSAGE COVER ASSY(32) GASKET(33) BOLT(34) BOLT(35) WATER OUTLET HOSE(36) GROMMET(37) APRON ASSY(38) SEAL(38) SEAL(38) SEAL(38) SEAL(39) BOLT(40) BOLT(41) STUD 10-165(42) NUT 10-P1.25



Parts List
2012 :: 75 HP :: TLDI Tohatsu MD75C2 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE BASEMENT 3T9Q013011 3T9Q01301-0 $363.61 1 Sold Out View More Details
(2) ENGINE BASEMENT DRAIN PLUG B 3B7671790M 3B7-67179-0 $1.44 2
(3) ENGINE BASEMENT SEAL 3B7671160M 3B7-67116-0 $14.45 1
(4) ENGINE BASEMENT GASKET 3B7013034M 3B7013032M $30.62 1
(5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 4
(6) BOLT 9101035635M 910103-5635 $2.10 2
(7) EXHAUST PIPE 3B7023110M 3B7-02311-0 $75.77 1
(8) BOLT 6-35 PRE-COATED 3V1600011M 3V1-60001-1 $3.68 7
(9) EXHAUST PIPE GASKET 3B7023122M 3B7023120M $6.47 1
(10) EXHAUST HOUSING 3D8611800M 3D8-61180-0 $129.40 1 Sold Out View More Details
(11) GROMMET 3B7611821M 3B7-61182-0 $10.82 1
(12) IDLE EXHAUST PORT GROMMET 3B7612070M 3B7-61207-0 $9.73 1
(13) BOLT 9101E30830M 9101E3-0830 $1.79 4
(14) WASHER 9402E30800M 9402E3-0800 $1.20 4
(15) EXHAUST HOUSING GASKET 3B7611812M 3B7611812M $16.61 1 Sold Out View More Details
(16) DRIVE SHAFT HOUSING (L) 3FWQ611920 3FWQ61192-0 $0.00 1 Sold Out View More Details
(17) BOLT 8-105 3B7610173M 3B7-61017-2 $5.16 6
(18) BOLT 8-115 3B7610182M 3B7-61018-2 $4.93 2 Sold Out View More Details
(19) WASHER 9402E30800M 9402E3-0800 $1.20 8
(20) DRIVE SHAFT HOUSING GASKET 3B7610122M 3B7-61012-0 $13.34 1
(21) EXTENSION HOUSING UL 3B7Q611100 3B7Q61110-0 FOR TRANSOM UL $255.19 1 Sold Out View More Details
(22) BOLT 8-35 3T1600011M 916189-0835 FOR TRANSOM UL $5.71 3
(23) STUD 9153E30825M 915313-0825 FOR TRANSOM UL $3.75 1
(24) NUT 9301030800M 930103-0800 FOR TRANSOM UL $2.13 1
(25) WASHER 9402E30800M 9402E3-0800 FOR TRANSOM UL $1.20 4
(26) BOLT 10-40 3B7600015M 3B7-60001-2 FOR TRANSOM UL $8.91 2
(27) WASHER 9402E31000M 940213-1000 FOR TRANSOM UL $1.11 2
(28) REVERSE GAS PASSAGE PIPE 3B7611860M 3B7-61186-0 $0.00 1 Sold Out View More Details
(29) IDLE EXHAUST PASSAGE 3T1Q612410 3T1Q61241-0 $0.00 1 Sold Out View More Details
(30) IDLE EXHAUST PASSAGE SEPARATION 3T1612420M 3T1-61242-0 $18.08 1 Sold Out View More Details
(31) IDLE EXHAUST PASSAGE COVER 3T1Q612450 3T1Q61245-0 $59.90 1 Sold Out View More Details
(32) GASKET 3T1612440M 3T1-61244-0 $9.41 1 Sold Out View More Details
(33) BOLT 9101E35620M 910113-5620 $1.39 4
(34) BOLT 9101E35635M 910114-5635 $2.10 4
(35) WATER OUTLET HOSE 3T1610970M 3T1-61097-0 $3.87 1 Sold Out View More Details
(36) APRON GROMMET 3T1612120M 3T1-61212-0 $15.39 1
(37) APRON ASSY 3T1Q612251 3T1Q61225-1 $0.00 1 Sold Out View More Details
(38) APRON SEAL 3T1612130M 3T1-61213-0 $1.59 4
(39) BOLT 9101E35612M 910103-5612 $1.15 4
(40) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.22 2
(41) STUD 10-165 3B7611121M 3B7-61112-1 FOR TRANSOM UL $19.95 1
(42) NUT 10-P1.25 3B7611140M 3B7-61114-0 FOR TRANSOM UL $2.21 1
